Danfoss 1G32FLB32

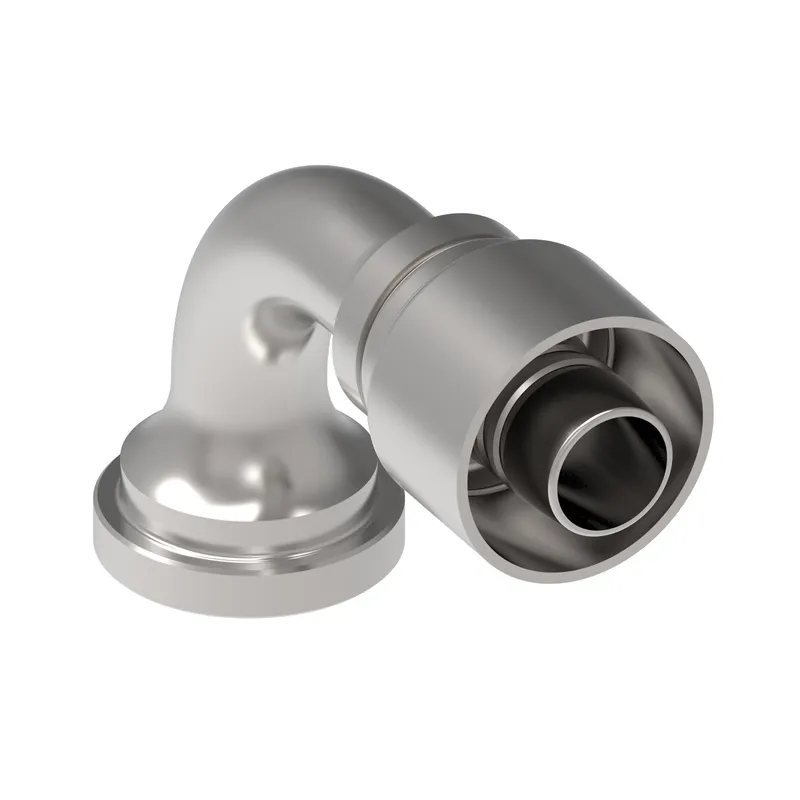

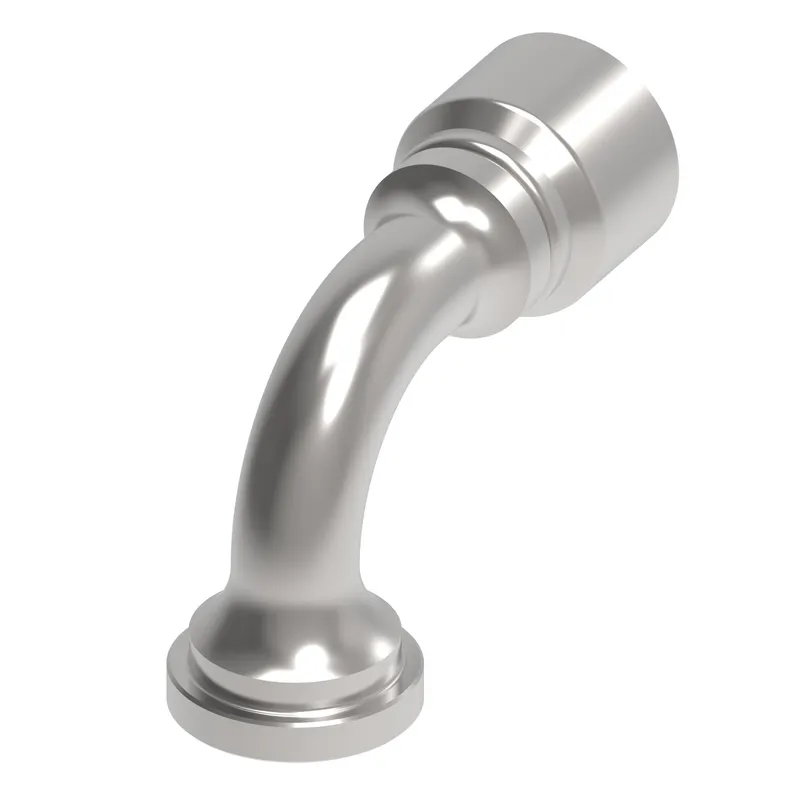

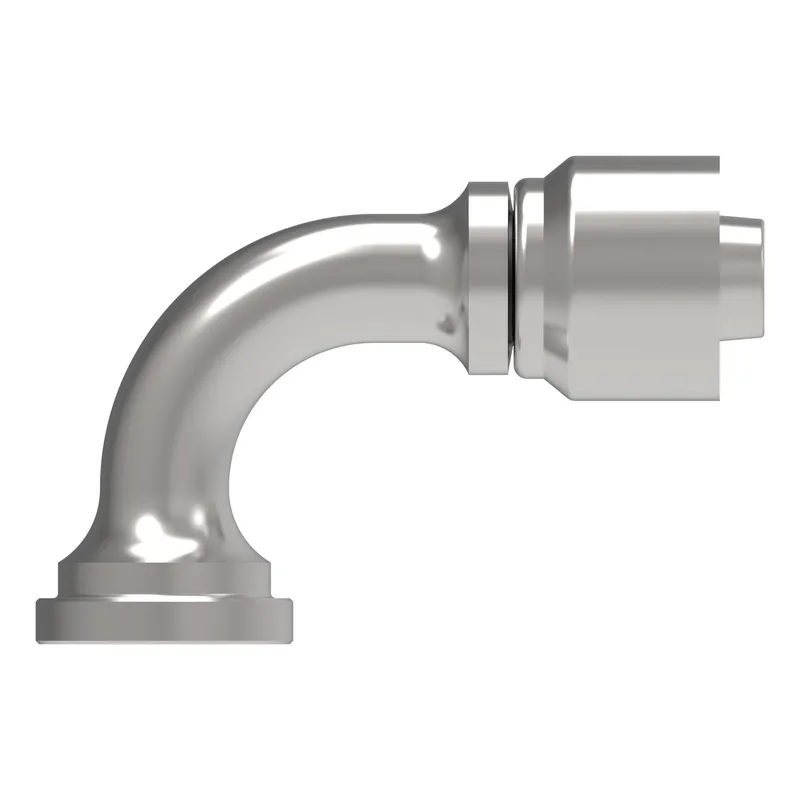

HOSE FTG, 1G/32, C61/32, CS, 90D

MPN: 1G32FLB32
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G32FLB32?

Danfoss HOSE FTG, 1G/32, C61/32, CS, 90D, manufacturer part number 1G32FLB32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	7.540
A dimension MM	191.600
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Construction Style	Crimp
Drop dimension IN	4.500
Drop dimension MM	114.30
End size 1	-32
End Type 1	Split flange code 61
Finish plating	Zinc plating
Hose cut off factor IN	5.410
Hose cut off factor MM	137.500
Hose size	-32
Inside diameter IN	1.750
Inside diameter MM	44.400
Product height in	5.870
Product height mm	149.098
Product length in	8.940
Product length mm	227.076
Product material	Carbon steel
Product width in	2.810
Product width mm	71.374
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working pressure max BAR	206.00
Working pressure max PSI	3000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
