Danfoss 1F00445-2020-S

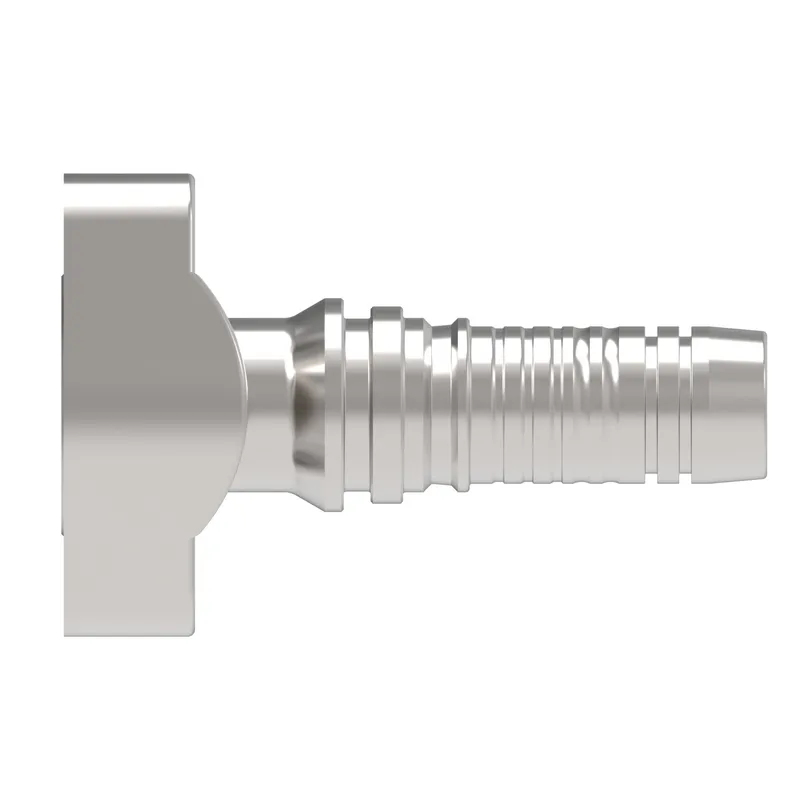

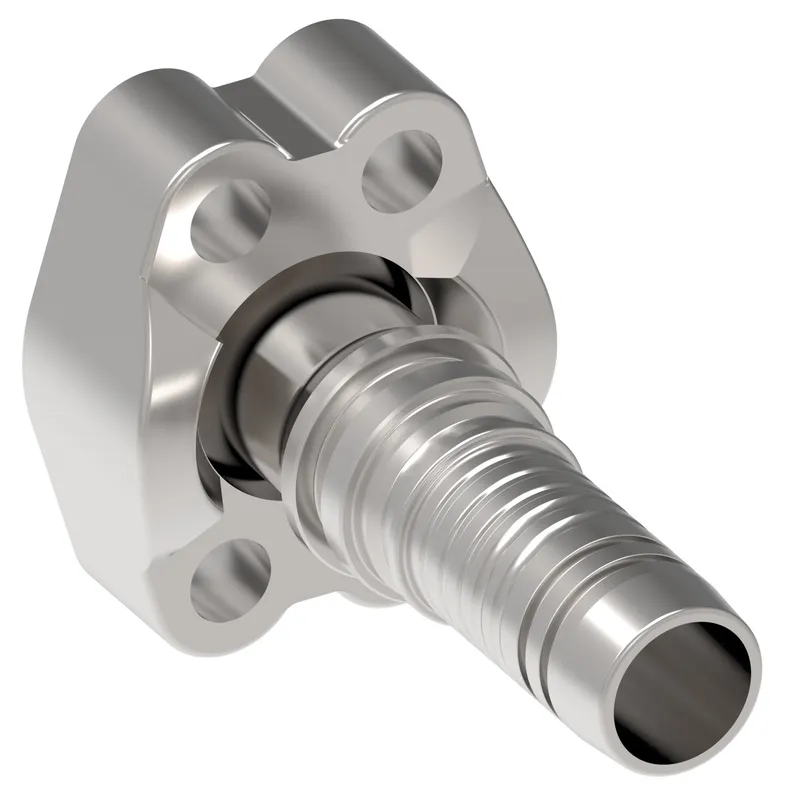

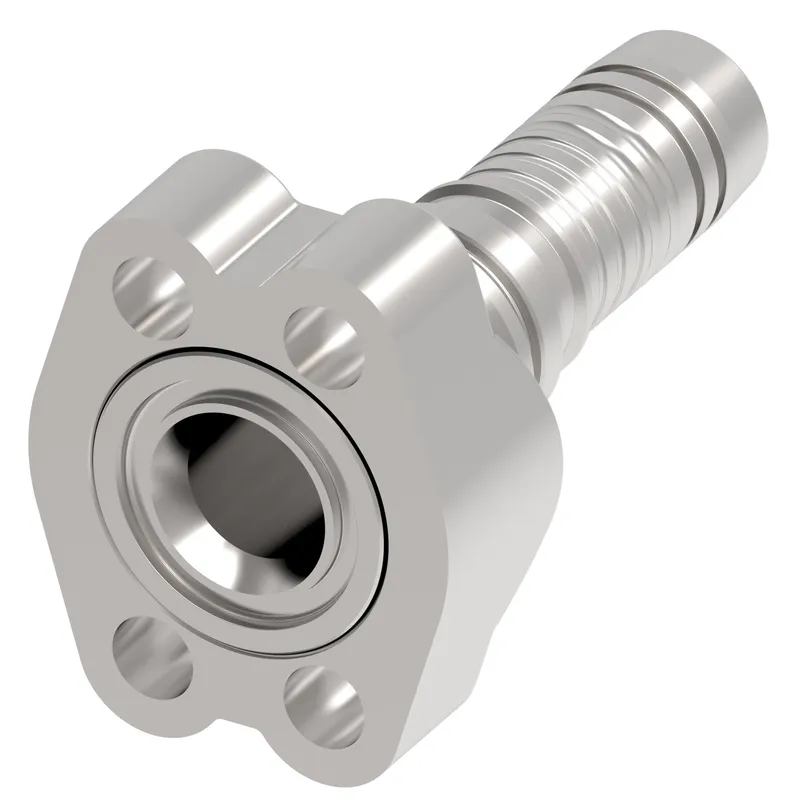

HOSE NIPPLE, 1A/20, C62/20, CS, STR

MPN: 1F00445-2020-S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1F00445-2020-S?

Danfoss HOSE NIPPLE, 1A/20, C62/20, CS, STR, manufacturer part number 1F00445-2020-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.720
A dimension MM	145.200
Angle shape	Straight
Application	General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-20
End type 1	Split flange code 62
Finish plating	Dura-Kote
Hose cut off factor IN	2.720
Hose cut off factor MM	70.300
Hose size	-20
Inside diameter IN	1.000
Inside diameter MM	25.400
Product height in	3.750
Product height mm	95.250
Product length in	5.720
Product length mm	145.288
Product material	Carbon steel
Product width in	3.750
Product width mm	95.250 mm
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	500
Working pressure max PSI	7252
