Danfoss 1F00571-1616-S

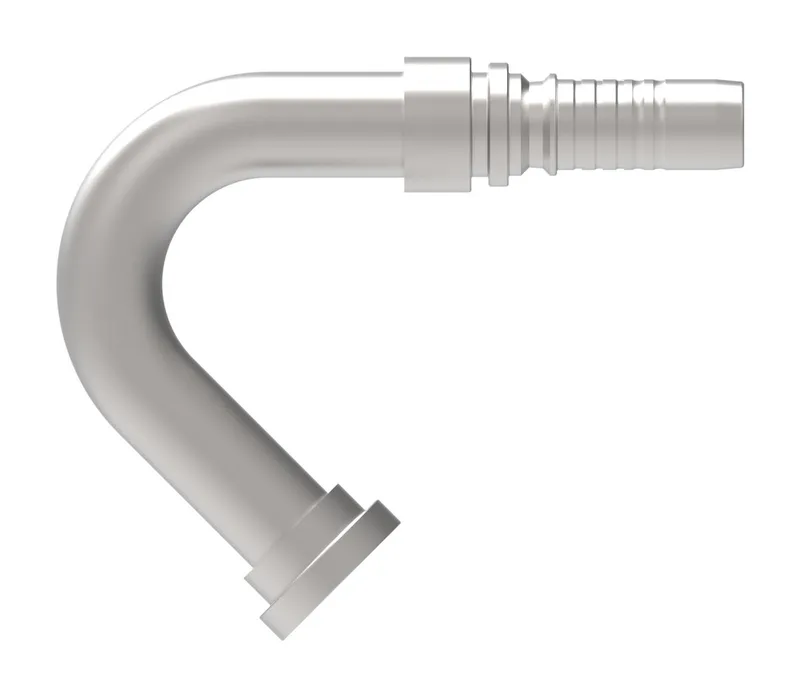

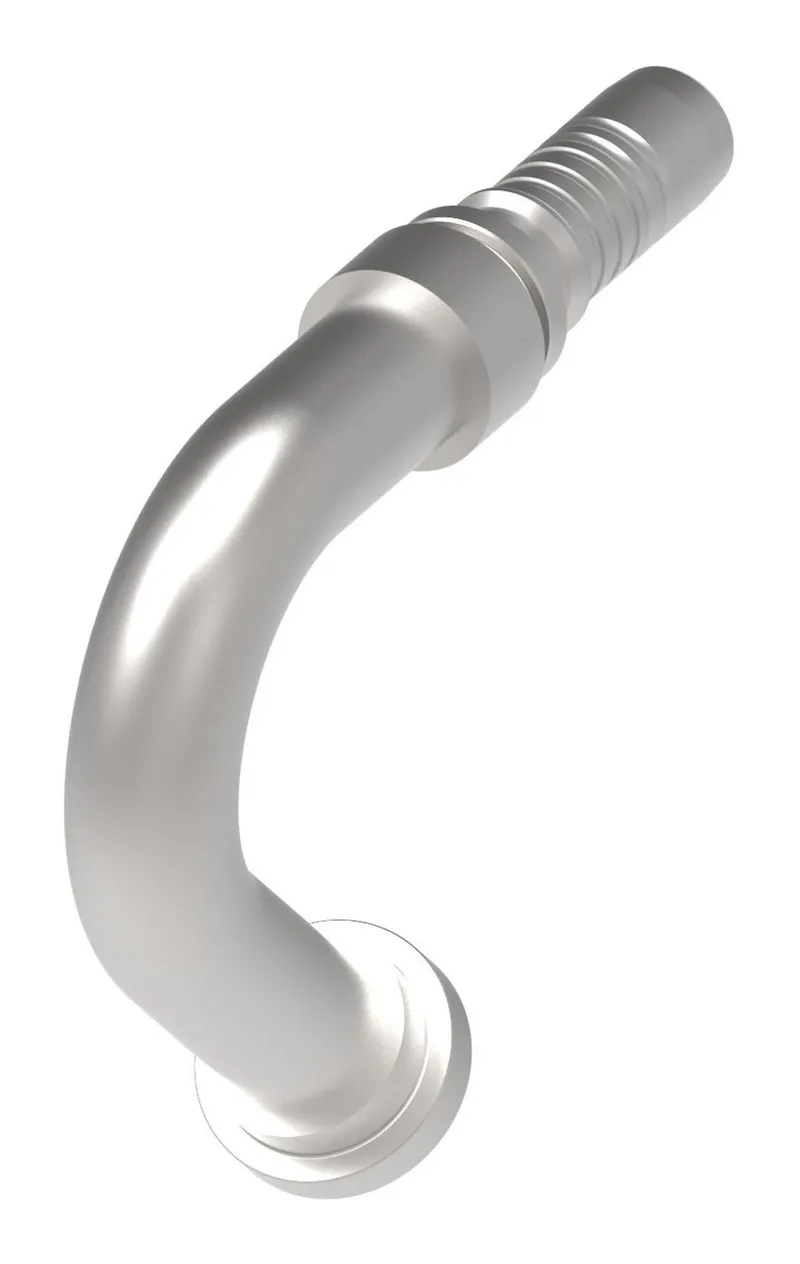

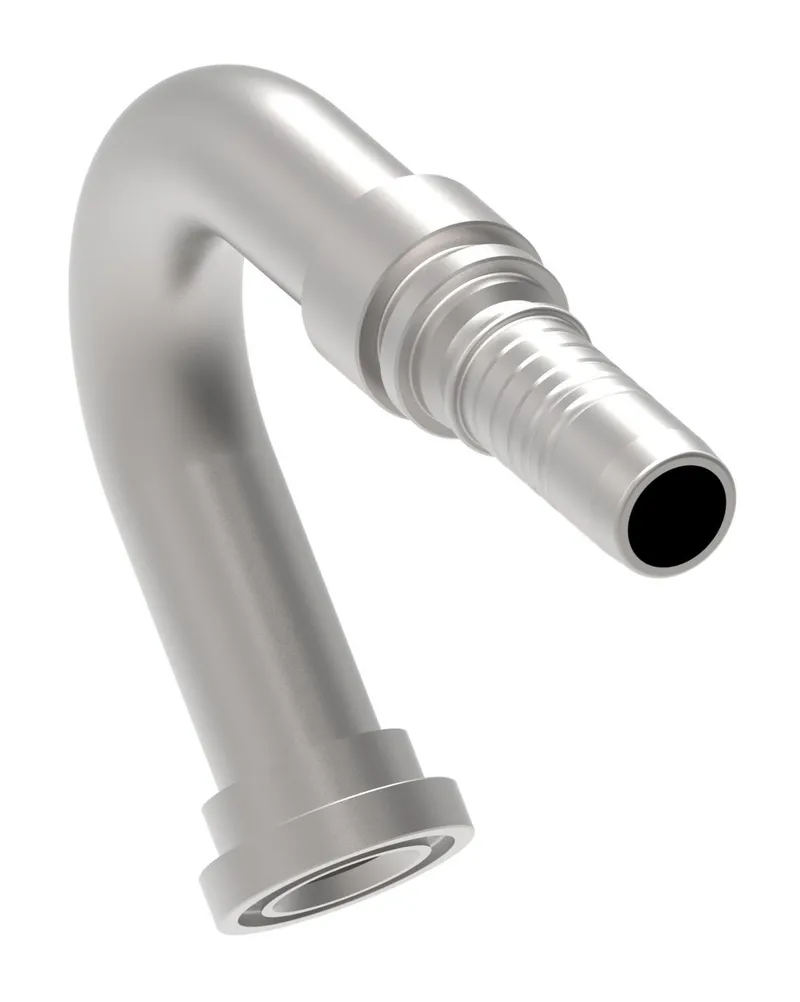

HOSE NIPPLE, 1A/16, C62/16, CS, 135D

MPN: 1F00571-1616-S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1F00571-1616-S?

Danfoss HOSE NIPPLE, 1A/16, C62/16, CS, 135D, manufacturer part number 1F00571-1616-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.480
A dimension MM	113.800
Angle shape	135 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	5.070
Drop dimension MM	129.00
End size 1	-16
End type 1	Split flange code 62
Finish plating	Zinc plating
Hose cut off factor IN	1.850
Hose cut off factor MM	47.200
Hose size	-16
Inside diameter IN	0.770
Inside diameter MM	19.600
Product height in	5.079
Product height mm	128.999
Product length in	6.252
Product length mm	158.801
Product material	Carbon steel
Product width in	1.874
Product width mm	47.600 mm
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	414
Working pressure max PSI	6000

1F00571-1616-S: frequently asked questions

When can 1F00571-1616-S be shipped?

1F00571-1616-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1F00571-1616-S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1F00571-1616-S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1F00571-1616-S, subject to availability and destination.
