Danfoss 1F00432-1616-S

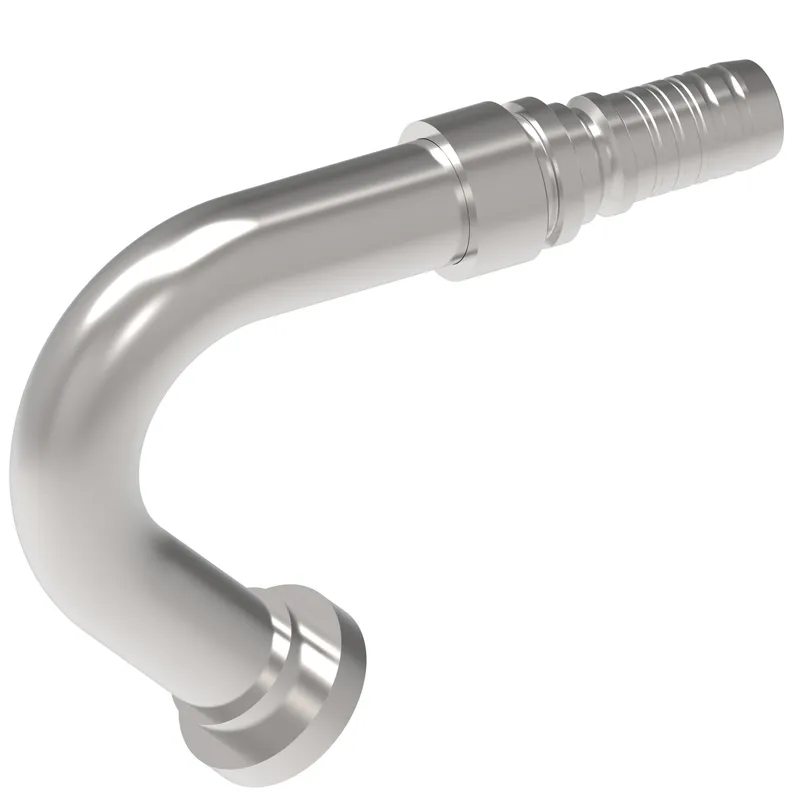

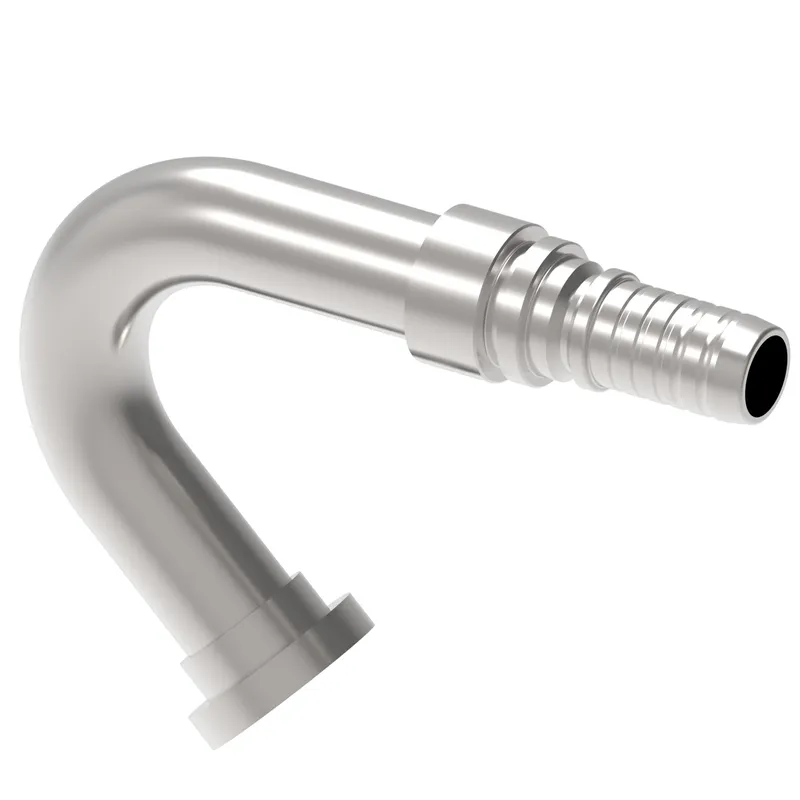

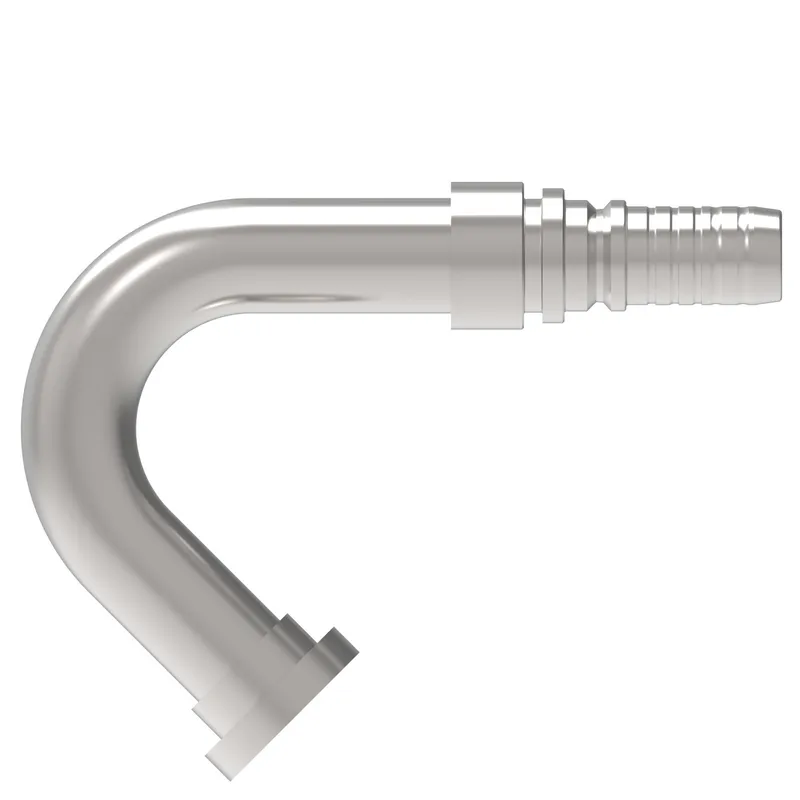

HOSE NIPPLE, 1A/16, C62/16, CS, 135D

MPN: 1F00432-1616-S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1F00432-1616-S?

Danfoss HOSE NIPPLE, 1A/16, C62/16, CS, 135D, manufacturer part number 1F00432-1616-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.380
A dimension MM	136.900
Angle shape	135 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	4.720
Drop dimension MM	120.00
End size 1	-16
End type 1	Split flange code 62
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hose cut off factor IN	2.760
Hose cut off factor MM	70.200
Hose size	-16
Inside diameter IN	0.770
Inside diameter MM	19.600
Product height in	6.417
Product height mm	162.992
Product length in	7.751
Product length mm	196.875
Product material	Carbon steel
Product width in	1.874
Product width mm	47.600 mm
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	1.181
Tube OD 1 MM	30.000
Working pressure max BAR	414
Working pressure max PSI	6000
