Danfoss 1F00423-1216-S

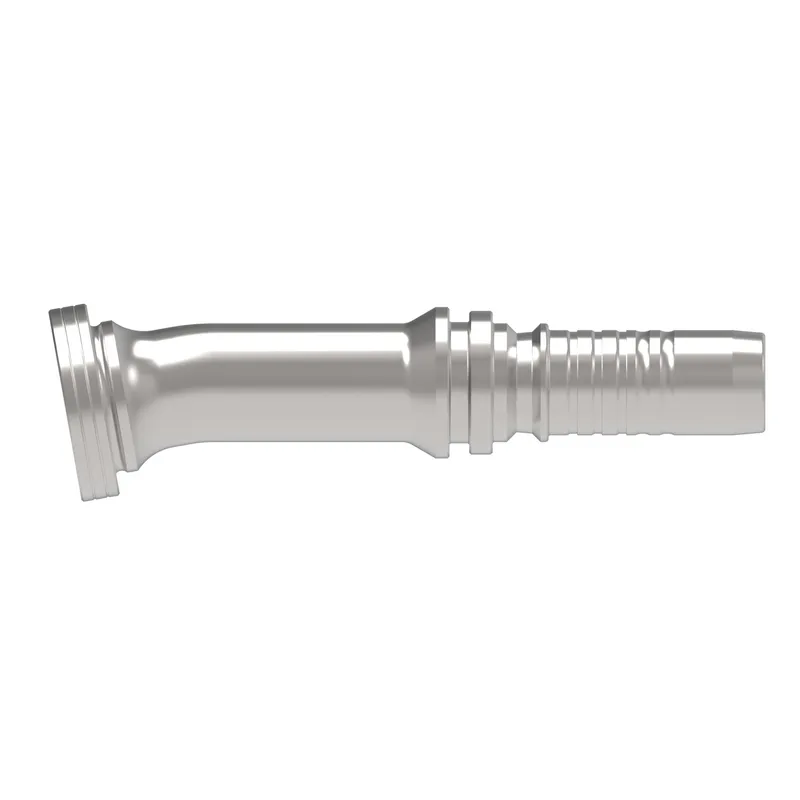

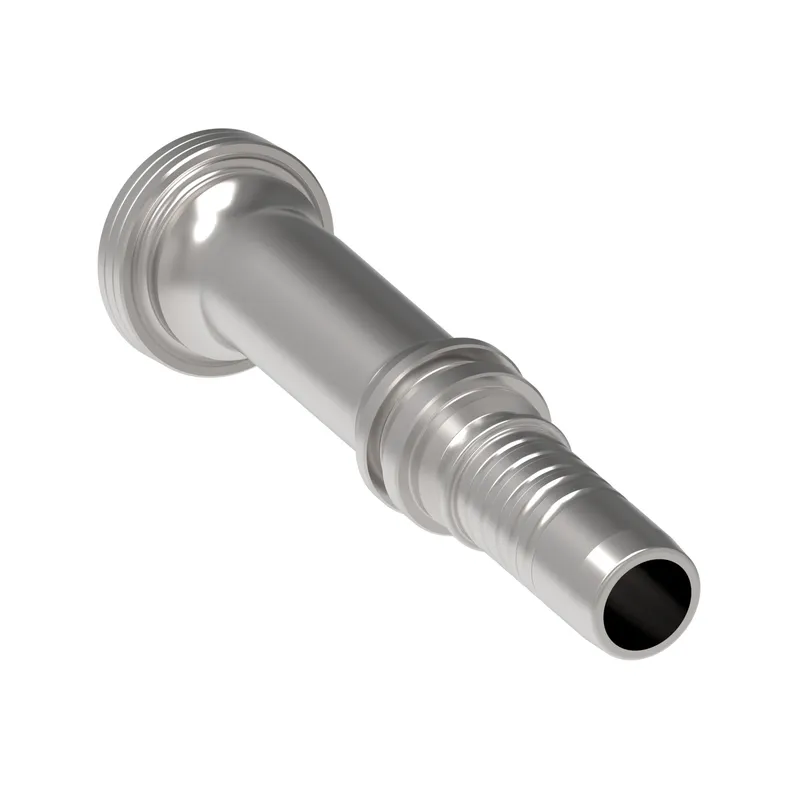

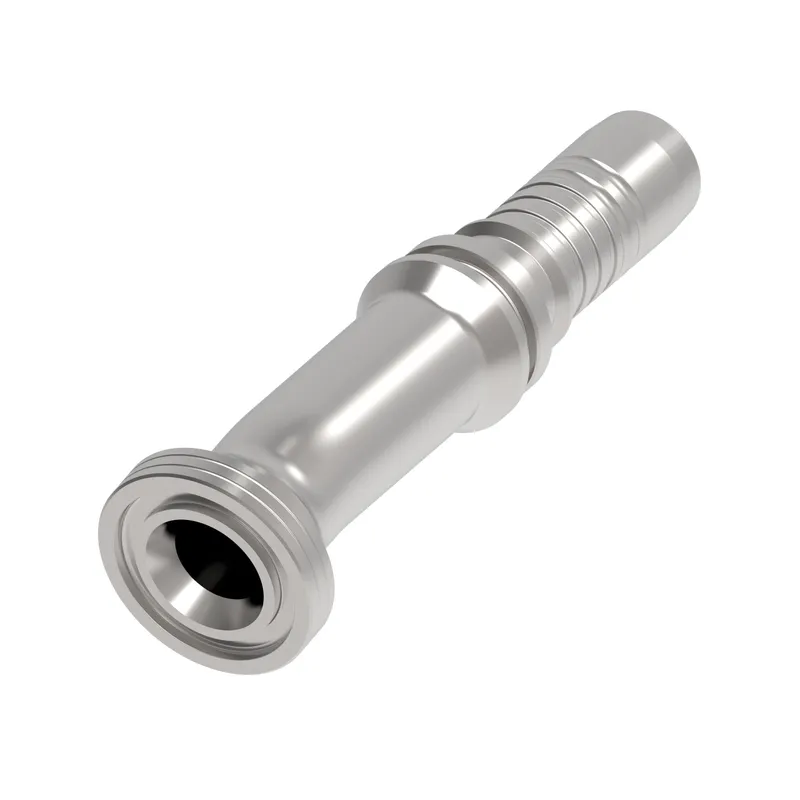

HOSE NIPPLE, 1A/16, C62/12, CS, 10D

MPN: 1F00423-1216-S
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1F00423-1216-S?

Danfoss HOSE NIPPLE, 1A/16, C62/12, CS, 10D, manufacturer part number 1F00423-1216-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.600
A dimension MM	138.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	0.220
Drop dimension MM	5.5
End size 1	-12
End type 1	Split flange code 62
Finish plating	Protective oil
Hose cut off factor IN	2.840
Hose cut off factor MM	72.100
Hose size	-16
Inside diameter IN	0.7700
Inside diameter MM	19.6000
Product height in	1.823
Product height mm	46.299
Product length in	5.461
Product length mm	138.699
Product material	Carbon steel
Product width in	1.626
Product width mm	41.300 mm
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	0.980
Tube OD 1 MM	25.000
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
