Danfoss 1E24FL24

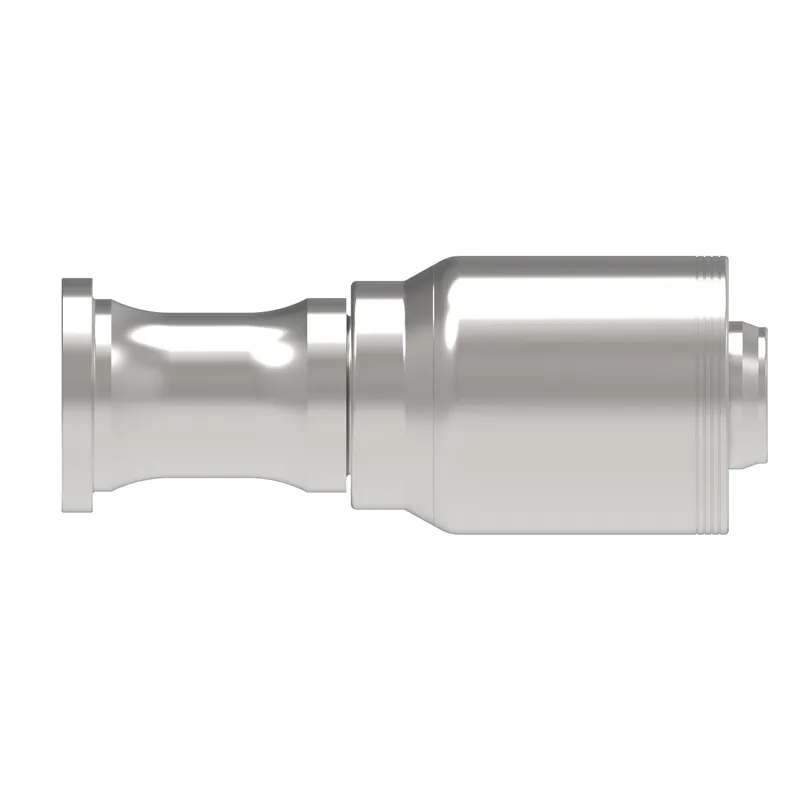

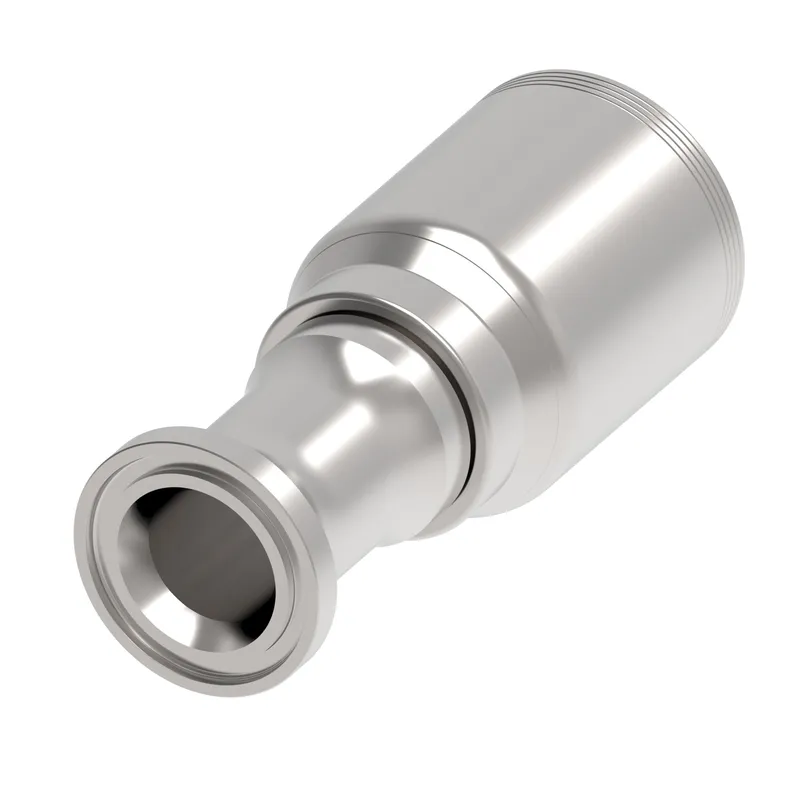

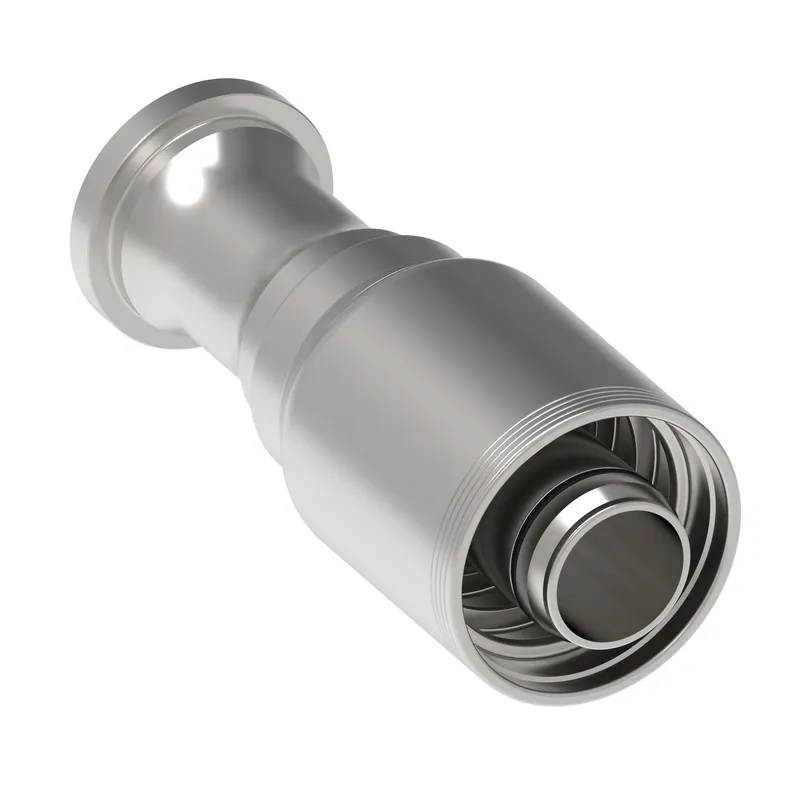

HOSE FTG, 1A/24, C61/24, CS, STR

MPN
1E24FL24
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E24FL24?

Danfoss HOSE FTG, 1A/24, C61/24, CS, STR, manufacturer part number 1E24FL24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132277
A dimension IN6.750
A dimension MM171.600
Angle shapeStraight
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN1.50
Compatible tube OD MM38.100
Construction StyleCrimp
End size 1-24
End type 1Split flange code 61
Finish platingDura-Kote
Hose cut off factor IN3.680
Hose cut off factor MM93.600
Hose size-24
Inside diameter IN1.220
Inside diameter MM31.100
Product height in2.823
Product height mm71.704
Product length in6.610
Product length mm167.894
Product materialCarbon steel
Product width in2.823
Product width mm71.704 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Tube OD 1 IN1.500
Tube OD 1 MM38.100
Working pressure max BAR206
Working pressure max PSI2950
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

1E24FL24: frequently asked questions

When can 1E24FL24 be shipped?

1E24FL24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E24FL24 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E24FL24 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E24FL24, subject to availability and destination.
