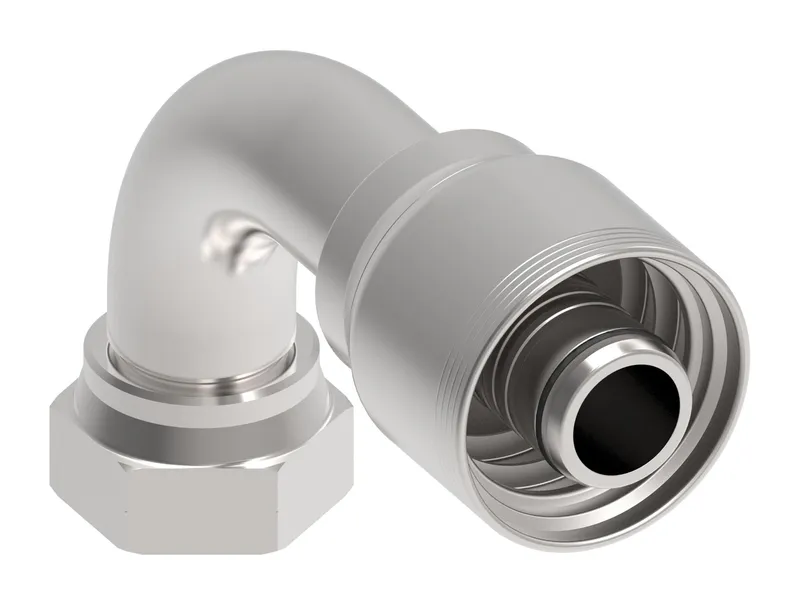

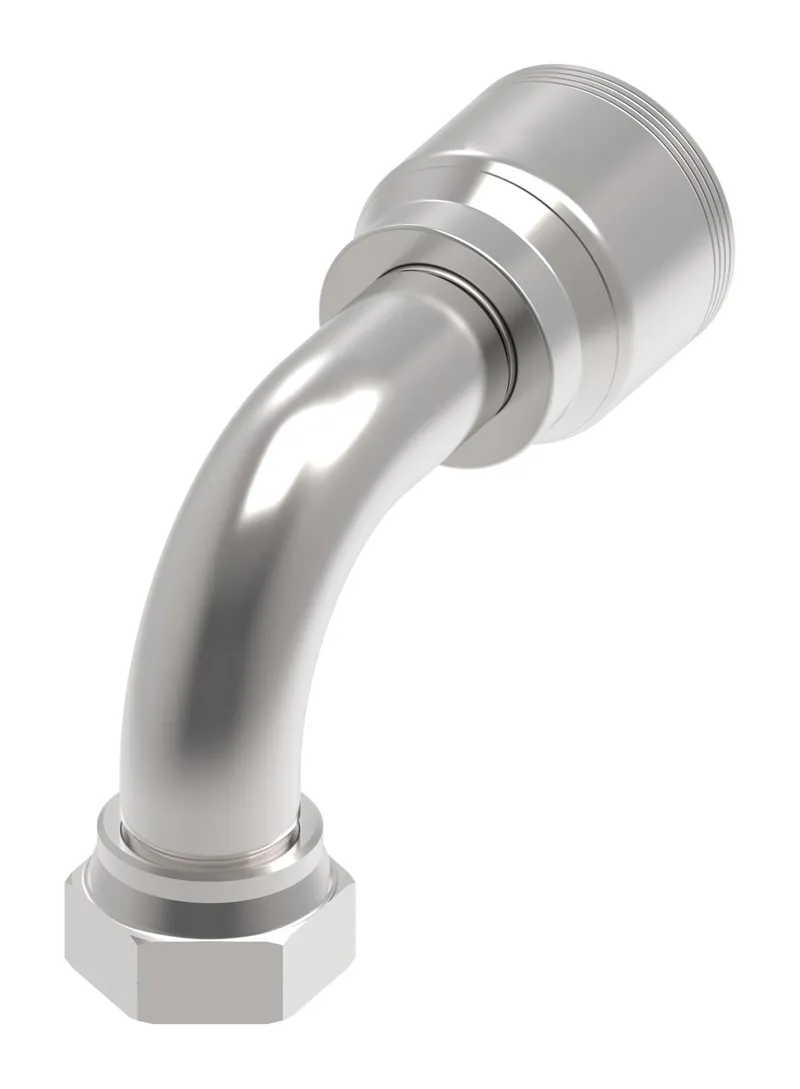

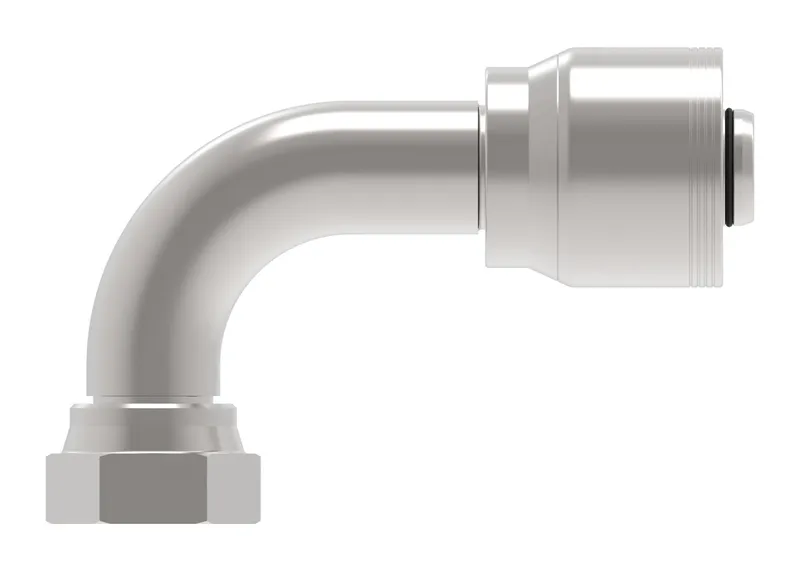

Danfoss 1E12BFB12

HOSE FTG, 1A/12, BF/12, CS, 90D

MPN: 1E12BFB12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12BFB12?

Danfoss HOSE FTG, 1A/12, BF/12, CS, 90D, manufacturer part number 1E12BFB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131522
A dimension IN	4.170
A dimension MM	105.900
Angle shape	90 Degree
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Construction Style	Crimp
Drop dimension IN	2.240
Drop dimension MM	57.00
End size 1	-12
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	31.979
Hose cut off factor IN	2.740
Hose cut off factor MM	69.600
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	2.240
Product height mm	56.896
Product length in	4.510
Product length mm	114.554
Product material	Carbon steel
Product width in	1.834
Product width mm	46.586 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/4
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1E12BFB12: frequently asked questions

When can 1E12BFB12 be shipped?

1E12BFB12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1E12BFB12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1E12BFB12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1E12BFB12, subject to availability and destination.
