Danfoss 1E12BF12

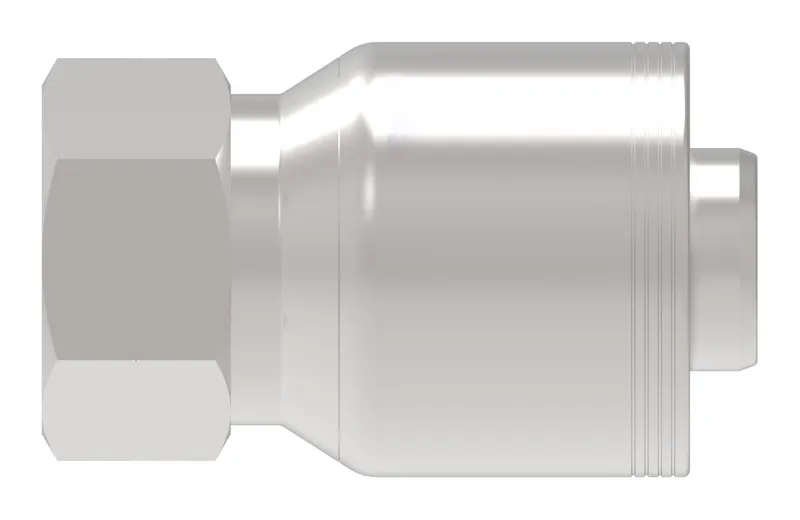

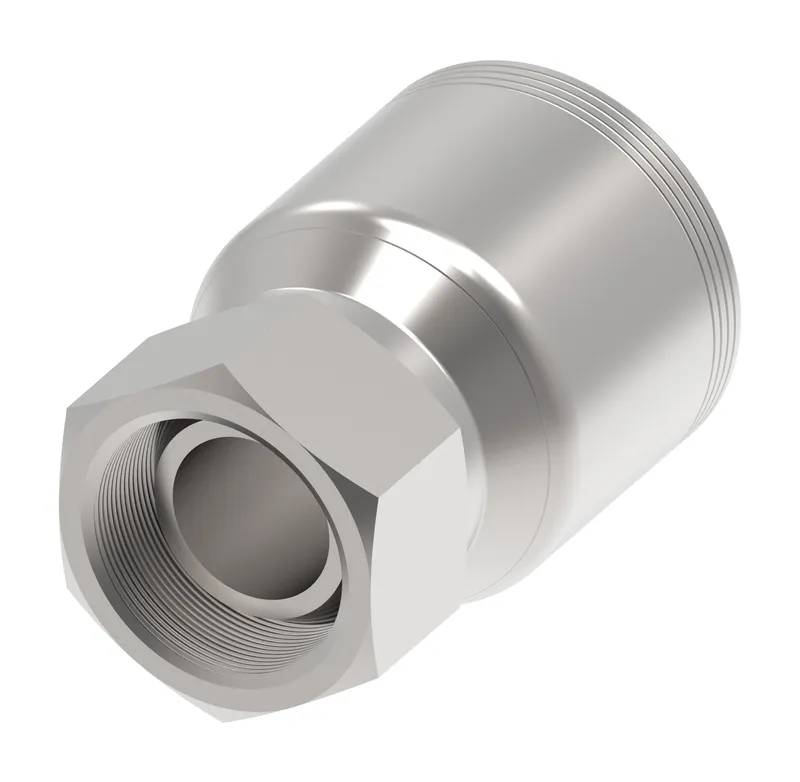

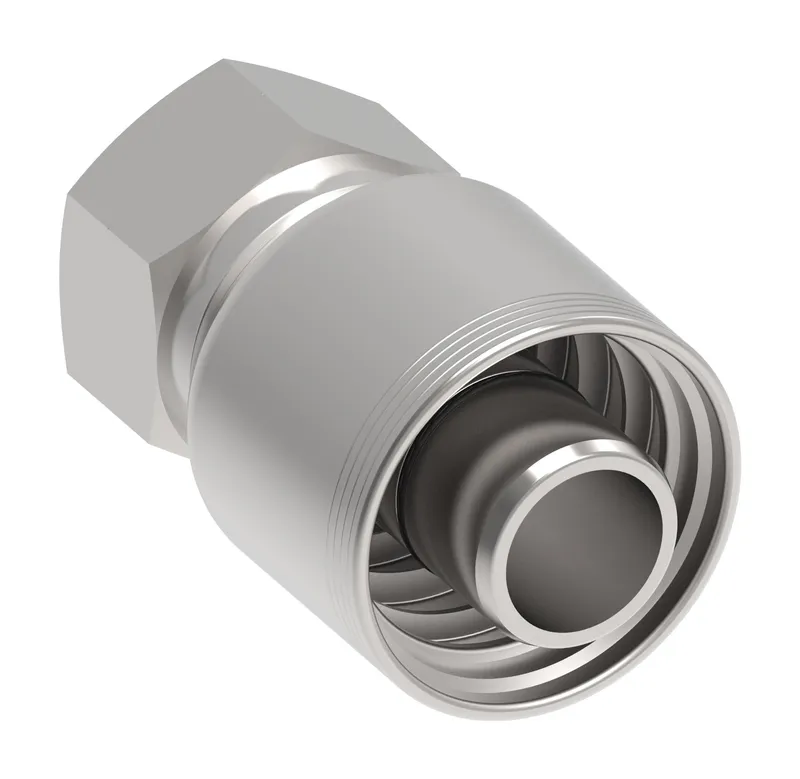

HOSE FTG, 1A/12, BF/12, CS, STR

MPN: 1E12BF12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E12BF12?

Danfoss HOSE FTG, 1A/12, BF/12, CS, STR, manufacturer part number 1E12BF12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146131508
A dimension IN	2.610
A dimension MM	66.200
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
End size 1	-12
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.180
Hose cut off factor MM	29.900
Hose size	-12
Inside diameter IN	0.560
Inside diameter MM	14.200
Product height in	1.834
Product height mm	46.586
Product length in	3.270
Product length mm	83.058
Product material	Carbon steel
Product width in	1.834
Product width mm	46.583 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	G 3/4
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
