Danfoss 1BA20FRB20

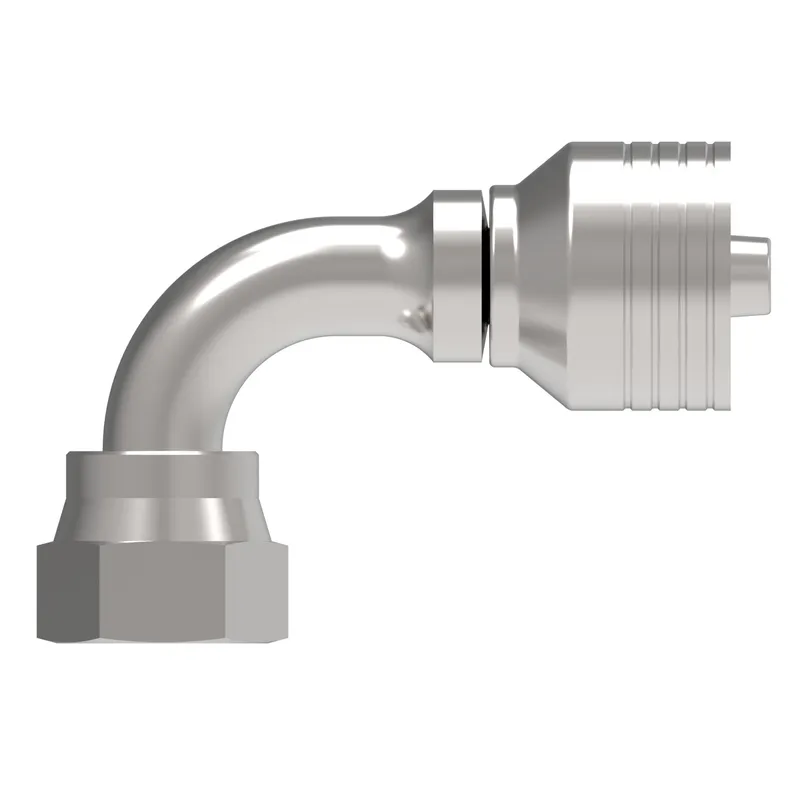

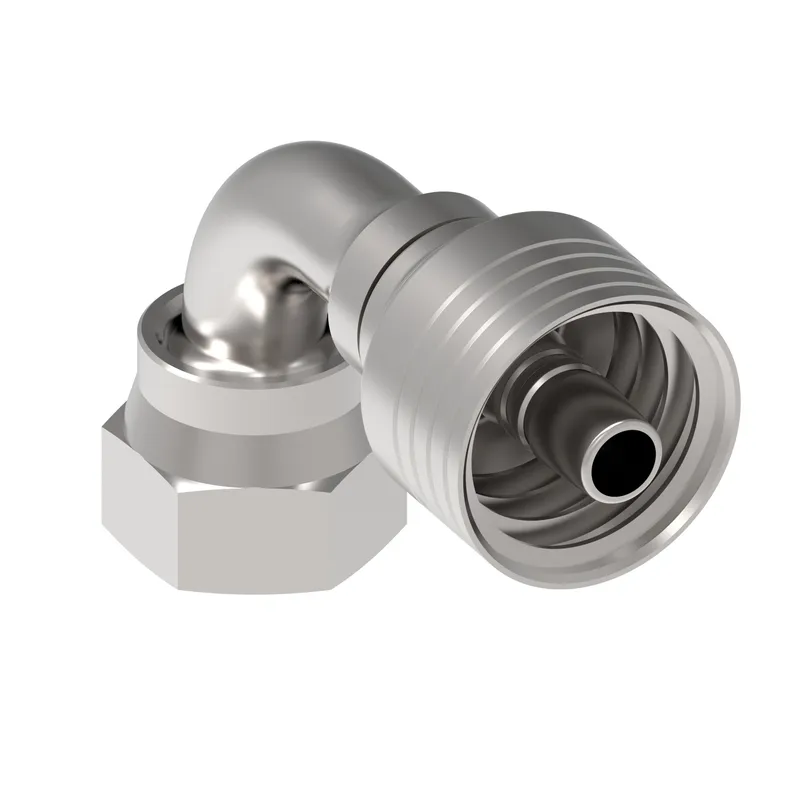

HOSE NIPPLE ASSY,4S/20,ORS-F/20,CS,90D

MPN: 1BA20FRB20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA20FRB20?

Danfoss HOSE NIPPLE ASSY,4S/20,ORS-F/20,CS,90D, manufacturer part number 1BA20FRB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130952
A dimension IN	5.110
A dimension MM	129.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	EC525, FC736, GH493, FC636
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
Drop dimension IN	2.510
Drop dimension MM	63.80
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End type 1	Female ORFS swivel
Finish plating	Zinc plating
Hex size 1 IN	1.875
Hex size 1 MM	47.000
Hex size 2 IN	1.880
Hex size 2 MM	47.752
Hose cut off factor IN	3.570
Hose cut off factor MM	90.600
Hose size	-20
Inside diameter IN	1.020
Inside diameter MM	26.000
Product height in	2.510
Product height mm	63.754
Product length in	5.110
Product length mm	129.794
Product material	Carbon steel
Product width in	2.430
Product width mm	61.722 mm
Series	B Series
Thread sealant	No
Thread size 1	1 11/16-12 UN
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	310
Working pressure max PSI	4500
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
