Danfoss 1B20FH20

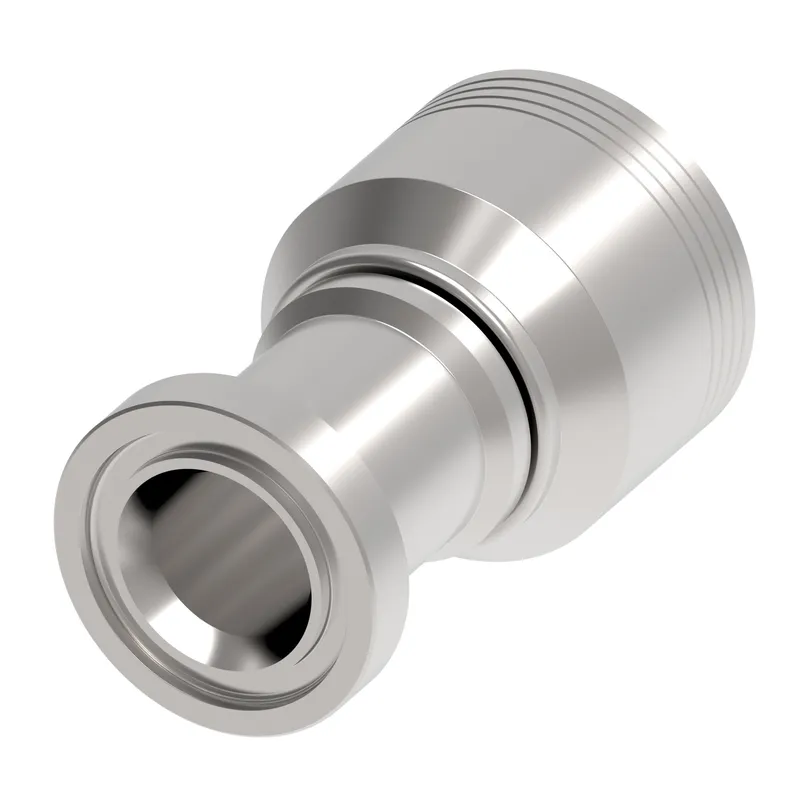

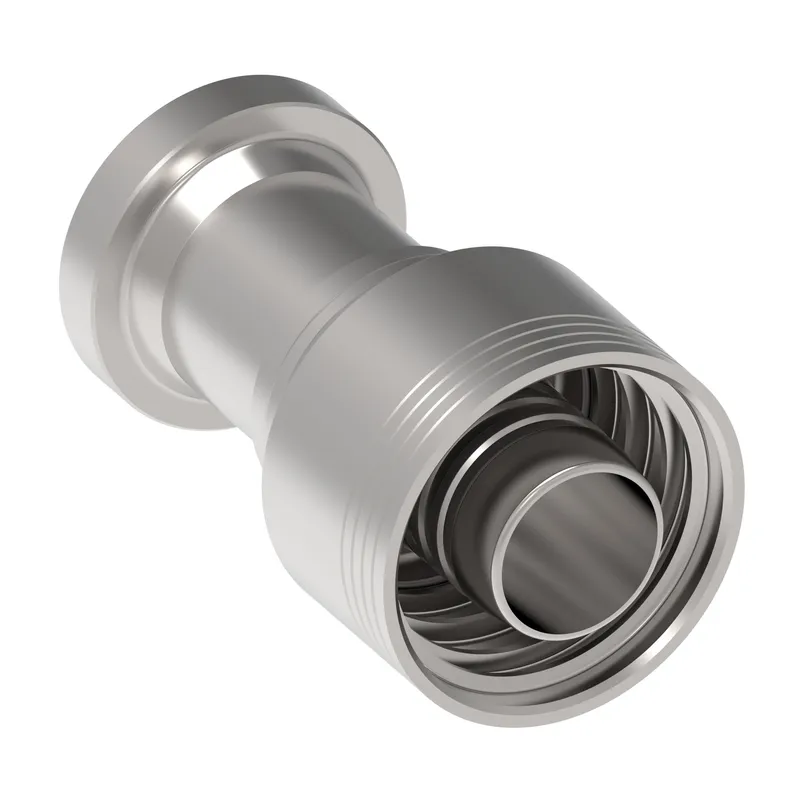

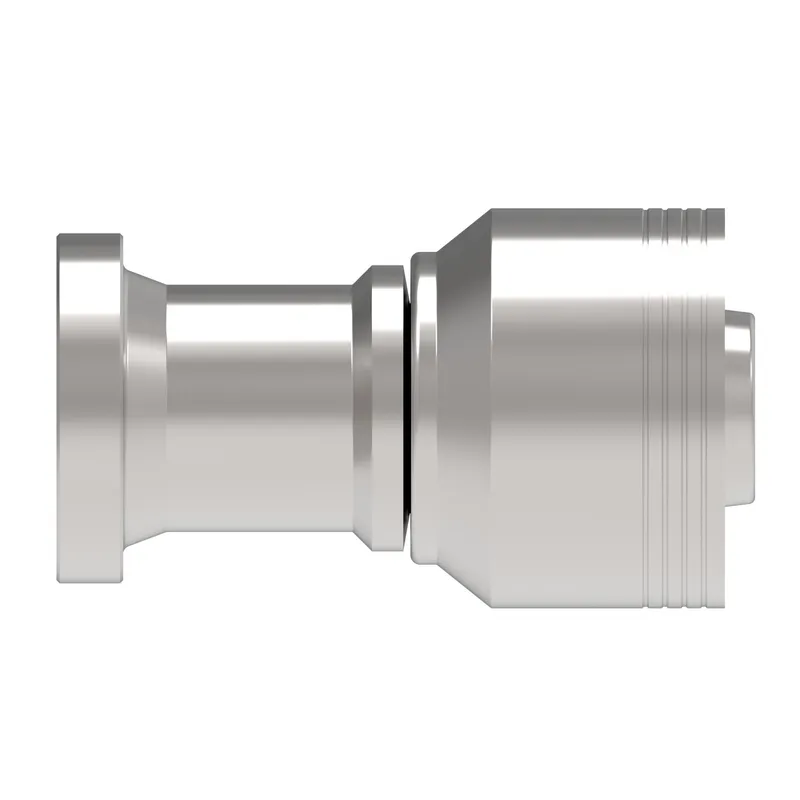

HOSE NIPPLE ASSY, 4S/20, C62/20, CS, STR

MPN: 1B20FH20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B20FH20?

Danfoss HOSE NIPPLE ASSY, 4S/20, C62/20, CS, STR, manufacturer part number 1B20FH20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146129260
A dimension IN	4.060
A dimension MM	103.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-20
End type 1	Split flange code 62
Finish plating	Zinc plating
Hose cut off factor IN	2.510
Hose cut off factor MM	63.800
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.430
Product height mm	61.722
Product length in	4.060
Product length mm	103.124
Product material	Carbon steel
Product width in	2.430
Product width mm	61.722 mm
Seal material	Ethylene propylene (EPDM)
Series	B Series
Thread sealant	No
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40

1B20FH20: frequently asked questions

When can 1B20FH20 be shipped?

1B20FH20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B20FH20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B20FH20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B20FH20, subject to availability and destination.
