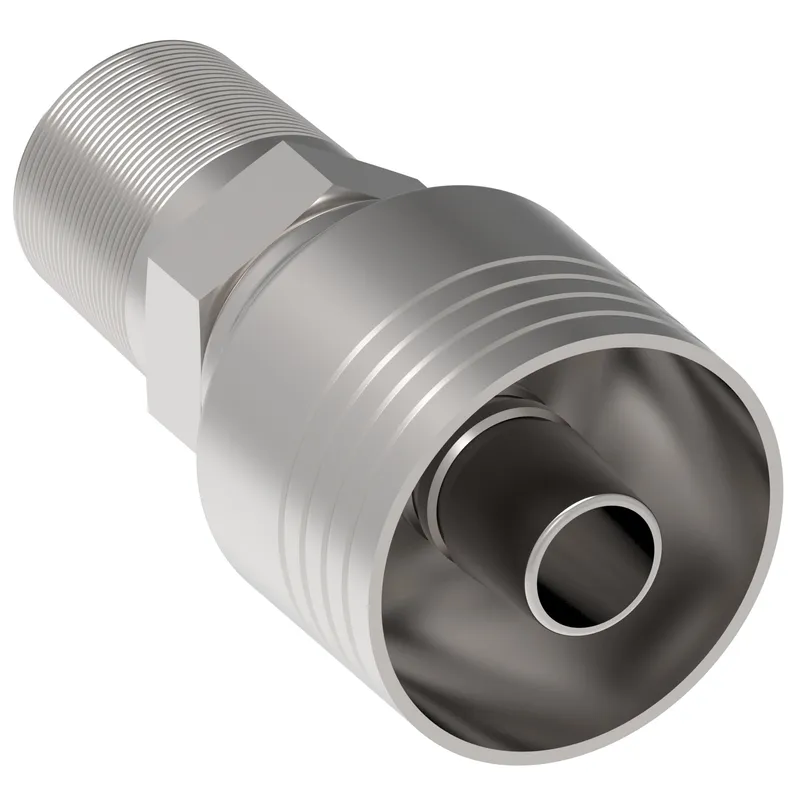

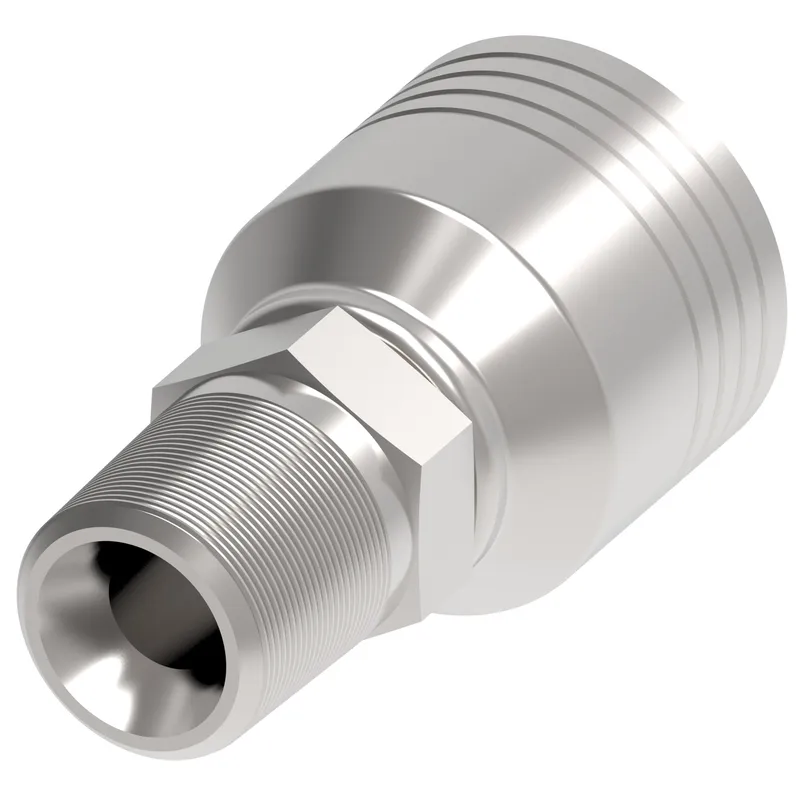

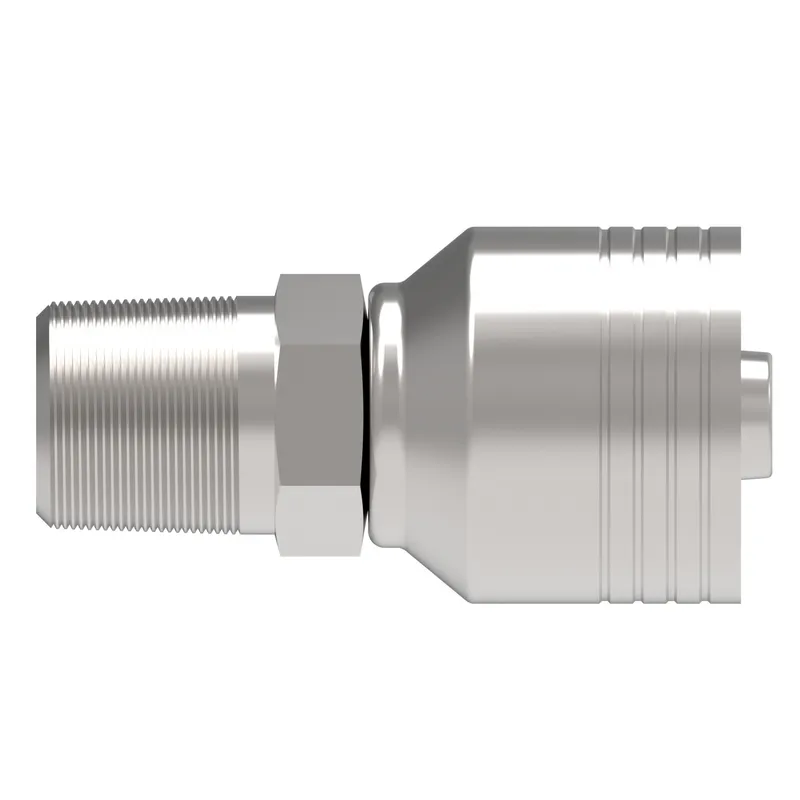

HOSE NIPPLE ASSY,4S/20,BSPT-M/20,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1B20BT20 be shipped?
1B20BT20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1B20BT20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1B20BT20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B20BT20, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,4S/20,BSPT-M/20,CS,STR, manufacturer part number 1B20BT20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.660 |
| A dimension MM | 118.400 |
| Angle shape | Straight |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End type 1 | Male pipe BSPT |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.810 |
| Hex size 1 MM | 45.974 |
| Hose cut off factor IN | 2.490 |
| Hose cut off factor MM | 63.300 |
| Hose size | -20 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product height in | 2.457 |
| Product height mm | 62.400 |
| Product length in | 4.660 |
| Product length mm | 118.400 |
| Product material | Carbon steel |
| Product width in | 2.457 |
| Product width mm | 62.400 mm |
| Seal material | Ethylene propylene (EPDM) |
| Series | B Series |
| Thread sealant | No |
| Thread size 1 | R 1/4 |
| Working temperature max C | 149 |
| Working temperature max F | 300 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
