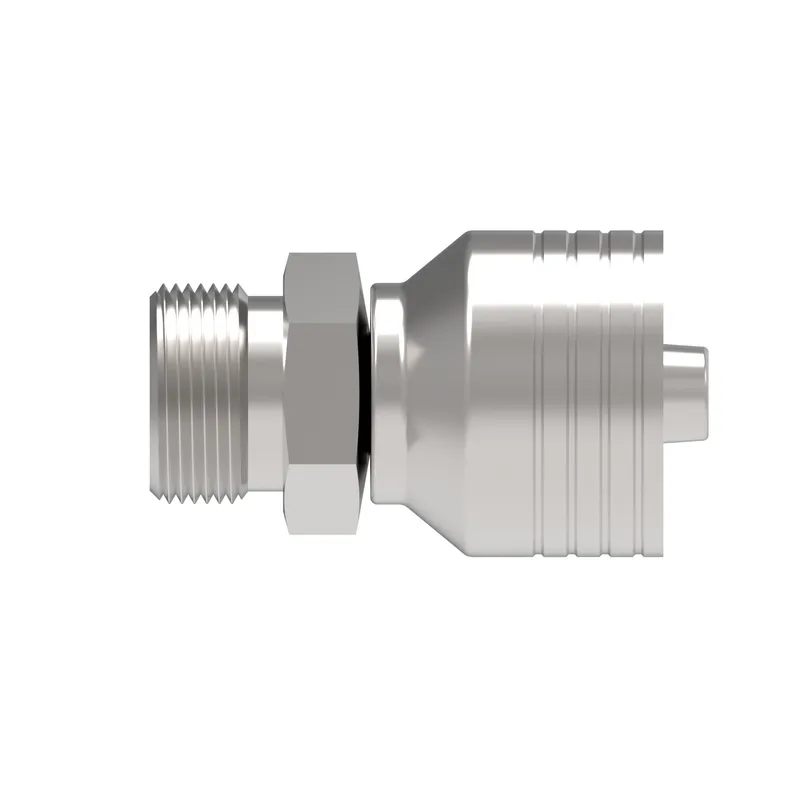

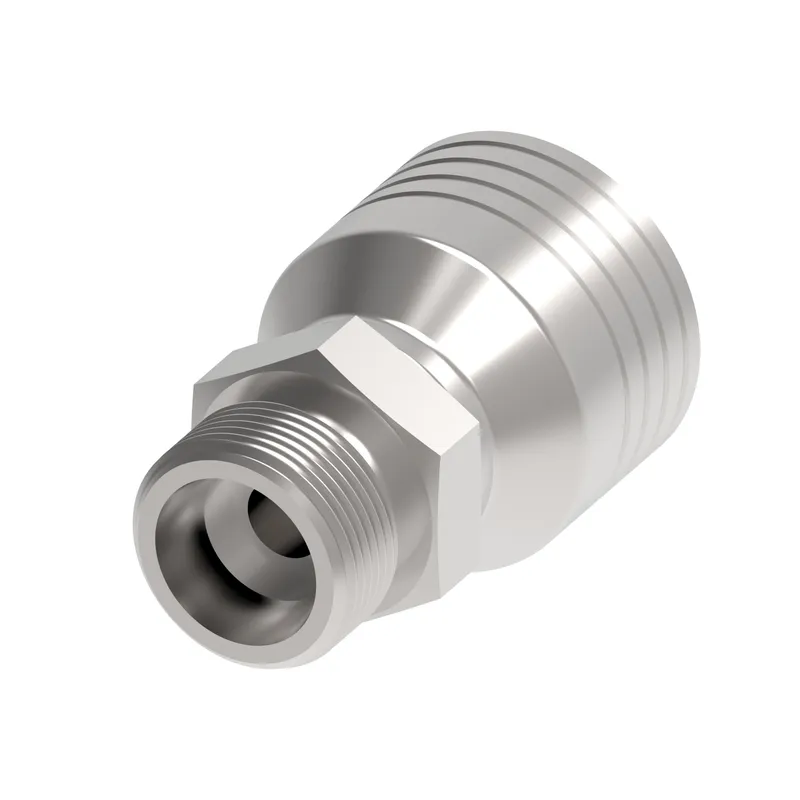

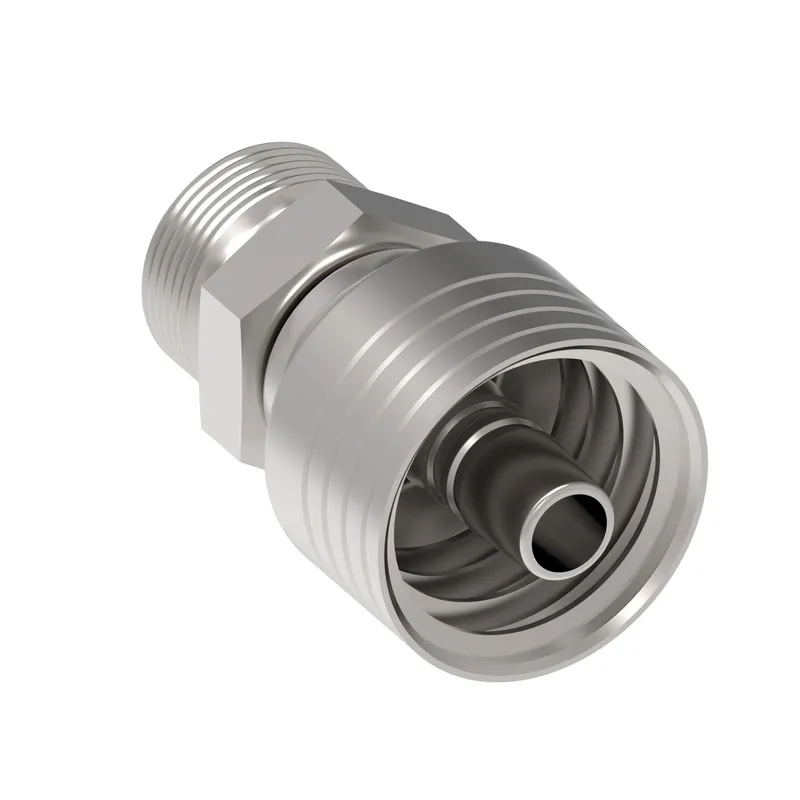

HOSE NIPPLE ASSY,4S/12,DKH-M/20,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1B20EK12 be shipped?
1B20EK12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1B20EK12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1B20EK12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B20EK12, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,4S/12,DKH-M/20,CS,STR, manufacturer part number 1B20EK12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146129246 |
| A dimension IN | 3.090 |
| A dimension MM | 78.600 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Compatible hoses | FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636 |
| Compatible tube OD IN | 1.25 |
| Compatible tube OD MM | 31.750 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End type 1 | 24 deg. tube port heavy duty |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.614 |
| Hex size 1 MM | 41.000 |
| Hex size 2 IN | 0.000 |
| Hose cut off factor IN | 1.670 |
| Hose cut off factor MM | 42.300 |
| Hose size | -12 |
| Inside diameter IN | 0.560 |
| Inside diameter MM | 14.200 |
| Product height in | 1.657 |
| Product height mm | 42.087 |
| Product length in | 2.579 |
| Product length mm | 65.506 |
| Product material | Carbon steel |
| Product width in | 1.657 |
| Product width mm | 42.087 mm |
| Seal material | Ethylene propylene (EPDM) |
| Series | B Series |
| Thread sealant | No |
| Thread size 1 | M36x2 |
| Tube OD 1 IN | 1.250 |
| Tube OD 1 MM | 31.750 |
| Working pressure max BAR | 250 |
| Working pressure max PSI | 3650 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
