Danfoss 1B16FLF16

FTG TTC12 C61 30 USE 4S16FLF16 WHEN NIL

MPN: 1B16FLF16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

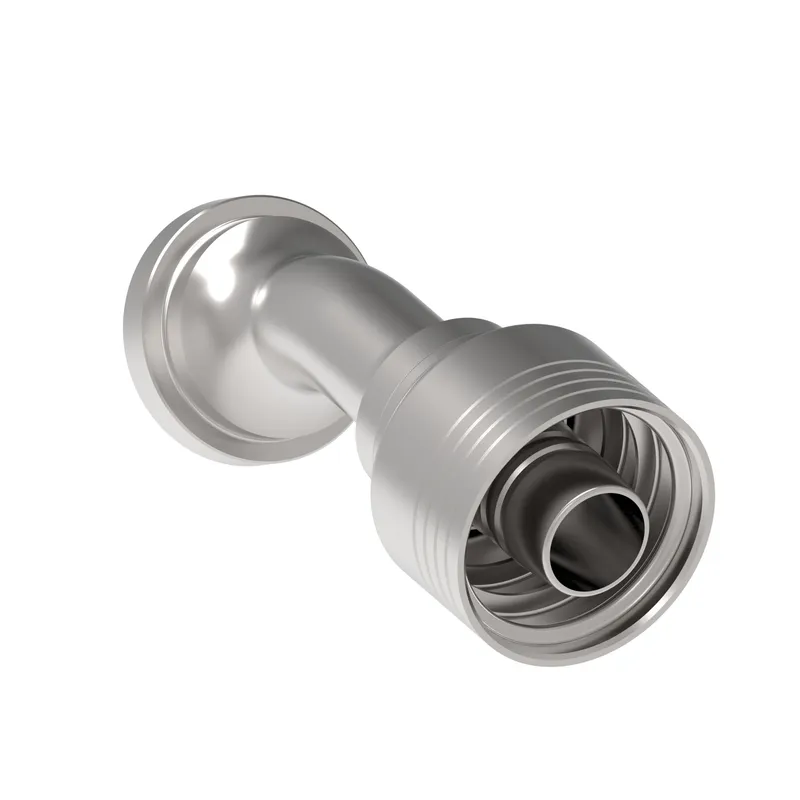

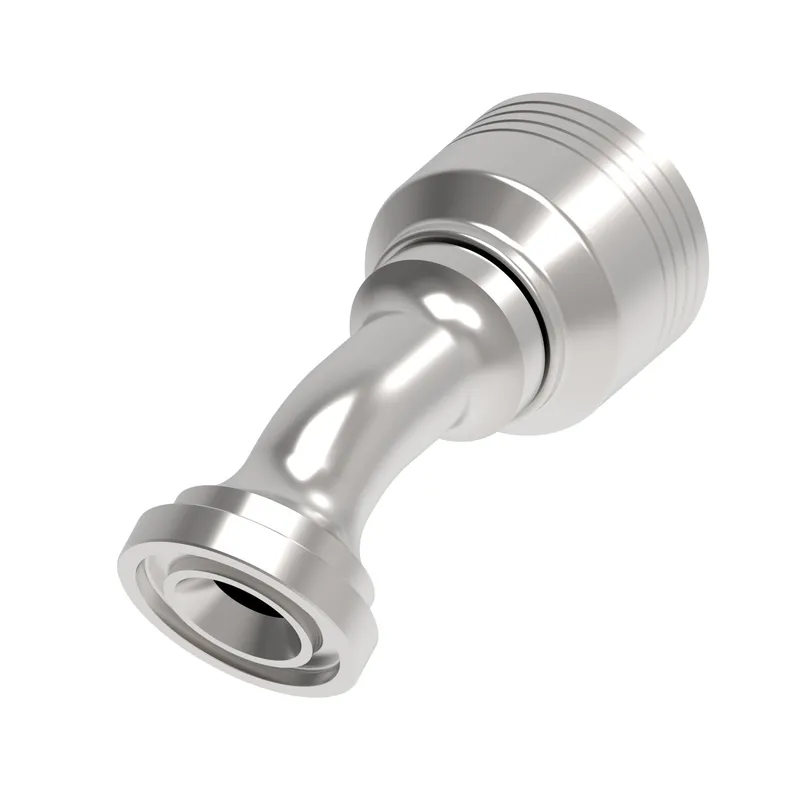

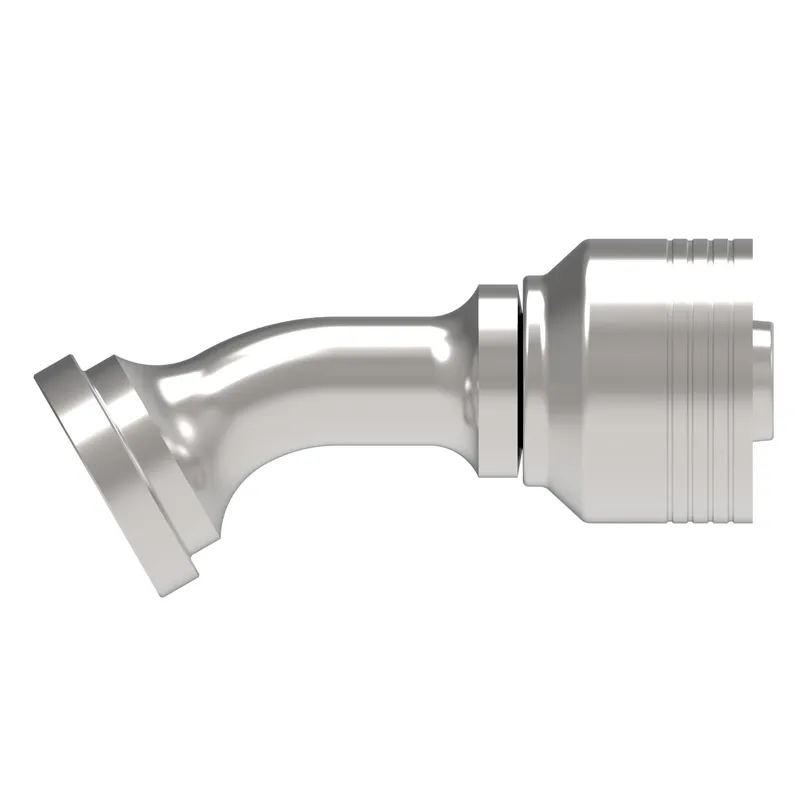

What is the Danfoss 1B16FLF16?

Danfoss FTG TTC12 C61 30 USE 4S16FLF16 WHEN NIL, manufacturer part number 1B16FLF16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146129123
A dimension IN	4.550
A dimension MM	115.500
Angle shape	30 Degree
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC659, FC736, GH493, FC636
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
Drop dimension IN	0.640
Drop dimension MM	16.30
End size 1	-16
End type 1	Split flange code 61
Finish plating	Zinc plating
Hose cut off factor IN	3.220
Hose cut off factor MM	81.700
Hose size	-16
Inside diameter IN	0.760
Inside diameter MM	19.300
Product height in	0.640
Product height mm	16.256
Product length in	4.550
Product length mm	115.570
Product material	Carbon steel
Product width in	2.081
Product width mm	52.857 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	345.00
Working pressure max PSI	5000.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
