Danfoss 1B16FLE12

HOSE NIPPLE ASSY,4S/12,C61/16,CS,67.5D

MPN
1B16FLE12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

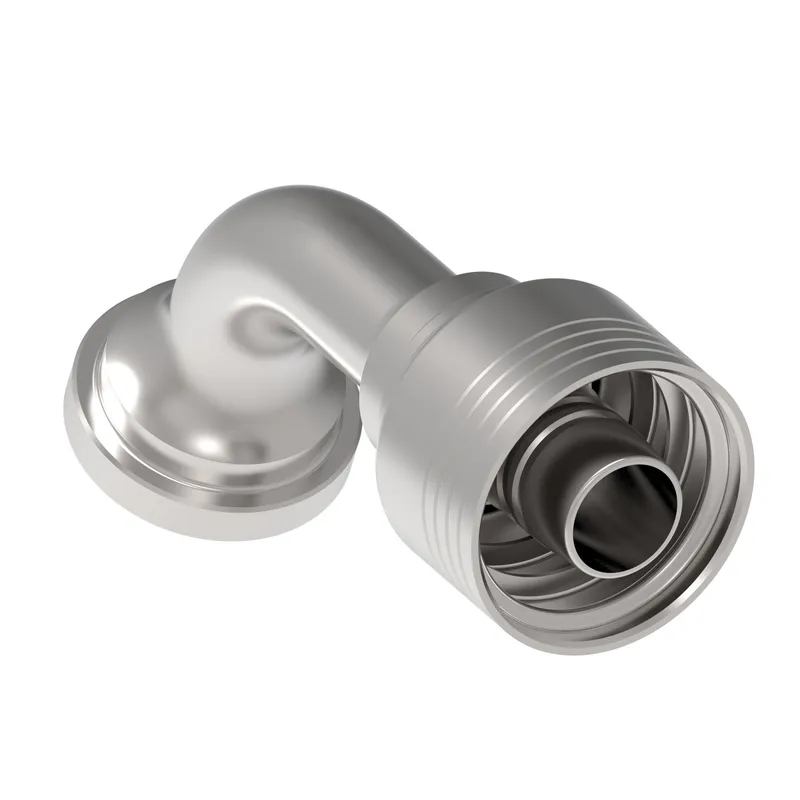

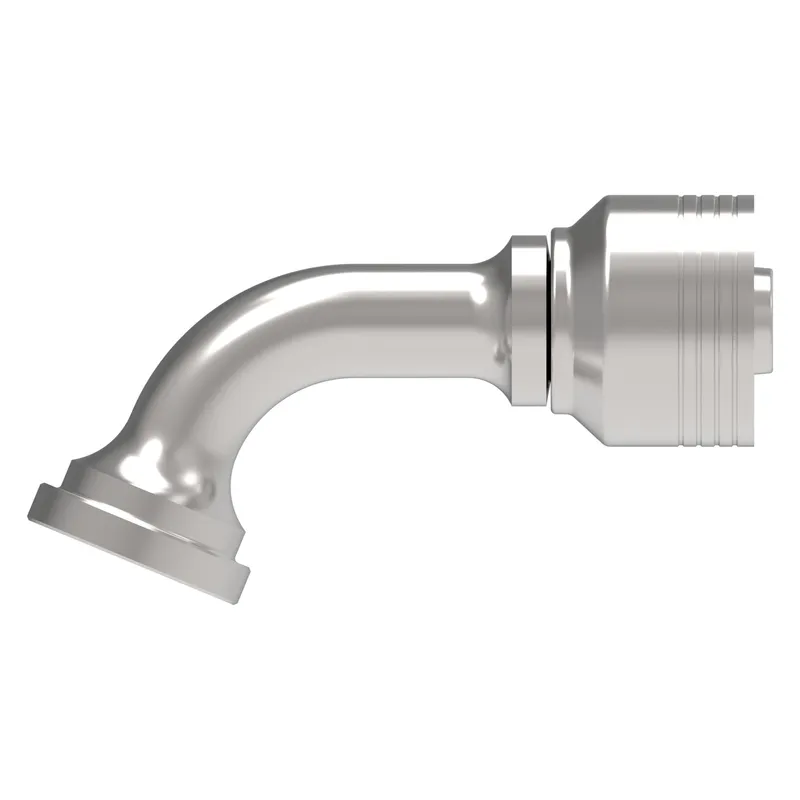

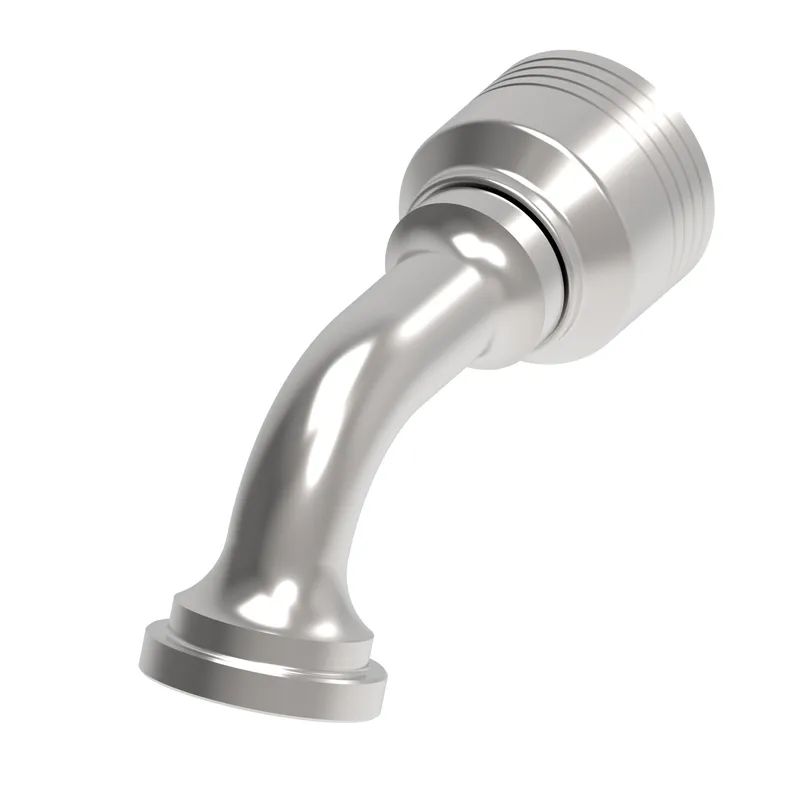

What is the Danfoss 1B16FLE12?

Danfoss HOSE NIPPLE ASSY,4S/12,C61/16,CS,67.5D, manufacturer part number 1B16FLE12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146129093
A dimension IN5.790
A dimension MM147.000
Angle shape67.5 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC659, FC736, GH493, FC636
Construction StyleCrimp
Drop dimension IN2.030
Drop dimension MM51.50
End size 1-16
End type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN4.360
Hose cut off factor MM110.800
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in2.568
Product height mm65.239
Product length in4.720
Product length mm119.888
Product materialCarbon steel
Product width in1.750
Product width mm44.450 mm
SeriesB Series
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C121
Working temperature max F250
Working temperature min C-40
Working temperature min F-40
