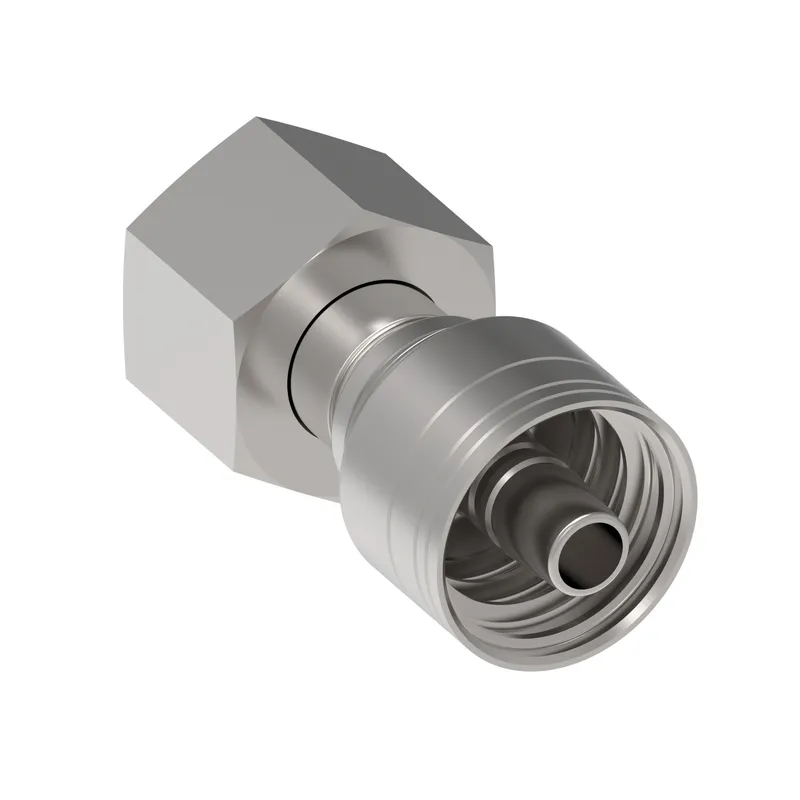

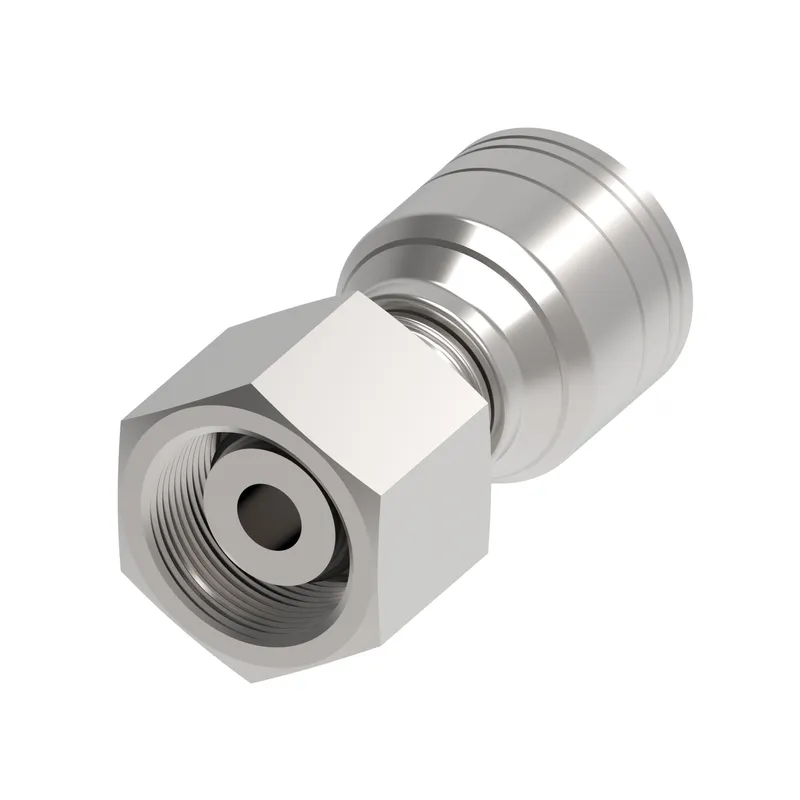

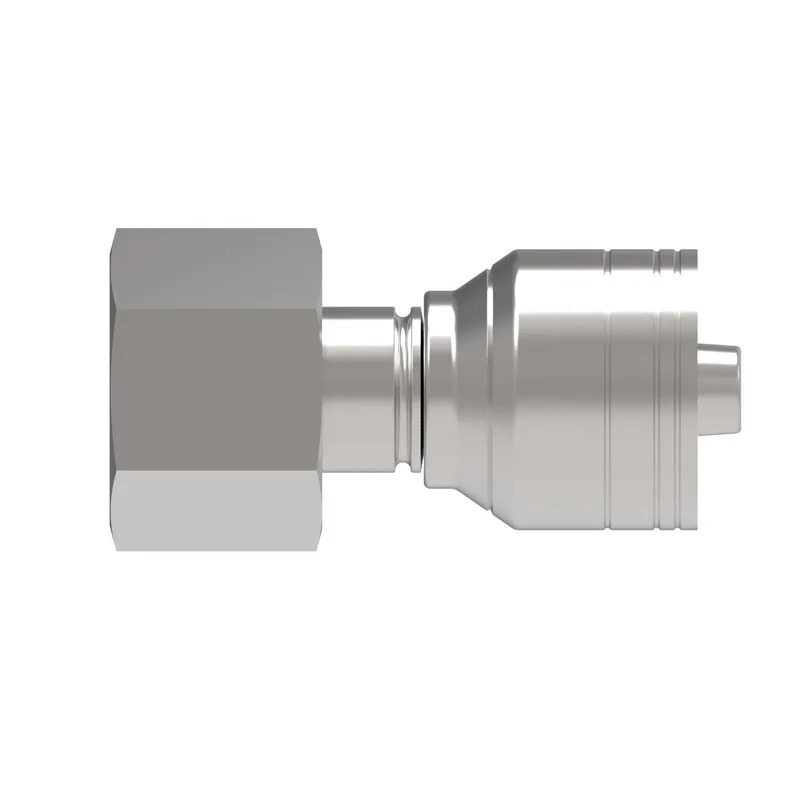

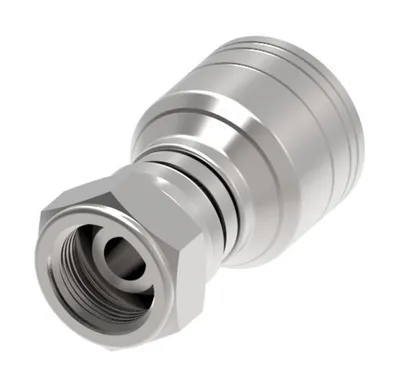

Danfoss 1AA8DS6C

HOSE FTG, 1A/06, DKOH-B/08, AP, STR

MPN: 1AA8DS6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 1AA8DS6C?

Danfoss HOSE FTG, 1A/06, DKOH-B/08, AP, STR, manufacturer part number 1AA8DS6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127617
A dimension IN	2.120
A dimension MM	53.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
End size 1	-8
End Type 1	24 deg. DKO swivel heavy duty
Hex size 1 IN	0.944
Hex size 1 MM	24.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.120
Hose cut off factor MM	28.500
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.080
Product height mm	27.432
Product length in	2.120
Product length mm	53.848
Product material	316 Stainless steel
Product width in	1.070
Product width mm	27.178
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M20x1.5
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
