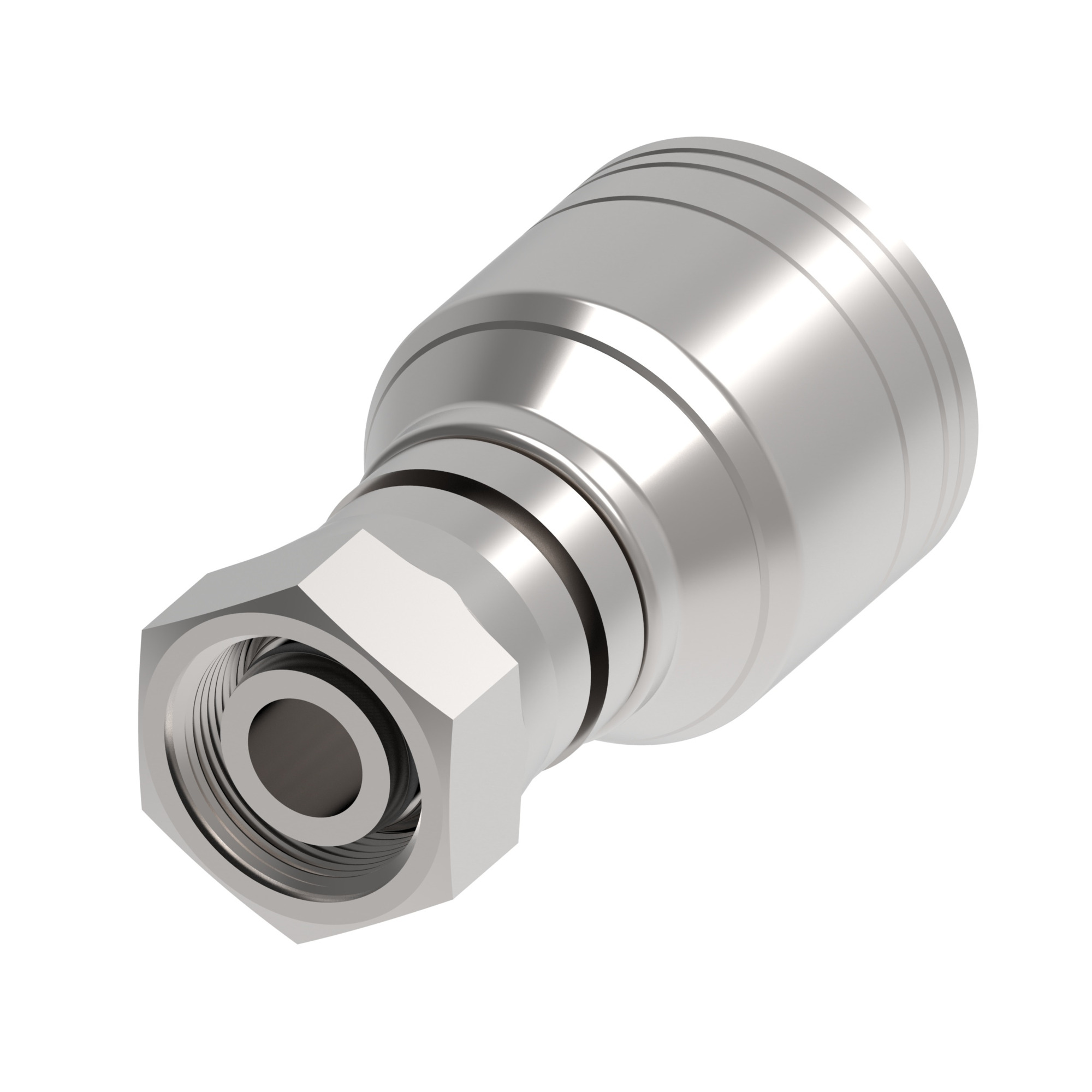

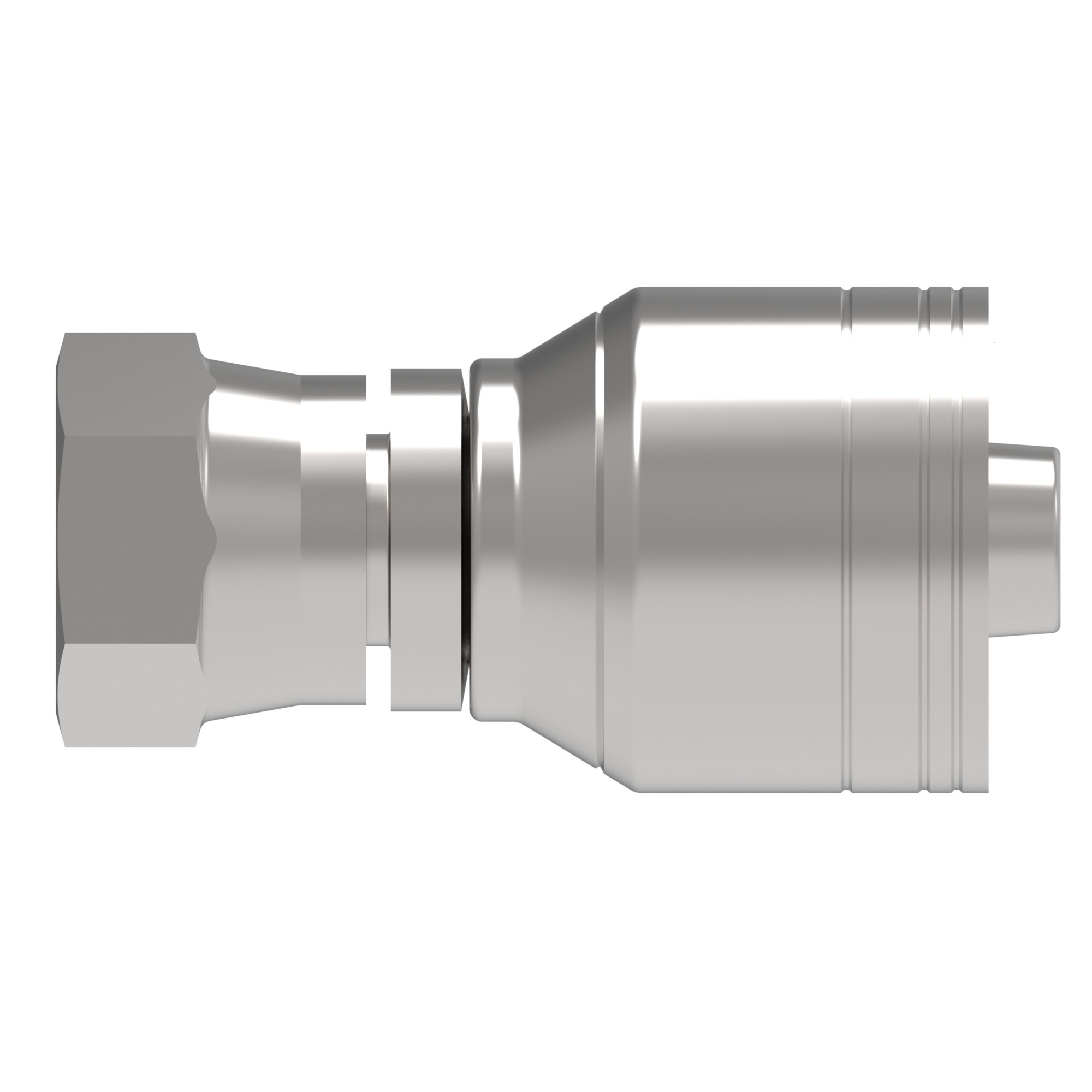

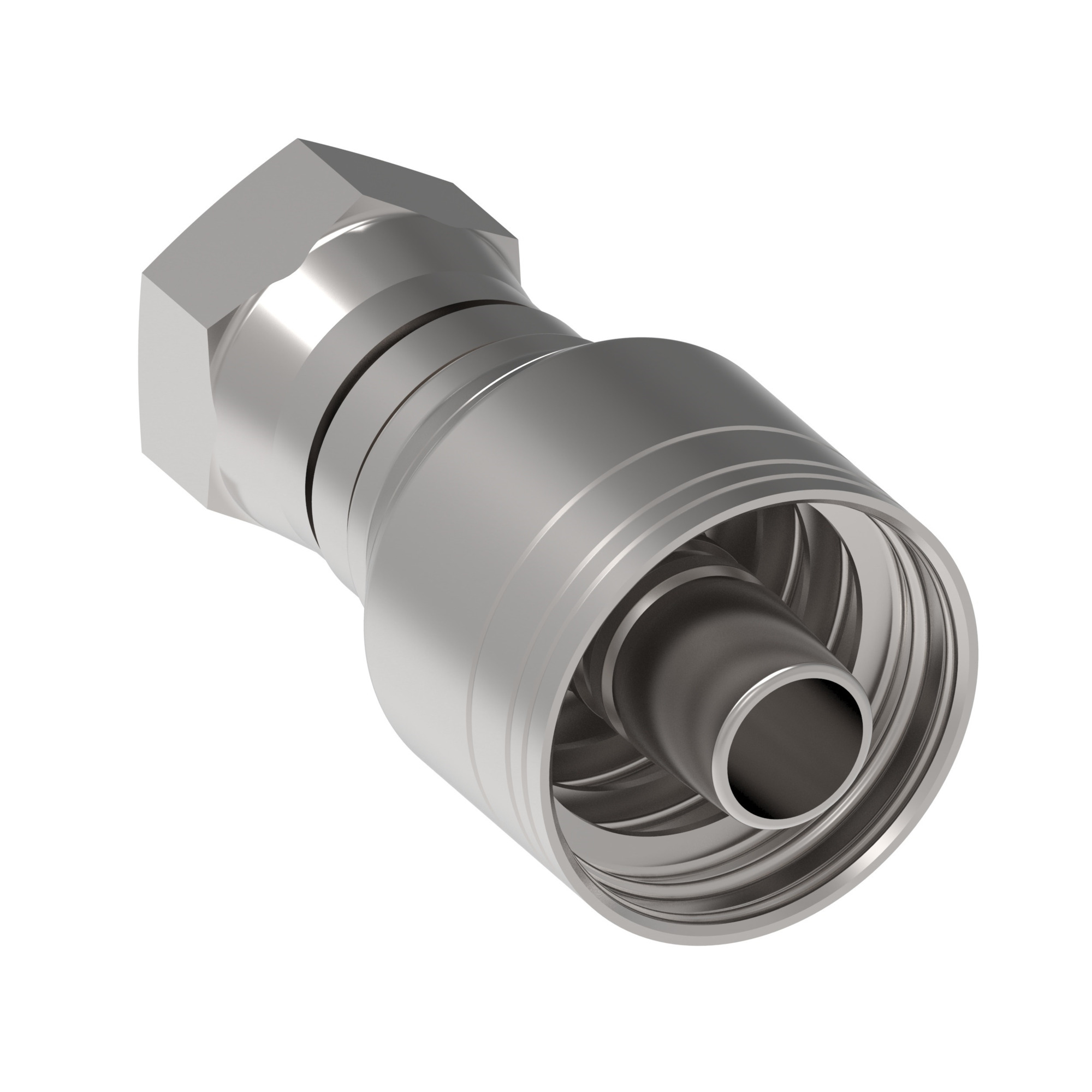

Danfoss 1AA8DL6C

HOSE FTG, 1A/06, DKOL/08, AP, STR

MPN: 1AA8DL6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8DL6C?

Danfoss HOSE FTG, 1A/06, DKOL/08, AP, STR, manufacturer part number 1AA8DL6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127594
A dimension IN	1.900
A dimension MM	48.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End size 1	-8
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.810
Hex size 1 MM	20.574
Hose cut off factor IN	1.060
Hose cut off factor MM	26.900
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	2.050
Product length mm	52.070
Product material	316 Stainless steel
Product width in	1.070
Product width mm	27.178
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M16x1.5
Working pressure max BAR	275
Working pressure max PSI	4000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
