Danfoss 1AA4MP4C

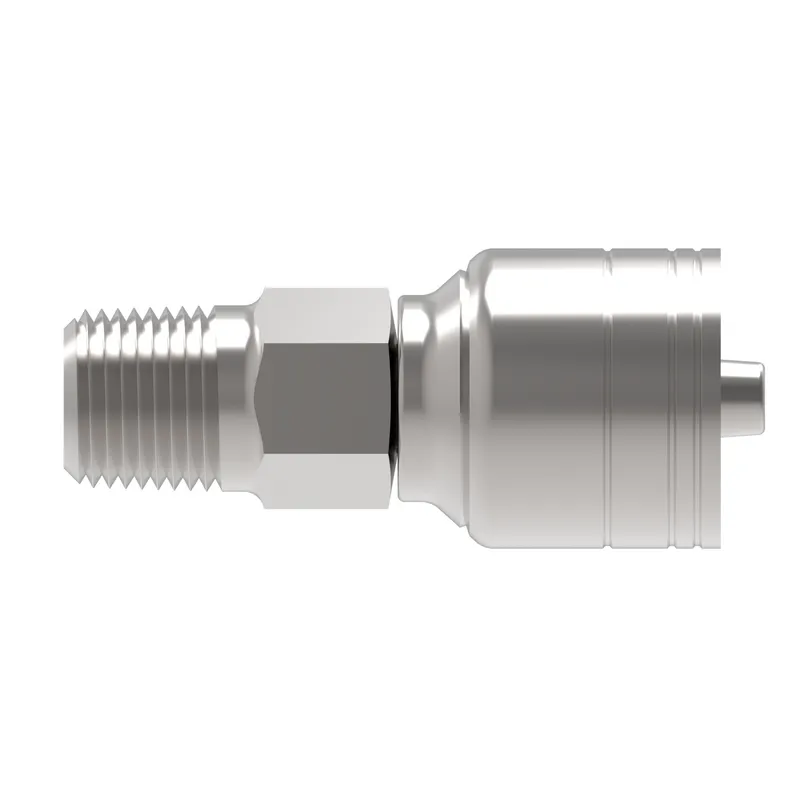

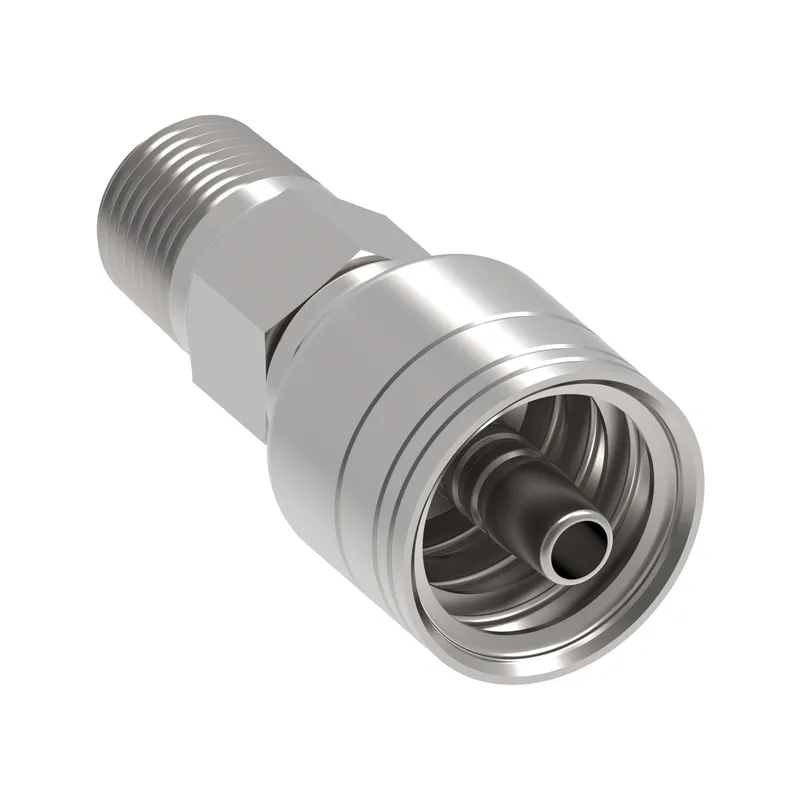

HOSE FTG, 1A/04, NPTF-M/04, AP, STR

MPN: 1AA4MP4C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4MP4C?

Danfoss HOSE FTG, 1A/04, NPTF-M/04, AP, STR, manufacturer part number 1AA4MP4C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169716
A dimension IN	1.930
A dimension MM	49.100
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End size 1	-4
End Type 1	Male pipe (NPTF)
Finish plating	Passivate
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	1.140
Hose cut off factor MM	28.900
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.532
Product length in	2.060
Product length mm	52.324
Product material	316 Stainless steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	1/4-18 NPTF
Working pressure max BAR	655
Working pressure max PSI	9100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA4MP4C: frequently asked questions

When can 1AA4MP4C be shipped?

1AA4MP4C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA4MP4C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA4MP4C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA4MP4C, subject to availability and destination.
