Danfoss 1AA4MP6

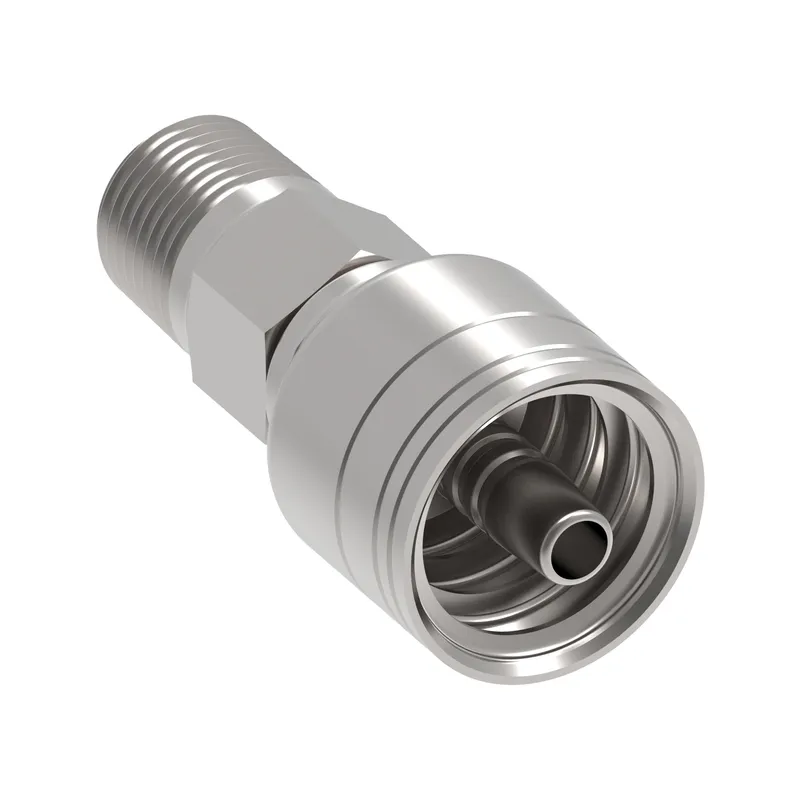

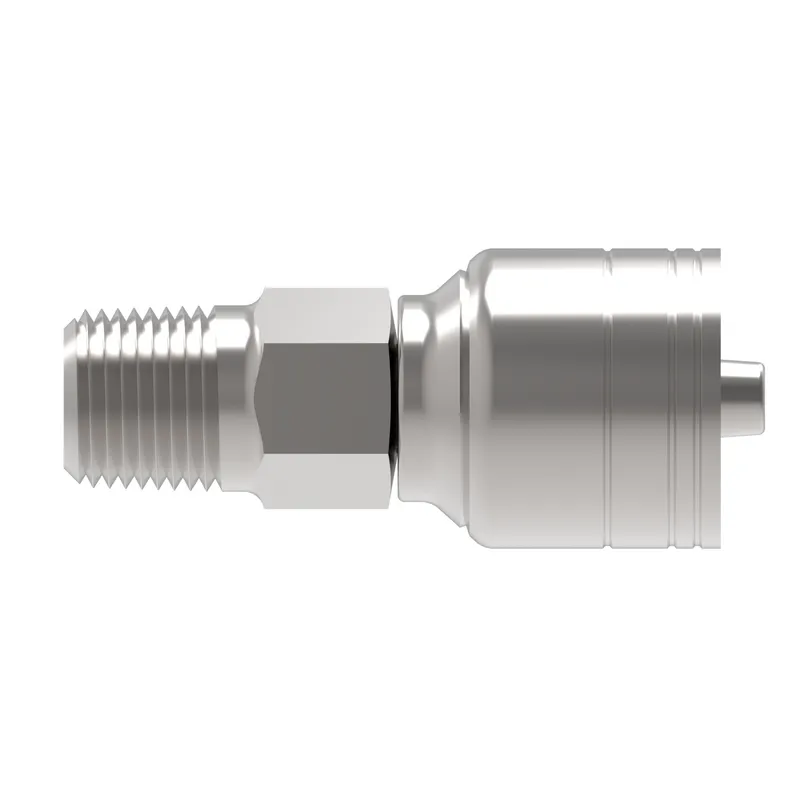

HOSE FTG, 1A/06, NPTF-M/04, CS, STR

MPN: 1AA4MP6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4MP6?

Danfoss HOSE FTG, 1A/06, NPTF-M/04, CS, STR, manufacturer part number 1AA4MP6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126702
A dimension IN	2.020
A dimension MM	51.400
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End size 1	-4
End Type 1	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 2 MM	17.000
Hose cut off factor IN	1.180
Hose cut off factor MM	30.100
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	2.180
Product length mm	55.372
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	1/4-18 NPTF
Working pressure max BAR	655
Working pressure max PSI	9100
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA4MP6: frequently asked questions

When can 1AA4MP6 be shipped?

1AA4MP6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA4MP6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA4MP6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA4MP6, subject to availability and destination.
