Danfoss 1AA4MB4

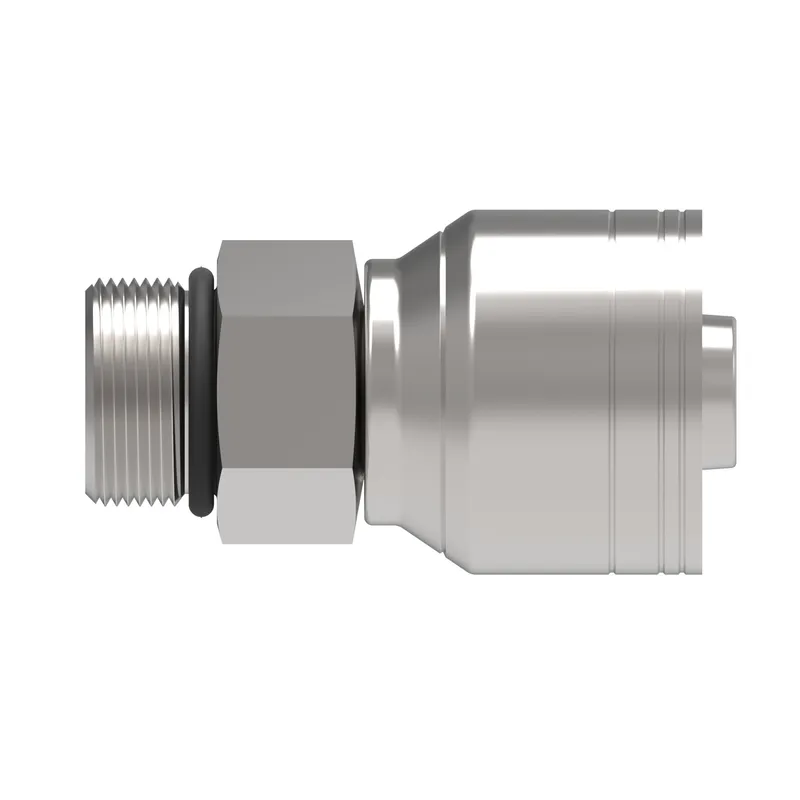

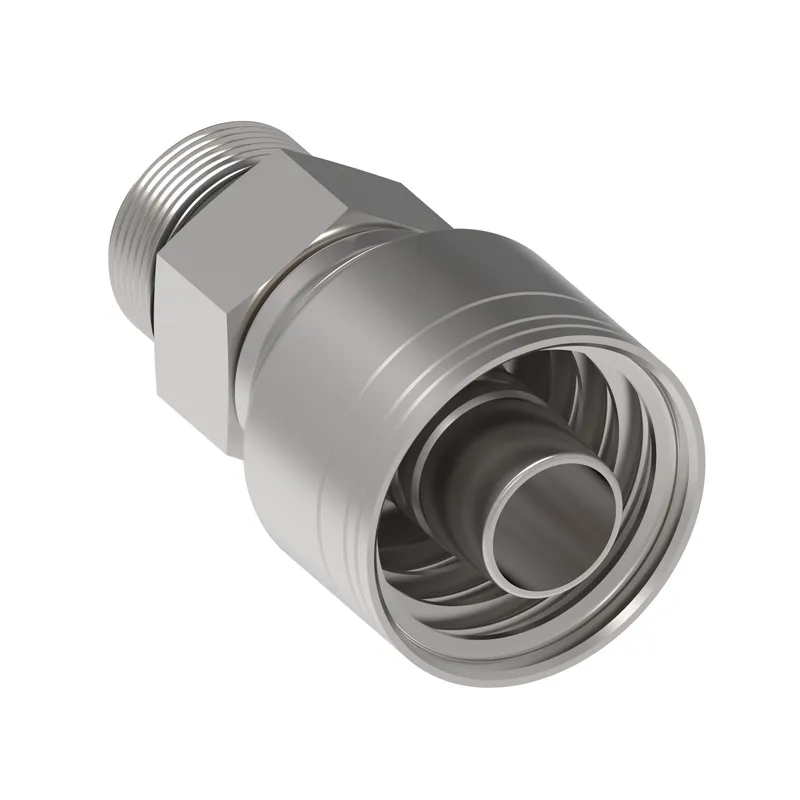

HOSE FTG, 1A/04, ORB-M/04, CS, STR

MPN: 1AA4MB4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4MB4?

Danfoss HOSE FTG, 1A/04, ORB-M/04, CS, STR, manufacturer part number 1AA4MB4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126627
A dimension IN	1.720
A dimension MM	43.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	13-15 lb-ft(18-20 Nm)
End size 1	-4
End Type 1	Male ORB ISO 11926-3
Finish plating	Dura-Kote
Hex size 2 MM	14.000
Hose cut off factor IN	0.920
Hose cut off factor MM	23.400
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	1.840
Product length mm	46.736
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread size 1	7/16-20 UNF
Working pressure max BAR	345
Working pressure max PSI	5000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA4MB4: frequently asked questions

When can 1AA4MB4 be shipped?

1AA4MB4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA4MB4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA4MB4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA4MB4, subject to availability and destination.
