Danfoss 1AA4FRB6

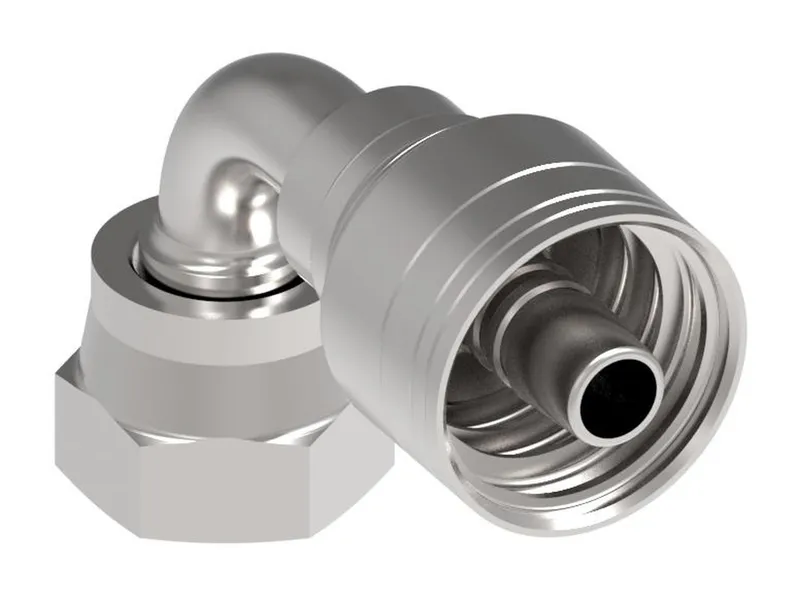

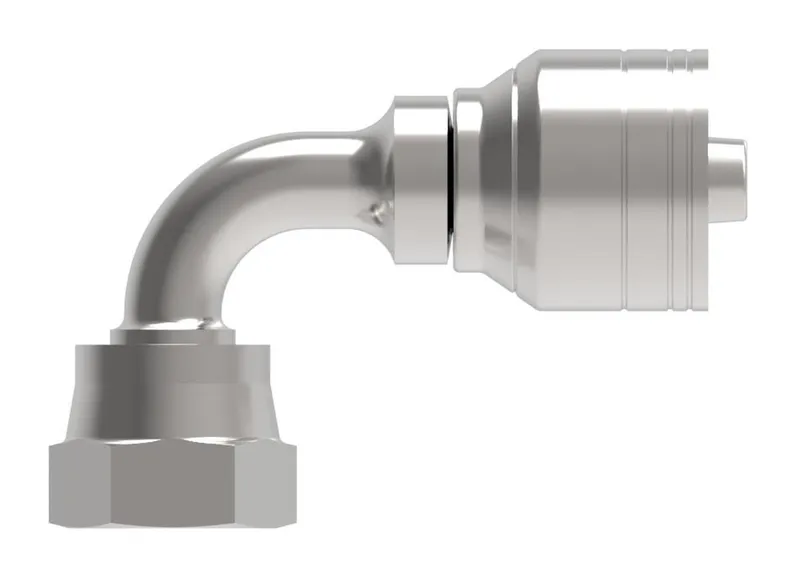

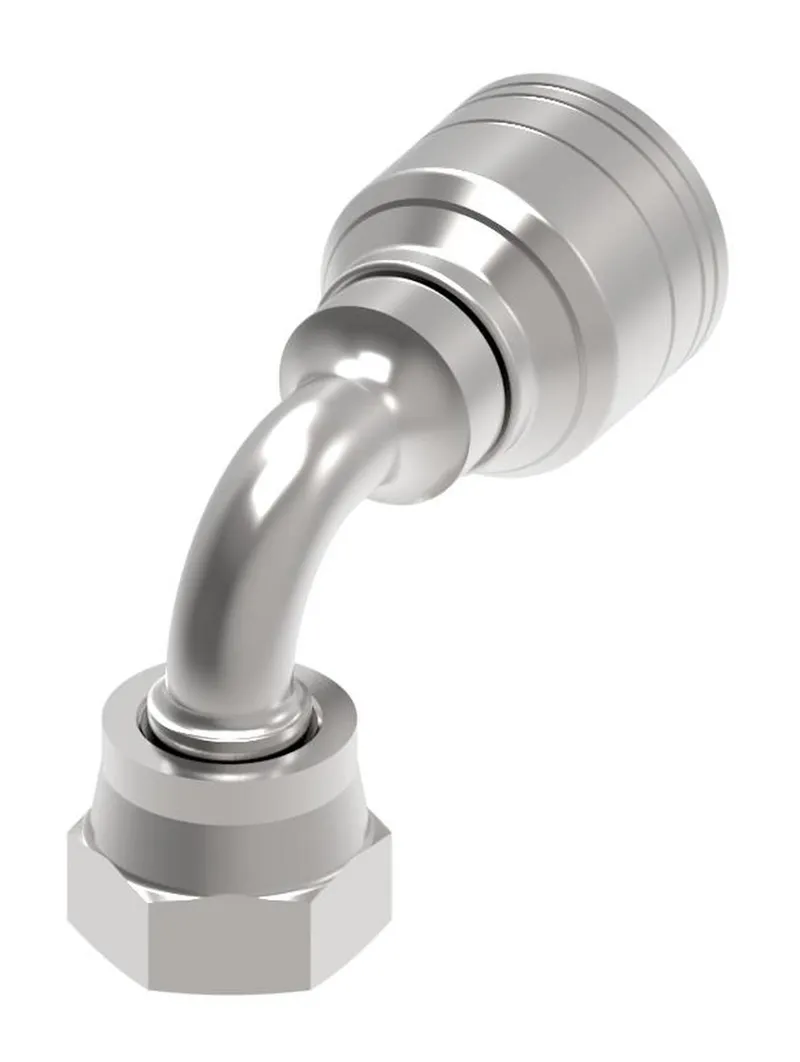

HOSE FTG, 1A/06, ORS-F/04, CS, 90D

MPN: 1AA4FRB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FRB6?

Danfoss HOSE FTG, 1A/06, ORS-F/04, CS, 90D, manufacturer part number 1AA4FRB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126580
A dimension IN	2.050
A dimension MM	52.100
Angle shape	90 Degree
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.820
Drop dimension MM	20.80
End connection torque	10-12 lb-ft(14-16 Nm)
End size 1	-4
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.210
Hose cut off factor MM	30.800
Hose size	-6
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.680
Product height mm	42.672
Product length in	2.540
Product length mm	64.516
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	9/16-18 UNF
Working pressure max BAR	621.00
Working pressure max PSI	9100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
