Danfoss (Drives)

Danfoss 1AA12MB8

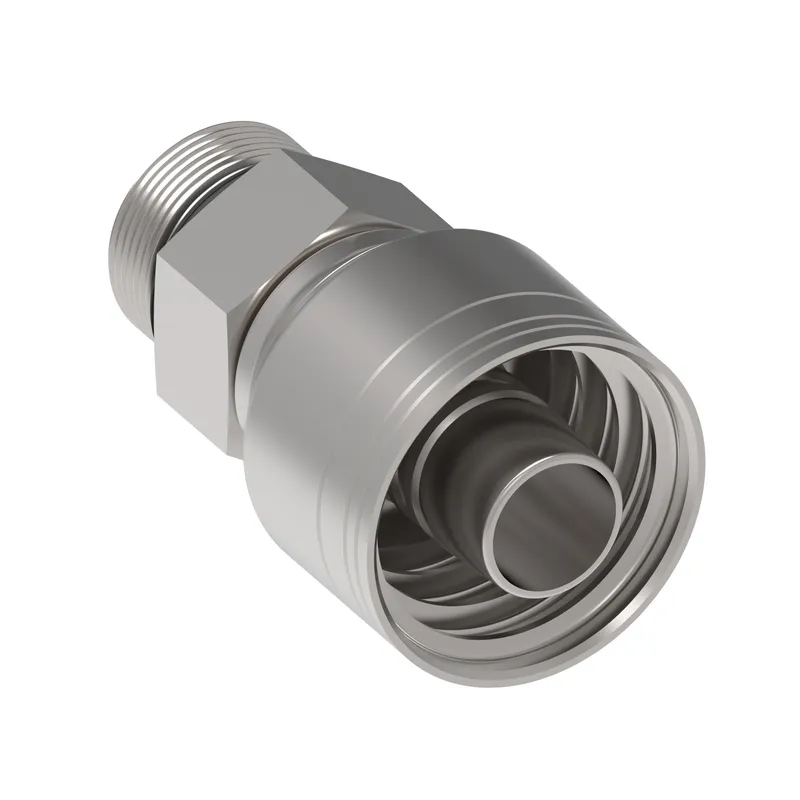

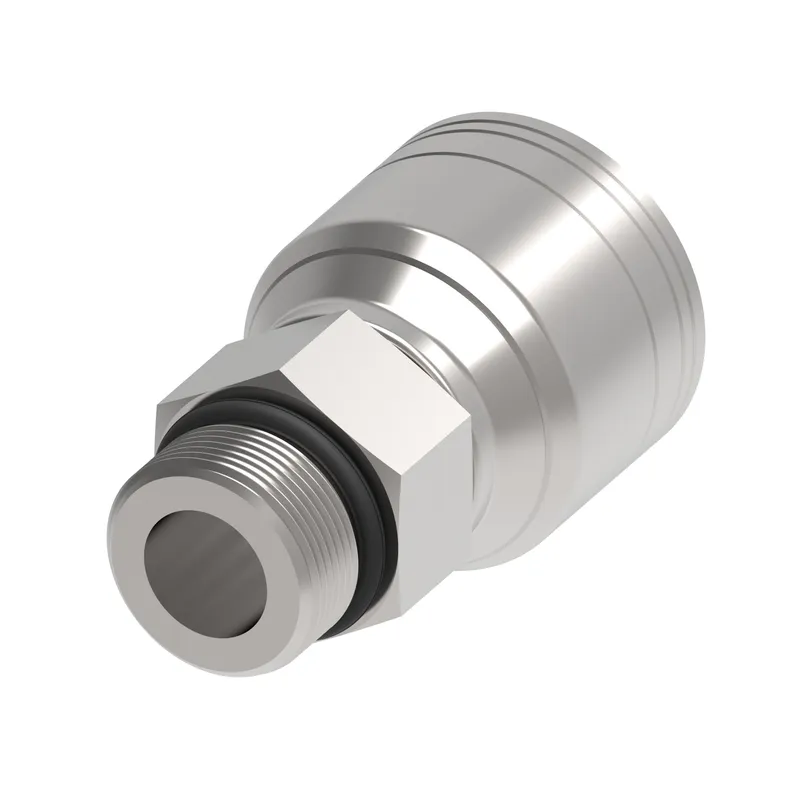

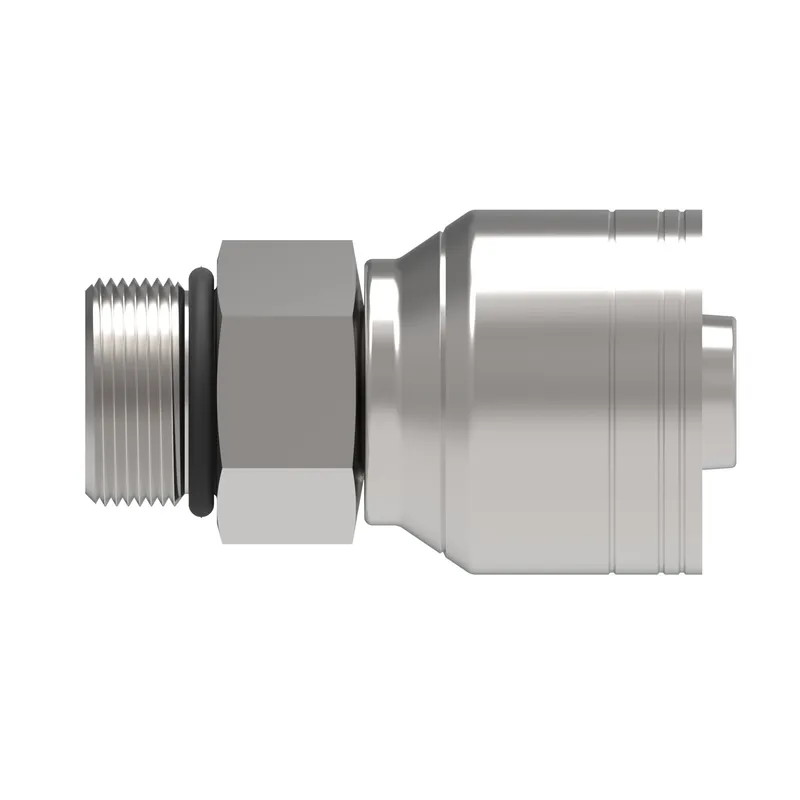

HOSE FTG, 1A/08, ORB-M/12, CS, STR

MPN: 1AA12MB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12MB8?

Danfoss HOSE FTG, 1A/08, ORB-M/12, CS, STR, manufacturer part number 1AA12MB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125736
A dimension IN	2.220
A dimension MM	56.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	68-75 lb-ft(93-101 Nm)
End size 1	-12
End Type 1	Male ORB ISO 11926-3
Finish plating	Dura-Kote
Hex size 2 MM	32.000
Hose cut off factor IN	1.220
Hose cut off factor MM	31.000
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.250
Product height mm	31.750
Product length in	2.390
Product length mm	60.706
Product material	Carbon steel
Product width in	1.250
Product width mm	31.75
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread size 1	1 1/16-12 UN
Working pressure max BAR	240.00
Working pressure max PSI	3500.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
