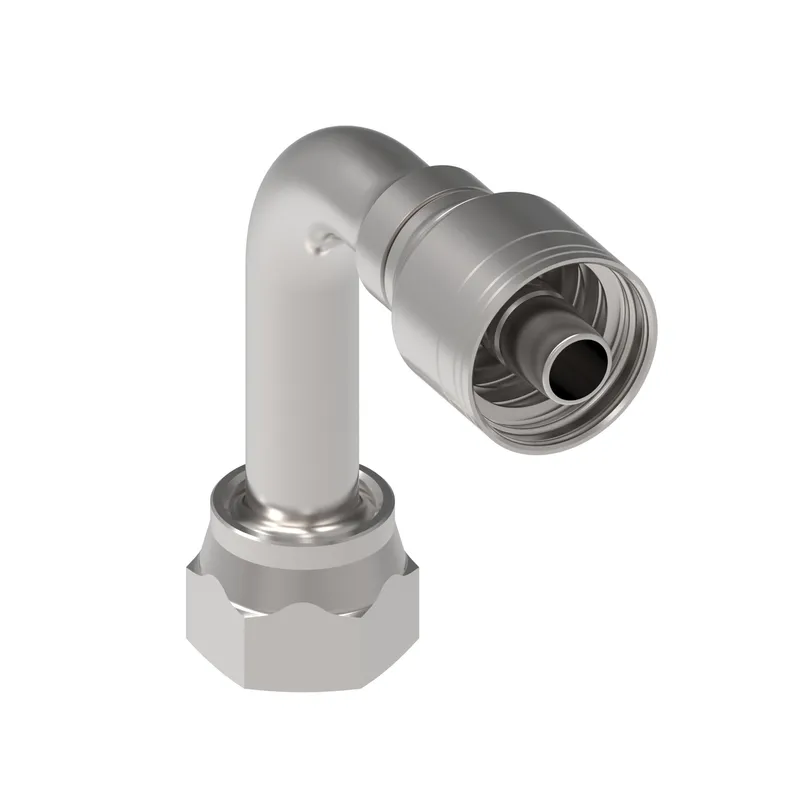

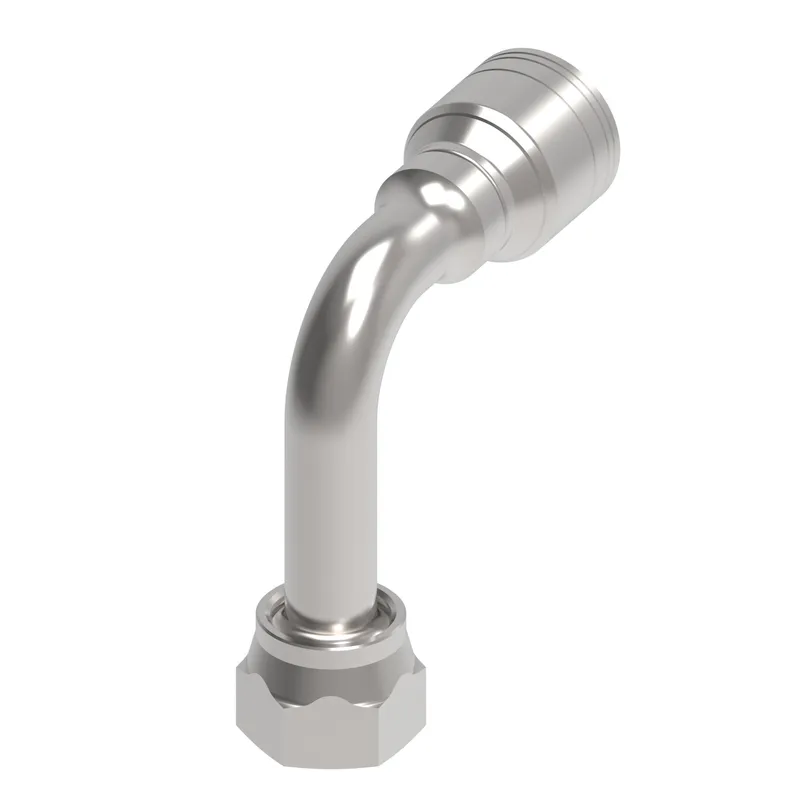

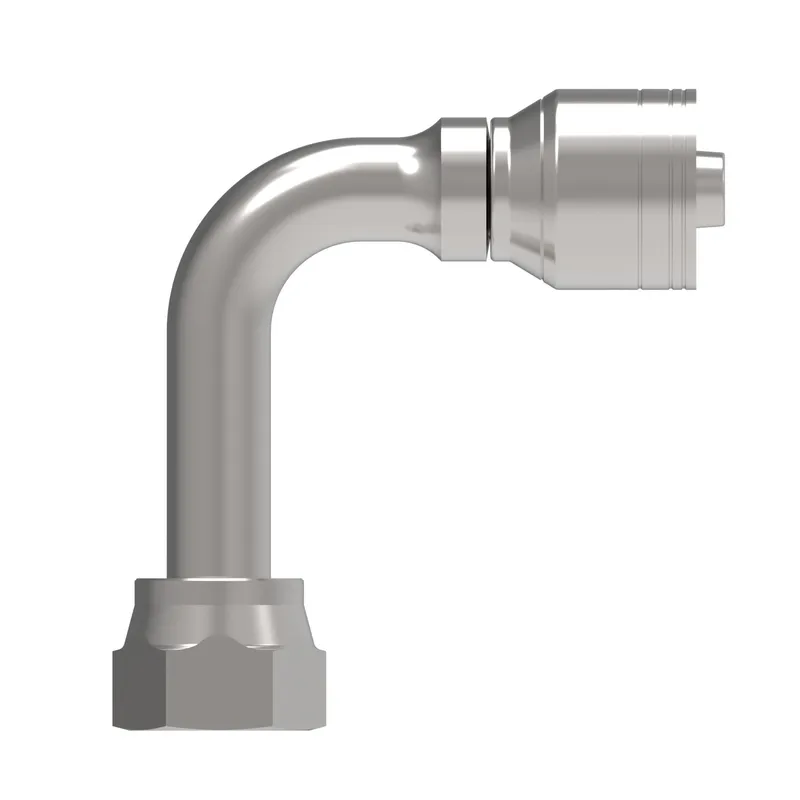

Danfoss 1AA12FRC10

HOSE FTG, 1A/10, ORS-F/12, CS, 90D

MPN: 1AA12FRC10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12FRC10?

Danfoss HOSE FTG, 1A/10, ORS-F/12, CS, 90D, manufacturer part number 1AA12FRC10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.310
A dimension MM	84.200
Angle shape	90 Degree
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	2661 (Size dependent), FC310, FC510, FC579, FC611, FC619
Construction Style	Crimp
Drop dimension IN	3.780
Drop dimension MM	96.01
End connection torque	65-70 lb-ft(88-95 Nm)
End size 1	-14
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 2 IN	1.375
Hex size 2 MM	34.925
Hose cut off factor IN	2.290
Hose cut off factor MM	58.166
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.700
Product height in	5.040
Product height mm	128.016
Product length in	4.130
Product length mm	104.902
Product material	Carbon steel
Product width in	1.386
Product width mm	35.204
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 3/16-12 UN
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA12FRC10: frequently asked questions

When can 1AA12FRC10 be shipped?

1AA12FRC10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA12FRC10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA12FRC10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA12FRC10, subject to availability and destination.
