Danfoss 1AA12FRB8

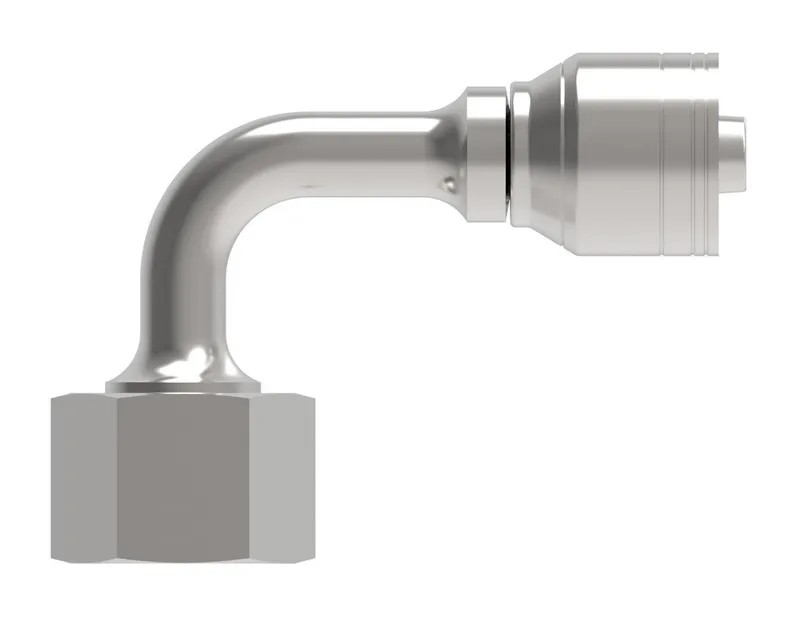

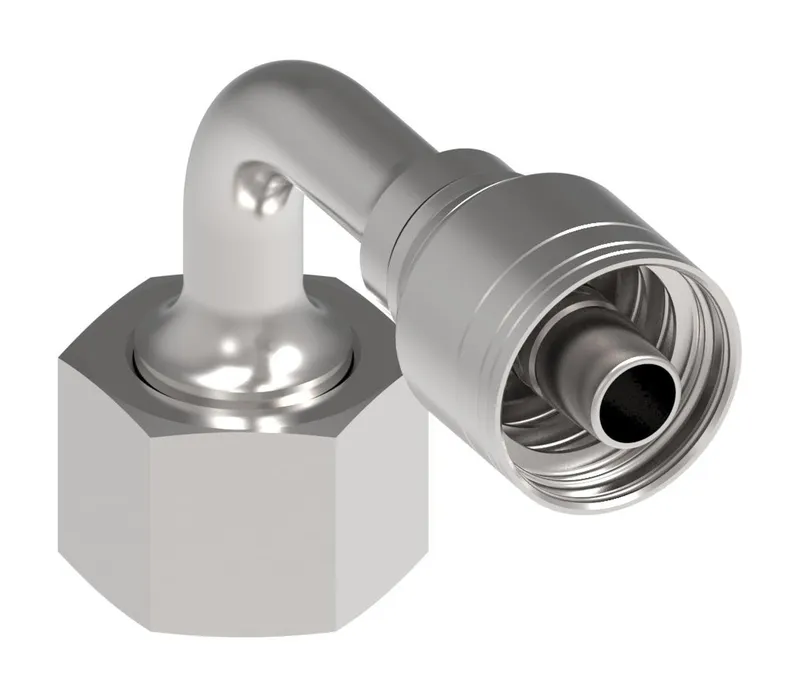

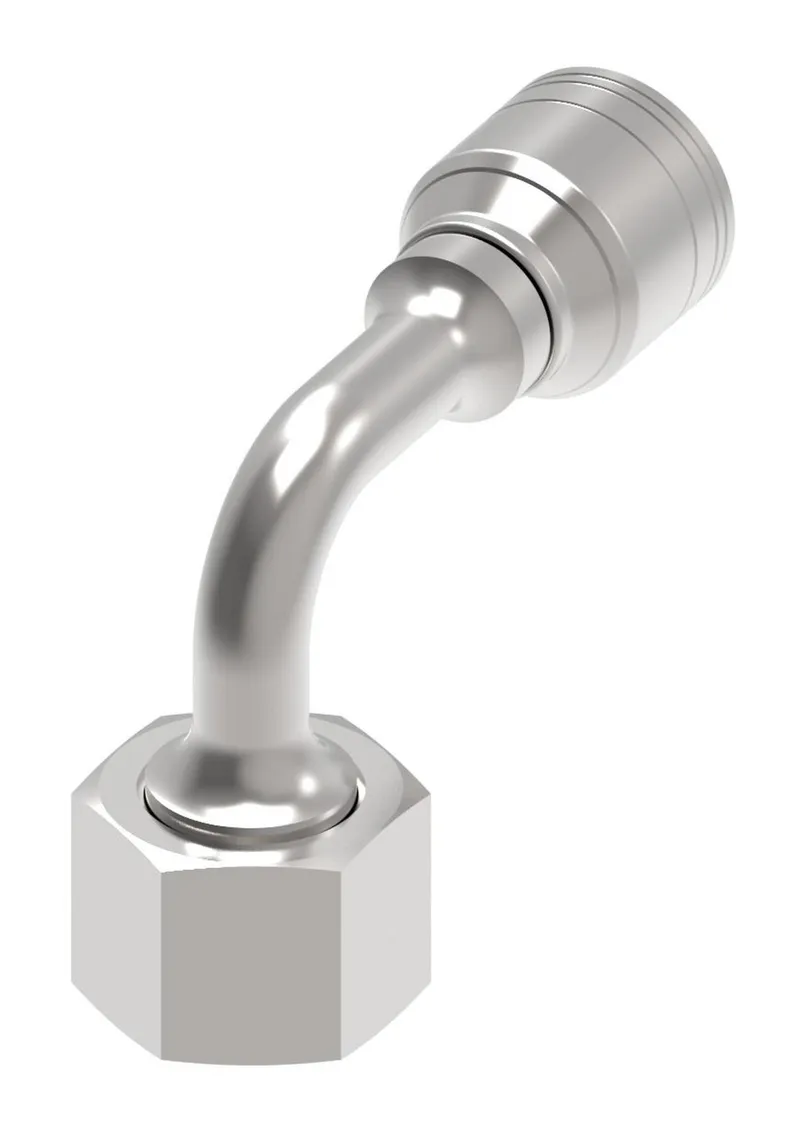

HOSE FTG, 1A/08, ORS-F/12, CS, 90D

MPN: 1AA12FRB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12FRB8?

Danfoss HOSE FTG, 1A/08, ORS-F/12, CS, 90D, manufacturer part number 1AA12FRB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125682
A dimension IN	3.210
A dimension MM	81.600
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.880
Drop dimension MM	47.80
End connection torque	65-70 lb-ft(88-95 Nm)
End size 1	-12
End Type 1	Female ORFS swivel
Finish plating	Zinc plating
Hose cut off factor IN	2.210
Hose cut off factor MM	56.100
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	3.060
Product height mm	77.724
Product length in	4.060
Product length mm	103.124
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Series	1A/Z Series
Thread size 1	1 3/16-12 UN
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
