Danfoss 1A12DS8C

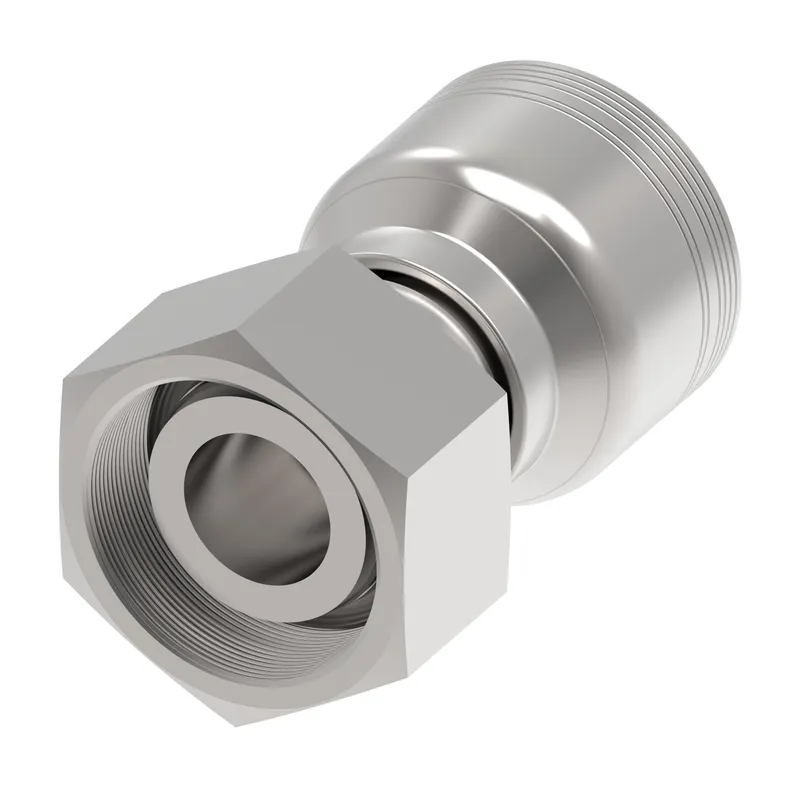

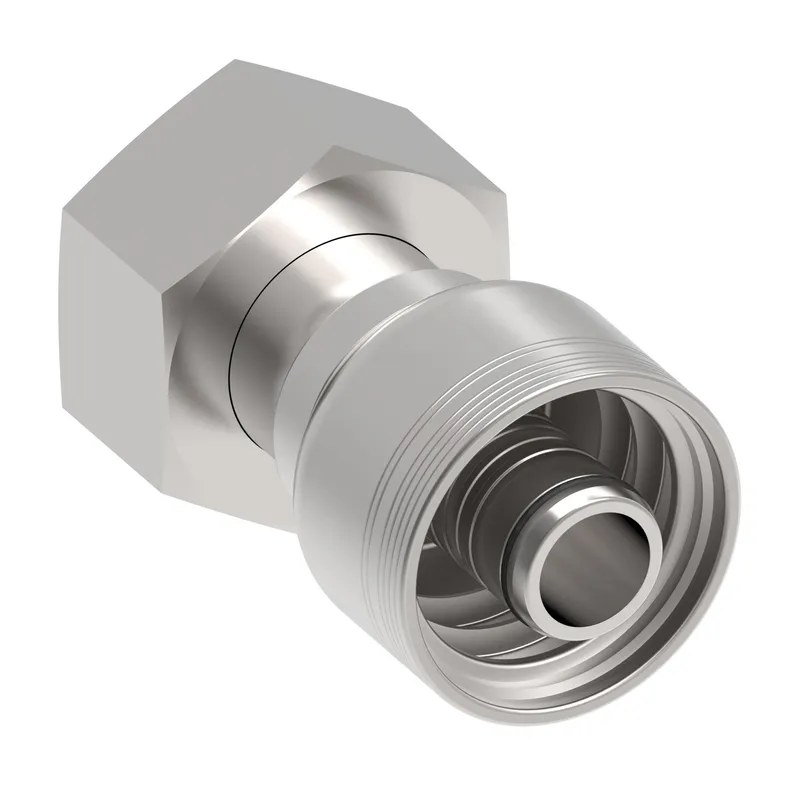

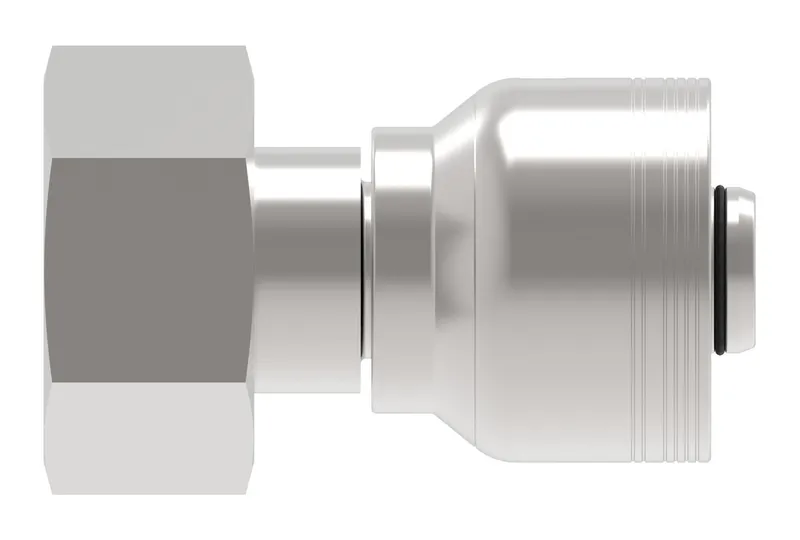

HOSE FTG, 1A/08, DKOH-B/12, AP, STR

MPN: 1A12DS8C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A12DS8C?

Danfoss HOSE FTG, 1A/08, DKOH-B/12, AP, STR, manufacturer part number 1A12DS8C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.460
A dimension MM	62.400
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-12
End Type 1	24 deg. DKO swivel heavy duty
Hose cut off factor IN	1.290
Hose cut off factor MM	32.766
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product height in	1.180
Product height mm	29.972
Product length in	2.460
Product length mm	62.484
Product material	316 Stainless steel
Product width in	1.180
Product width mm	29.972
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M24x1.5
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
