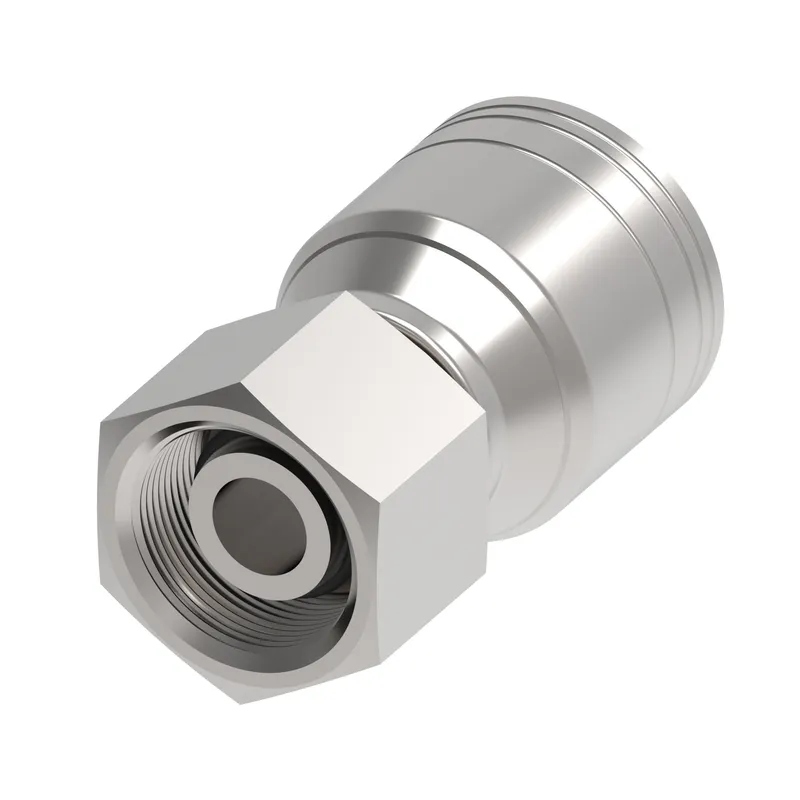

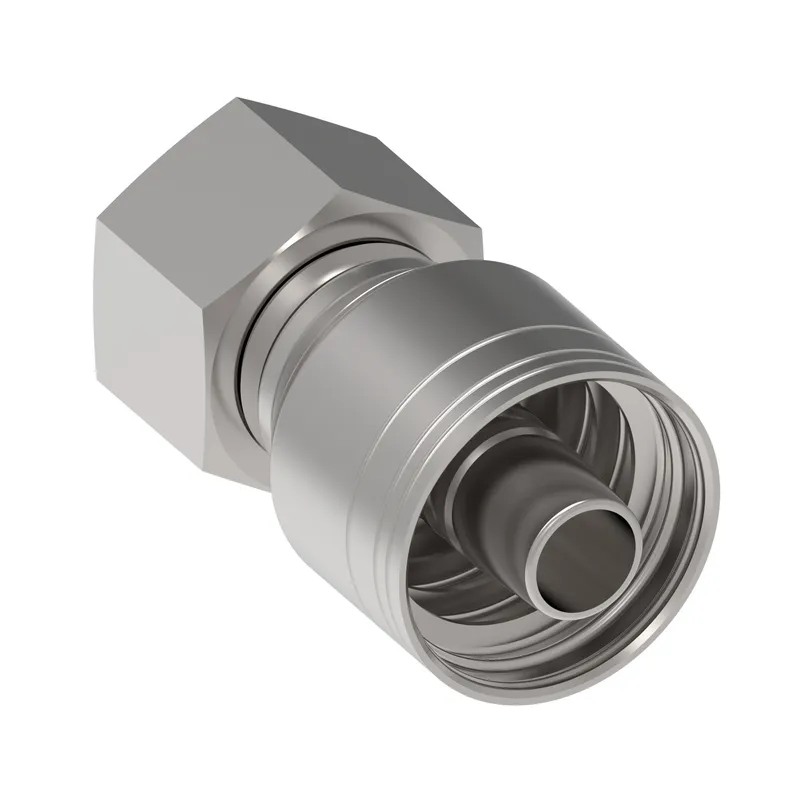

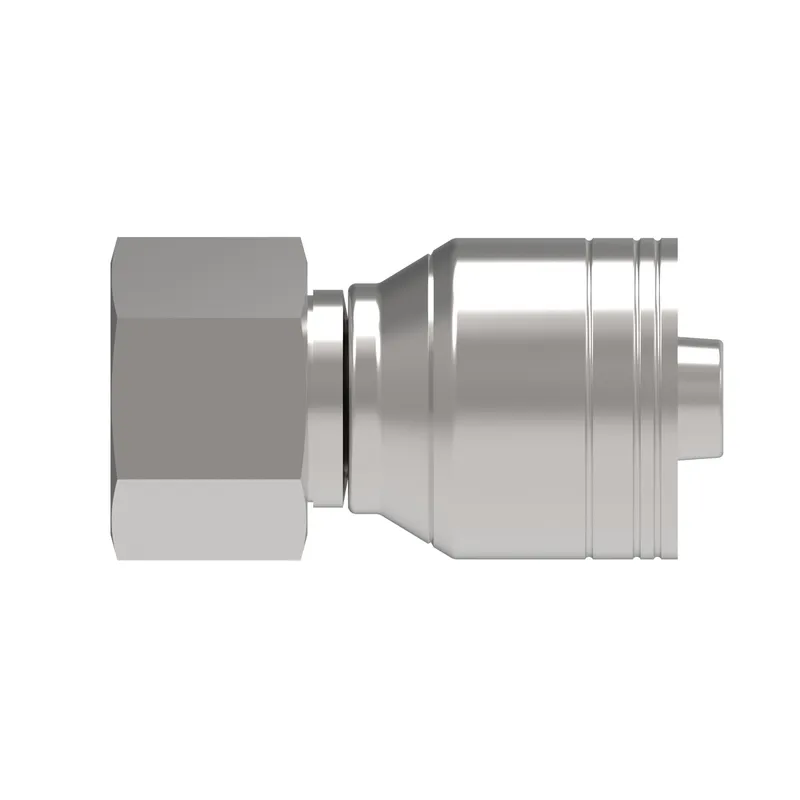

Danfoss 1A12DS10

HOSE FTG, 1A/10, DKOH-B/12, CS, STR

MPN: 1A12DS10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A12DS10?

Danfoss HOSE FTG, 1A/10, DKOH-B/12, CS, STR, manufacturer part number 1A12DS10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.210
A dimension MM	56.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End size 1	-12
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.180
Hex size 1 MM	29.972
Hose cut off factor IN	1.050
Hose cut off factor MM	26.700
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.180
Product height mm	29.972
Product length in	2.210
Product length mm	56.134
Product material	Carbon steel
Product width in	1.180
Product width mm	29.972
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M24x1.5
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1A12DS10: frequently asked questions

When can 1A12DS10 be shipped?

1A12DS10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A12DS10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A12DS10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A12DS10, subject to availability and destination.
