Danfoss 158-3712-001

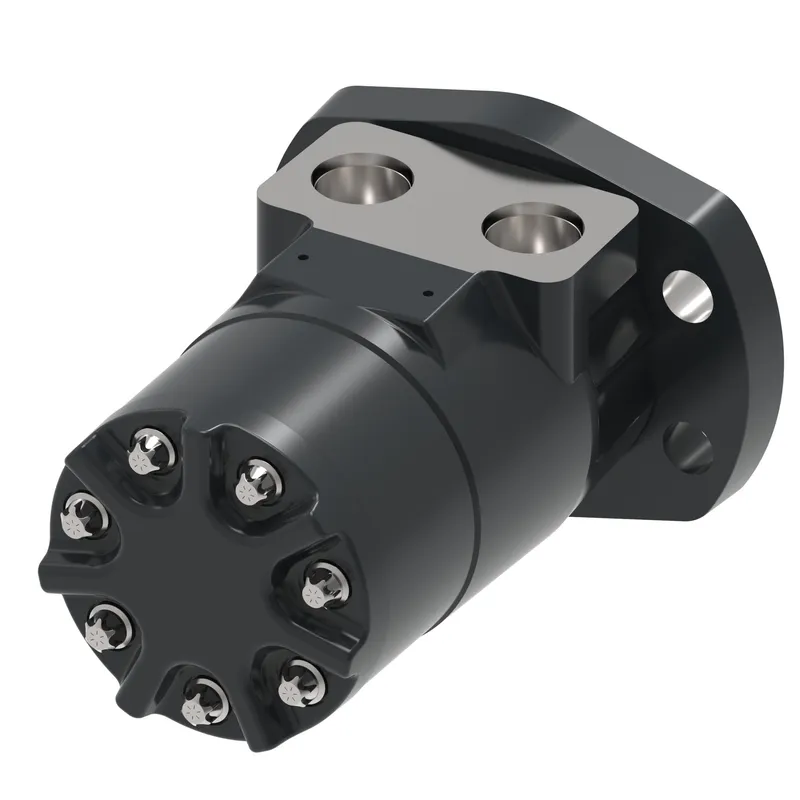

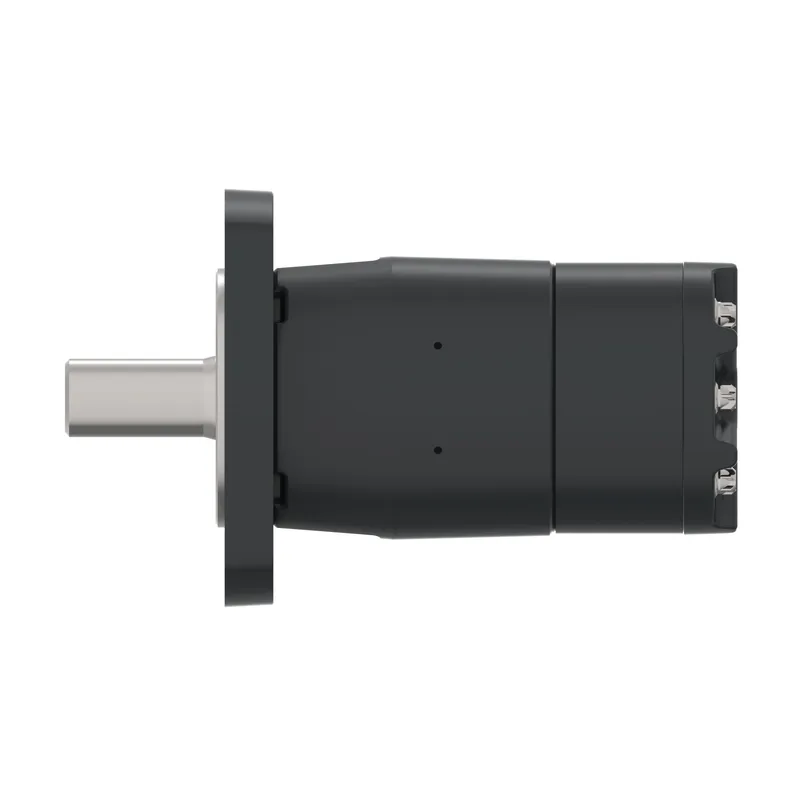

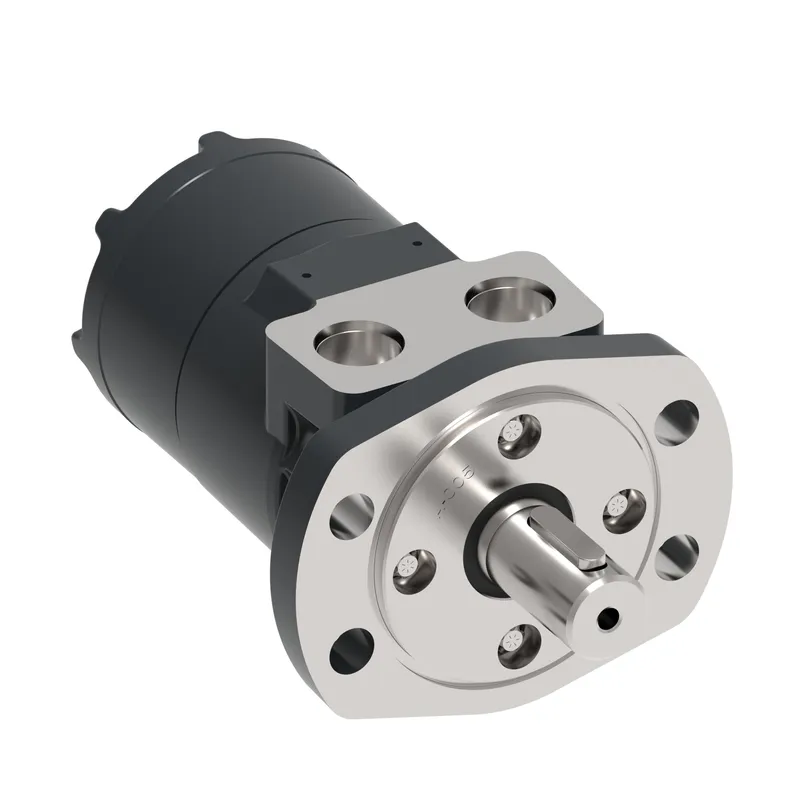

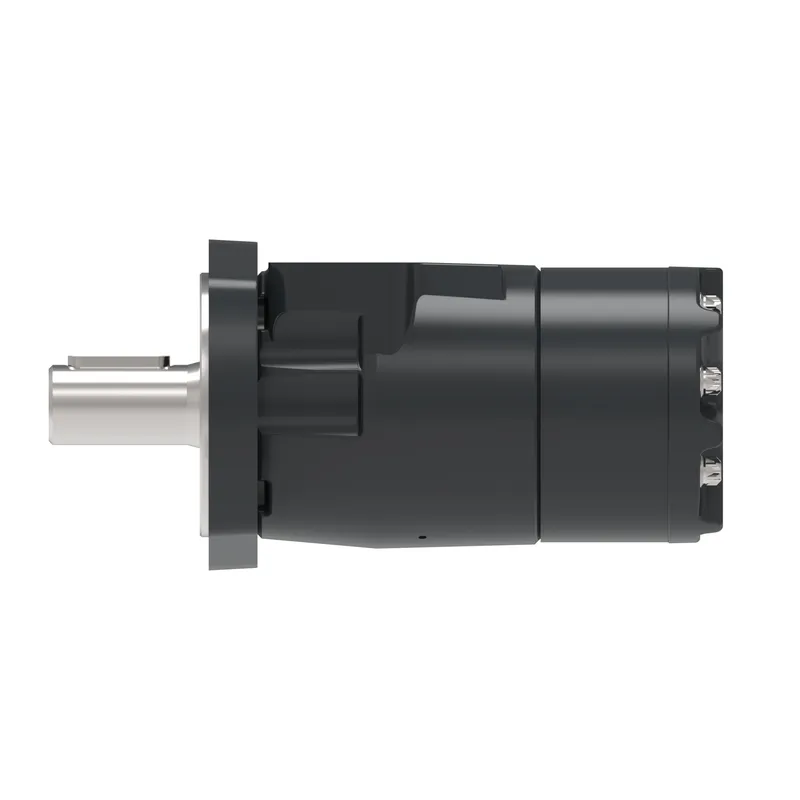

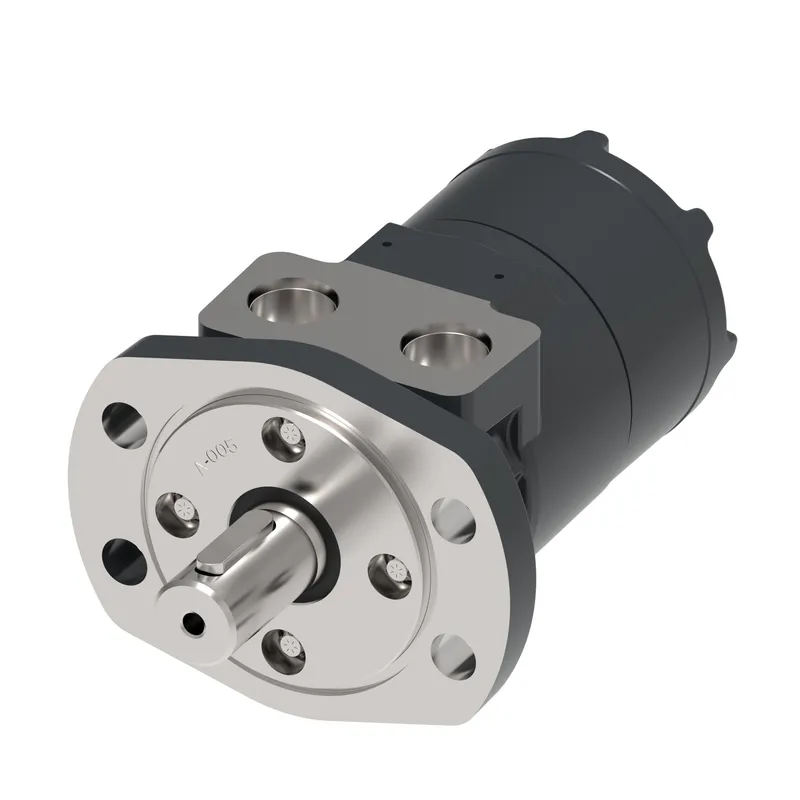

MOTOR-ORBITAL,T SERIES 130 [8.0], MT0080EA24AF02000000APAD0AU32A

MPN
158-3712-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-3712-001?

Danfoss MOTOR-ORBITAL,T SERIES 130 [8.0], MT0080EA24AF02000000APAD0AU32A, manufacturer part number 158-3712-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0080EA24AF02000000APAD0AU32A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Motor size130
Geometric displacement [cm3/r [in3/r]]131 [8.0]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Magneto
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54]
Shaft typeStraight
Shaft dimensionDia. 25 mm, M8 x 1.25-6H thread in shaft end
Shaft KeySquare key, 8 x 30 mm
Main port thread typeBSP
Main port styleSideport - aligned
Main port dimensionG 1/2
Drain Port DimensionG 1/4
Brake Release Port Dimensionn/a
PaintedYes
Paint informationExpoxy Coated, Black
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit9900862-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionSpec. Component
SensorNone
PackagingSingle pack
Name TagCustomized
Design code01
BrandDanfoss
Sub brandChar-Lynn
