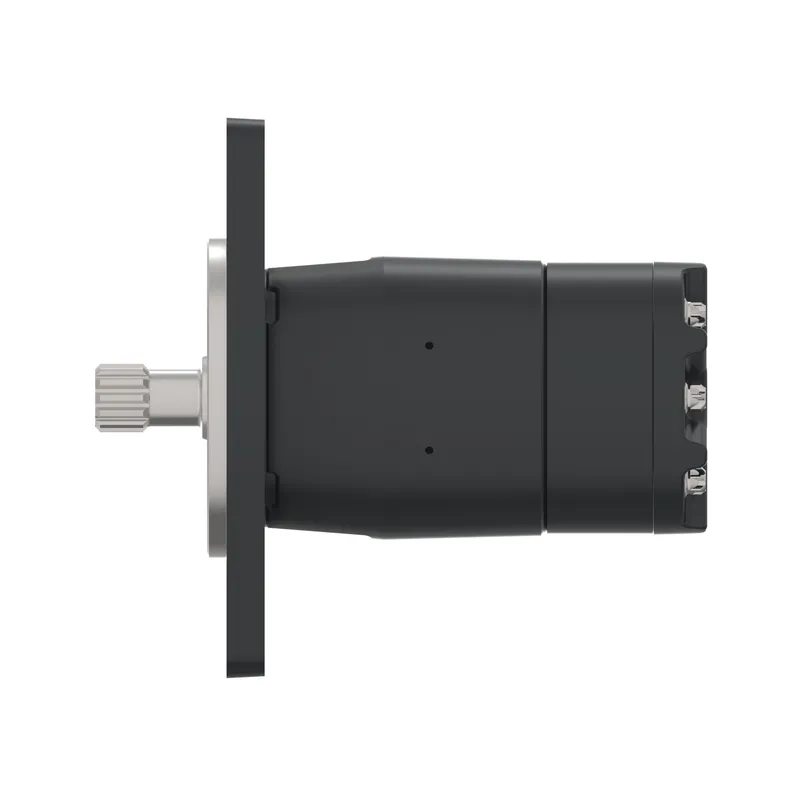

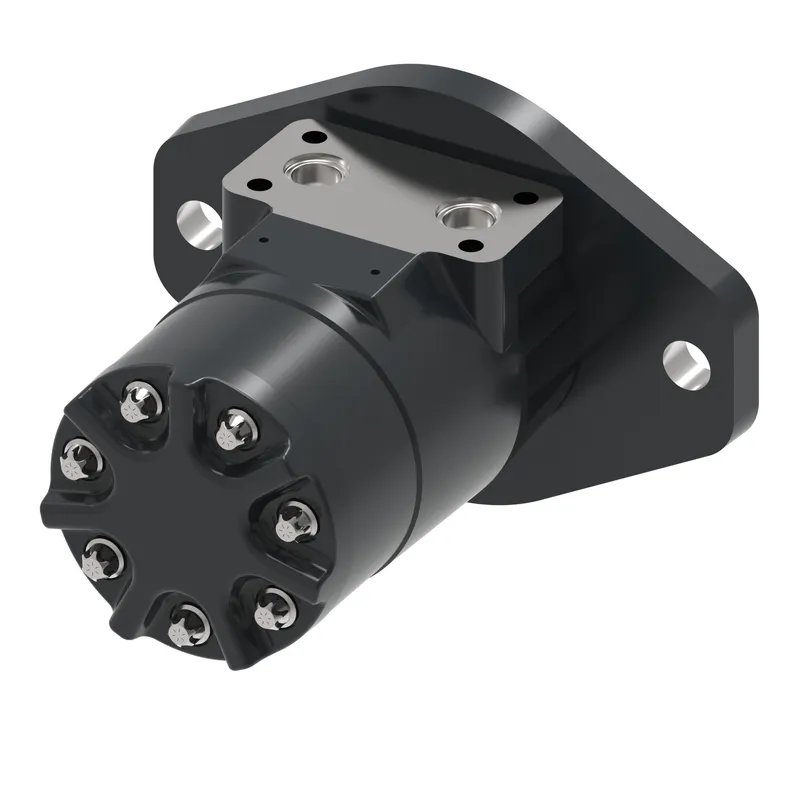

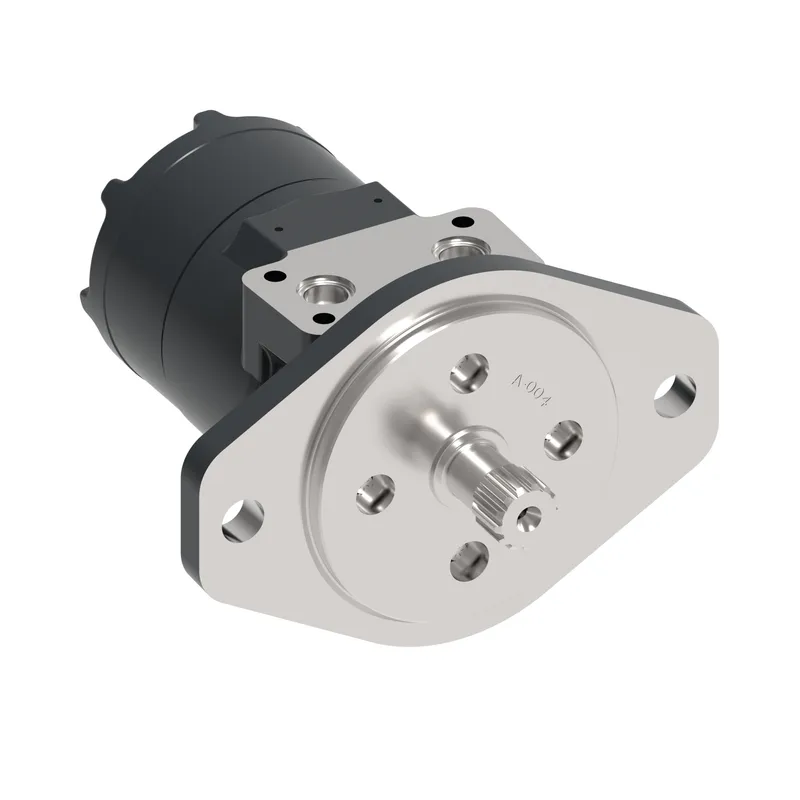

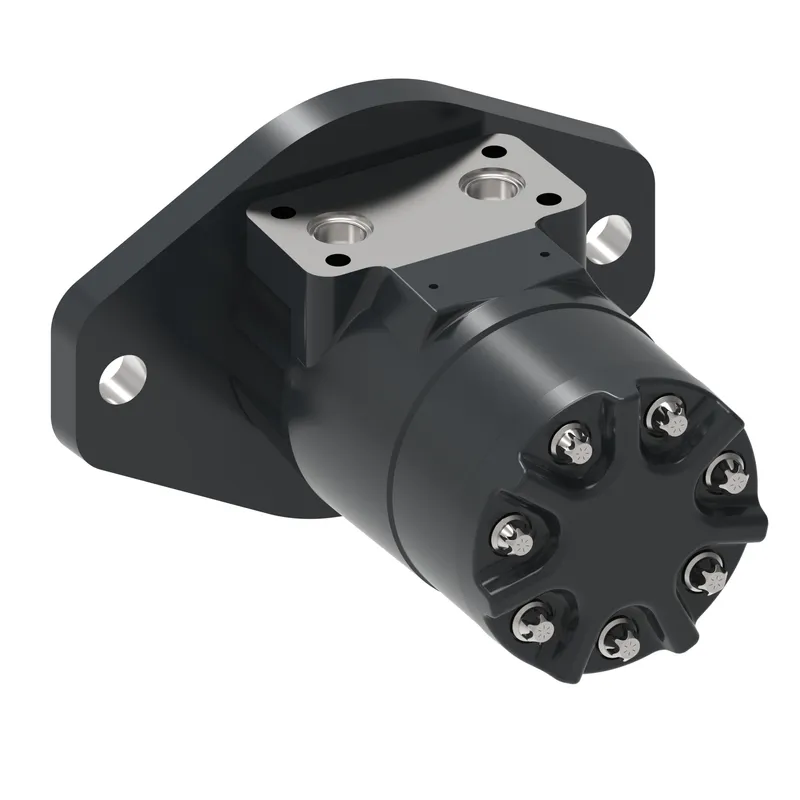

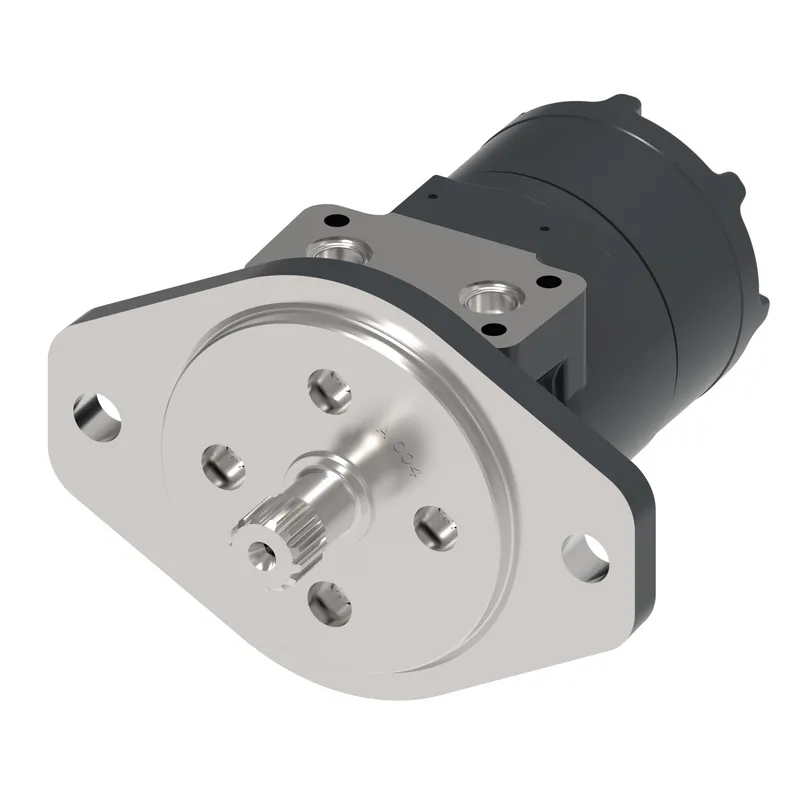

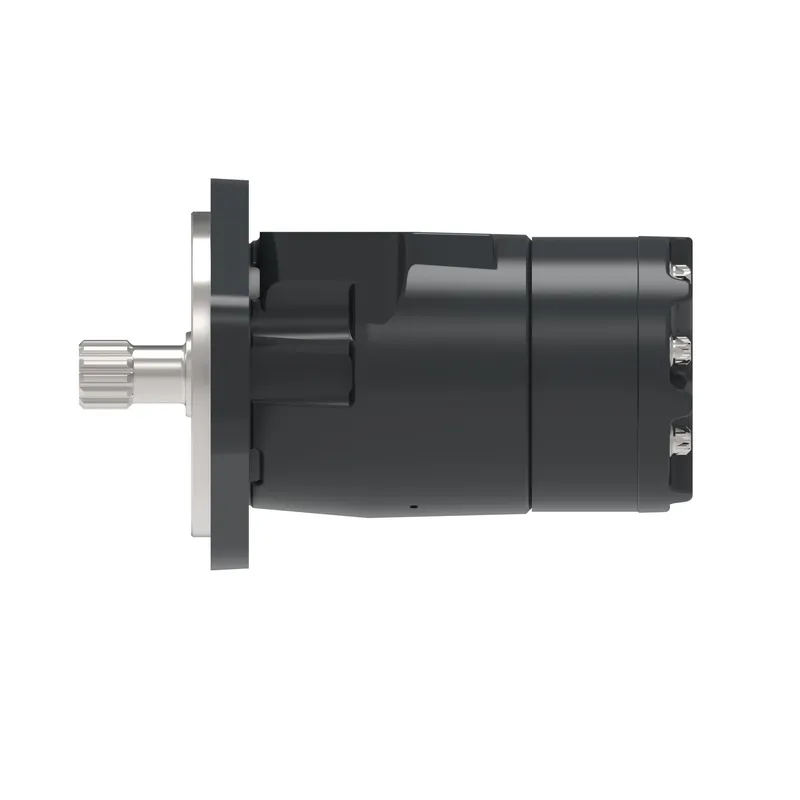

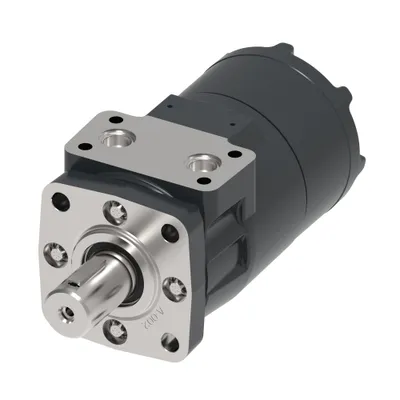

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096DDA8AC0000000000000AA00A

Name: Danfoss 158-3704-001 – MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096DDA8AC0000000000000AA00A
Brand: Danfoss (Drives)
SKU: 158-3704-001

MPN: 158-3704-001 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss orbital motor quick selector
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 158-3704-001 be shipped?

158-3704-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 158-3704-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 158-3704-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 158-3704-001, subject to availability and destination.

Danfoss MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096DDA8AC0000000000000AA00A, manufacturer part number 158-3704-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MT0096DDA8AC0000000000000AA00A
Motor Series	T Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Mounting type	2 s ductile p102 b146 h14
Motor size	160
Geometric displacement [cm3/r [in3/r]]	158 [9.6]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B - Spec. Component
Shaft type	Splined
Shaft dimension	Dia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	Manifold
Main port style	Sideport - aligned
Main port dimension	0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	9900804-000
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	01
Brand	Danfoss
Seal options	Standard seals
Series	T series motor
Sub brand	Char-Lynn
