Danfoss 158-3707-001

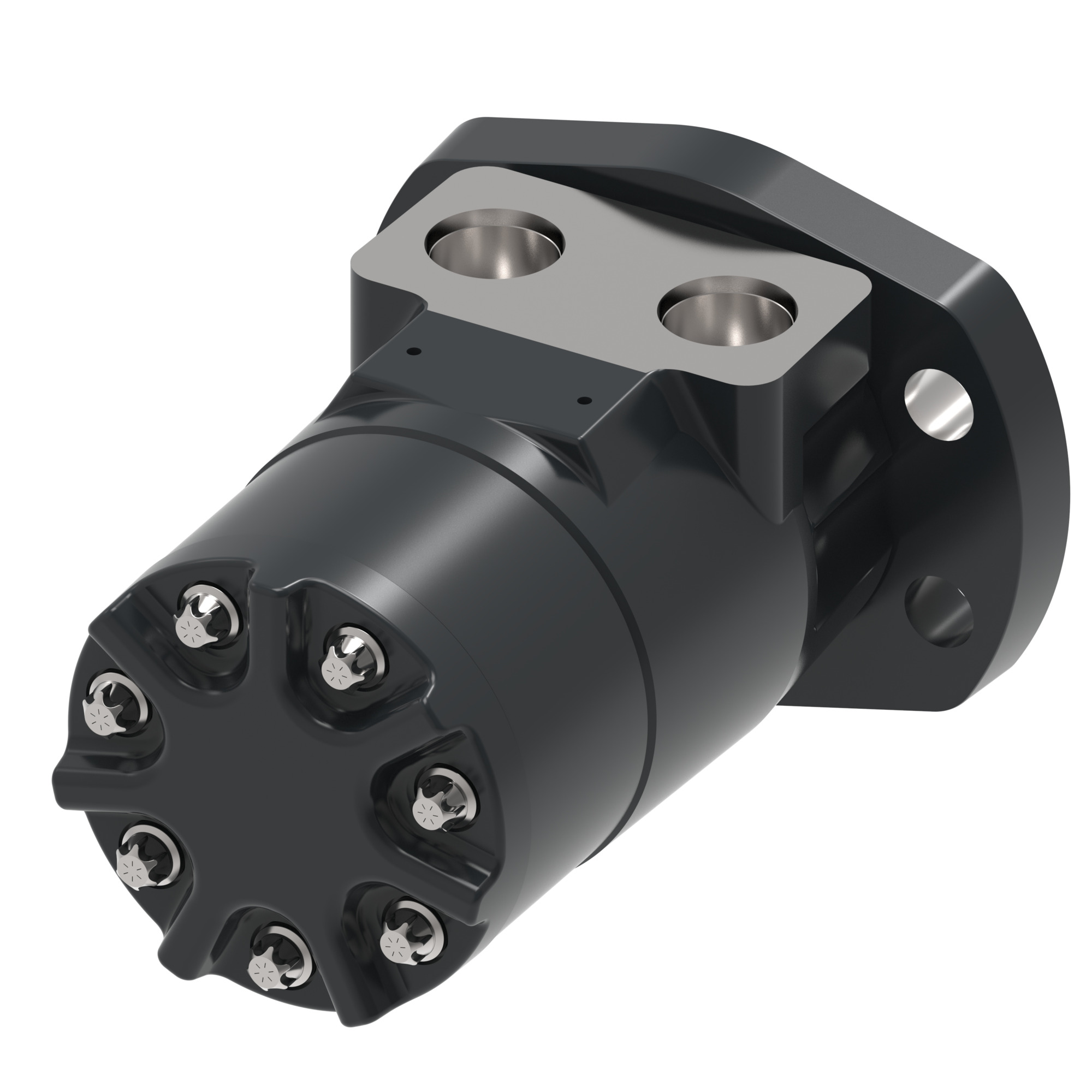

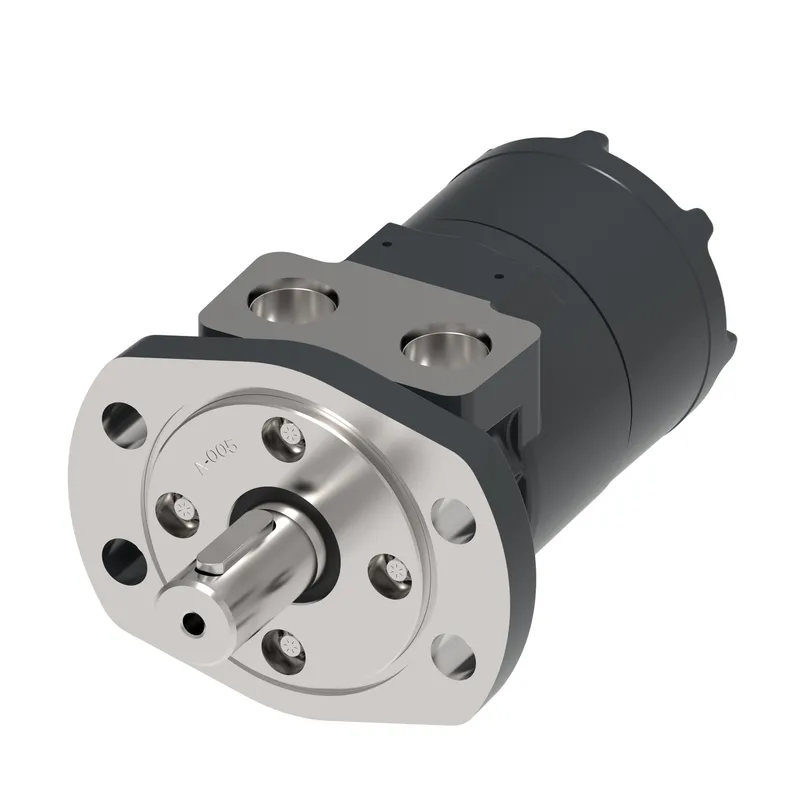

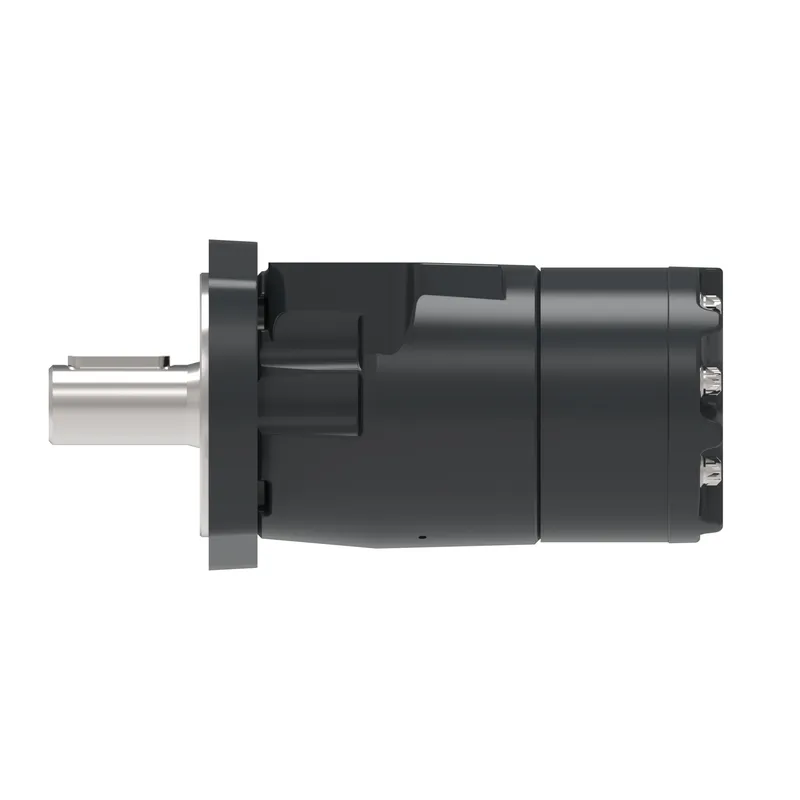

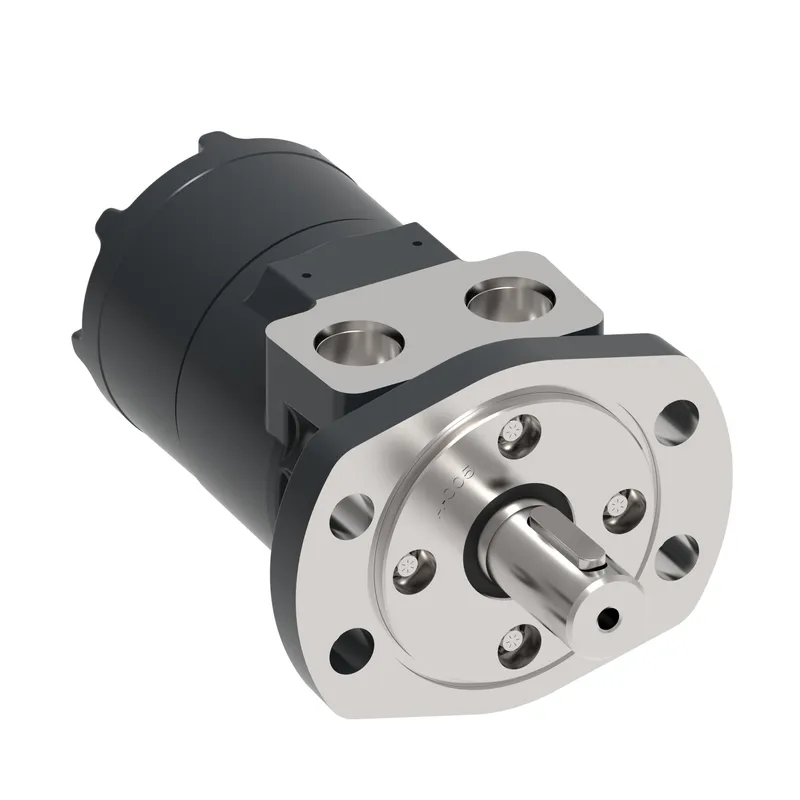

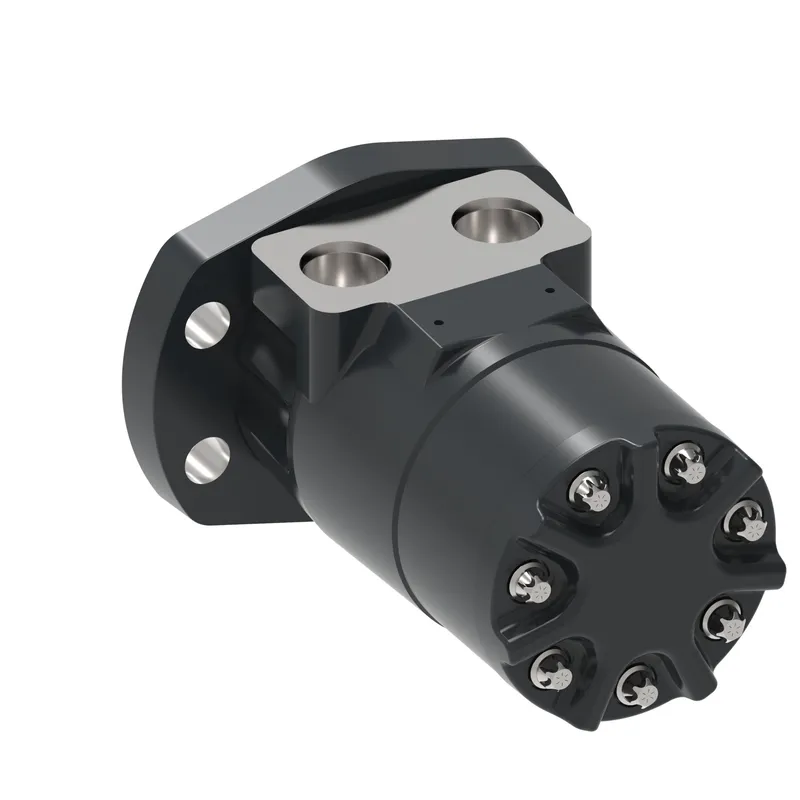

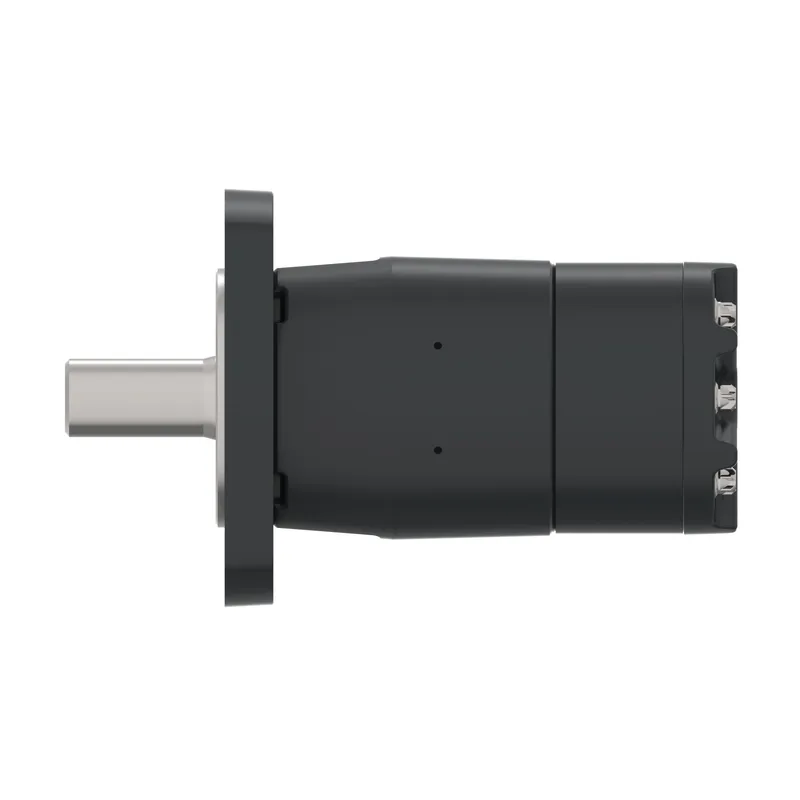

MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096UA22AA1100070000ER1AS01A

MPN
158-3707-001
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 158-3707-001?

Danfoss MOTOR-ORBITAL,T SERIES 160 [9.6], MT0096UA22AA1100070000ER1AS01A, manufacturer part number 158-3707-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeMT0096UA22AA1100070000ER1AS01A
Motor SeriesT Series
Valve systemSpool valve
Orbital gearwheel set typeGeroler
Motor size160
Geometric displacement [cm3/r [in3/r]]158 [9.6]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Magneto
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]82.5 x 3.1, 106.4, M12 x 1.75-6H [3.25 x 0.12, 4.19, M12 x 1.75-6H]
Shaft typeStraight
Shaft dimensionDia. 1 inch, 5/16 - 18 UNC-2B thread in shaft end - Spec. Component
Shaft KeyWoodruff key
Main port thread typeUN / UNF
Main port styleSideport - aligned
Main port dimension7/8 - 14 UNF-2B SAE O-Ring port
Drain Port DimensionNo data available
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPainted, Black, Low gloss, Customized
Special Features AssemblyDirection of rotation
Dust sealStandard
Shaft SealHNBR - High pressure
Seal Kit9900752-000
Front bearing typeJournal bearing
Rear bearing typeJournal bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingNo data available
Name TagCustomized
Design code01
BrandDanfoss
Proposition 65Cancer and Reproductive Harm
Seal optionsHP SHAFT SEAL
SeriesT series motor
Sub brandChar-Lynn
