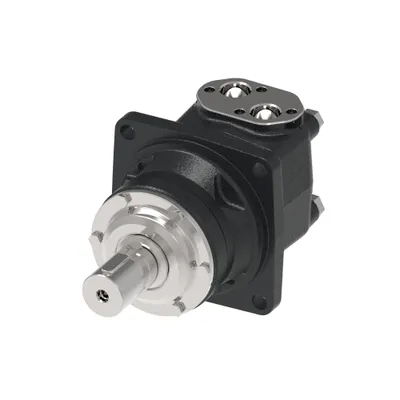

Danfoss 151B3124

OMVW 800 HYDRAULIC MOTOR

MPN: 151B3124
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B3124?

Danfoss OMVW 800 HYDRAULIC MOTOR, manufacturer part number 151B3124. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	OMV-0800-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series	OMV Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	800
Geometric displacement [cm3/r [in3/r]]	801.8 [48.93]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	180.0 x 10.6, 224.0, 18.0 [7.08 x 0.42, 8.82, 0.71] Rear: 194.0 x 3.4, 224.0, 18.0 [7.64 x 0.13, 7.87, 0.71]
Shaft type	TAPERED
Shaft dimension	Dia. 60 mm, 1:10, 3 x M42 thread in shaft end
Shaft Key	Rectangular key, B16 x 10 x 32 mm, DIN 6885
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 1, 4 x M12 block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	151B0129
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
