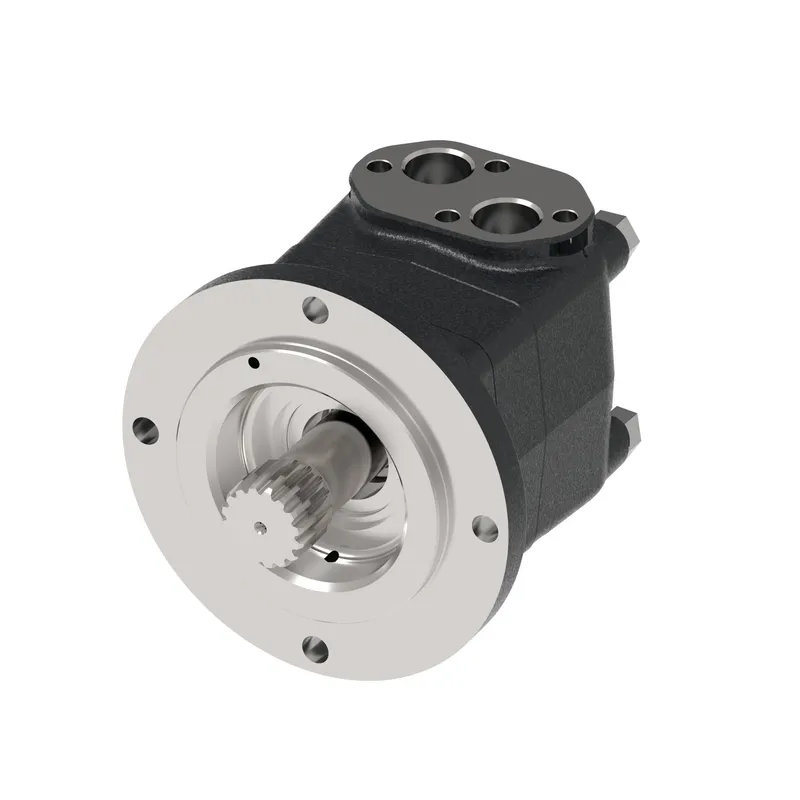

Danfoss 151B3128

MOTOR-ORBITAL,OMV SERIES 630 [38.4], OMV-0630-C-NN-S16-AE-1E-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

MPN: 151B3128
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 151B3128?

Danfoss MOTOR-ORBITAL,OMV SERIES 630 [38.4], OMV-0630-C-NN-S16-AE-1E-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B3128. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	n/a
Check valve function	Yes
Design code	2
Drain Port Dimension	G 1/4
Dust seal	n/a
Front bearing type	n/a
Geometric displacement [cm3/r [in3/r]]	629.1 [38.39]
Hydraulic valve function	None
Main port dimension	G 1, 4 x M12 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMV-0630-C-NN-S16-AE-1E-NNN-N-N-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Standard
Motor Series	OMV Series
Motor size	630
Motor type	Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	140.0 x 8.0, 180.0, 14.0 [5.51 x 0.32, 7.09, 0.55]
Mounting flange type	4 Bolt - Short
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	n/a
Seal Kit	151B0125
Sensor	None
Shaft dimension	n/a
Shaft Key	n/a
Shaft Seal	n/a
Shaft type	None
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
