Home / Danfoss (Drives) / MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Available on request

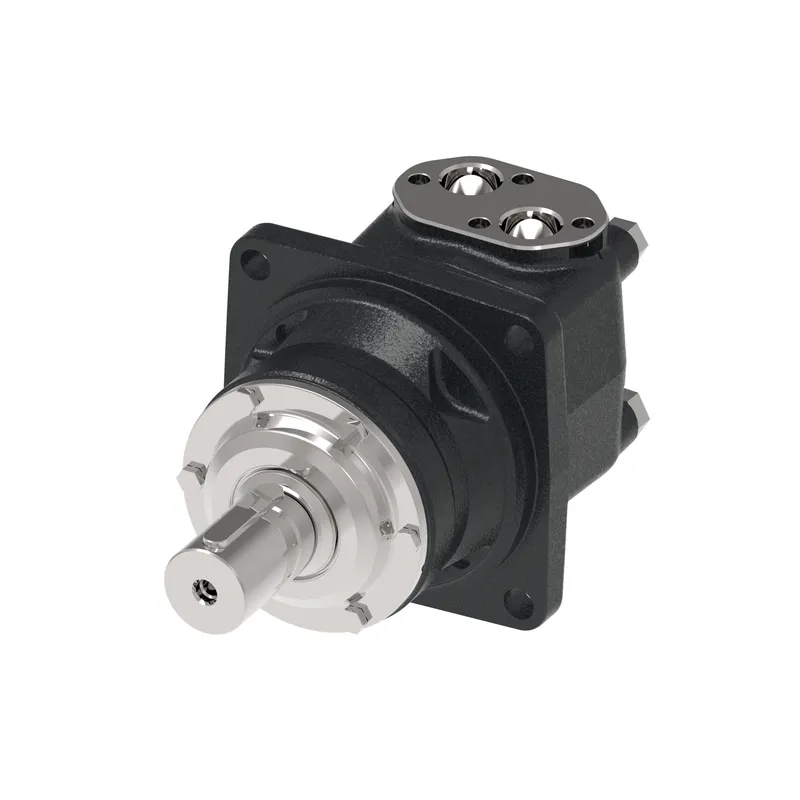

MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Name: MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Brand: Danfoss (Drives)
SKU: 151B3120

MPN: 151B3120 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Orbitron motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 151B3120 be shipped?

151B3120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 151B3120 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 151B3120 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 151B3120, subject to availability and destination.

Danfoss MOTOR-ORBITAL,OMV SERIES 315 [19.2], OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN, manufacturer part number 151B3120. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	n/a
Check valve function	Yes
Design code	2
Drain Port Dimension	G 1/4
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	314.5 [19.19]
Hydraulic valve function	None
Main port dimension	G 1, 4 x M12 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMV-0315-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor function	Standard
Motor Series	OMV Series
Motor size	315
Motor type	Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	180.0 x 10.6, 224.0, 18.0 [7.08 x 0.42, 8.82, 0.71] Rear: 194.0 x 3.4, 224.0, 18.0 [7.64 x 0.13, 7.87, 0.71]
Mounting flange type	4 Bolt - Wheel
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	n/a
Painted	No
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0129
Sensor	None
Shaft dimension	Dia. 60 mm, 1:10, 3 x M42 thread in shaft end
Shaft Key	Rectangular key, B16 x 10 x 32 mm, DIN 6885
Shaft Seal	NBR - Standard
Shaft type	TAPERED
Size/Dimensions	L24.2XW44.2XH22.2 CM
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
