Danfoss 10506B-106-BG

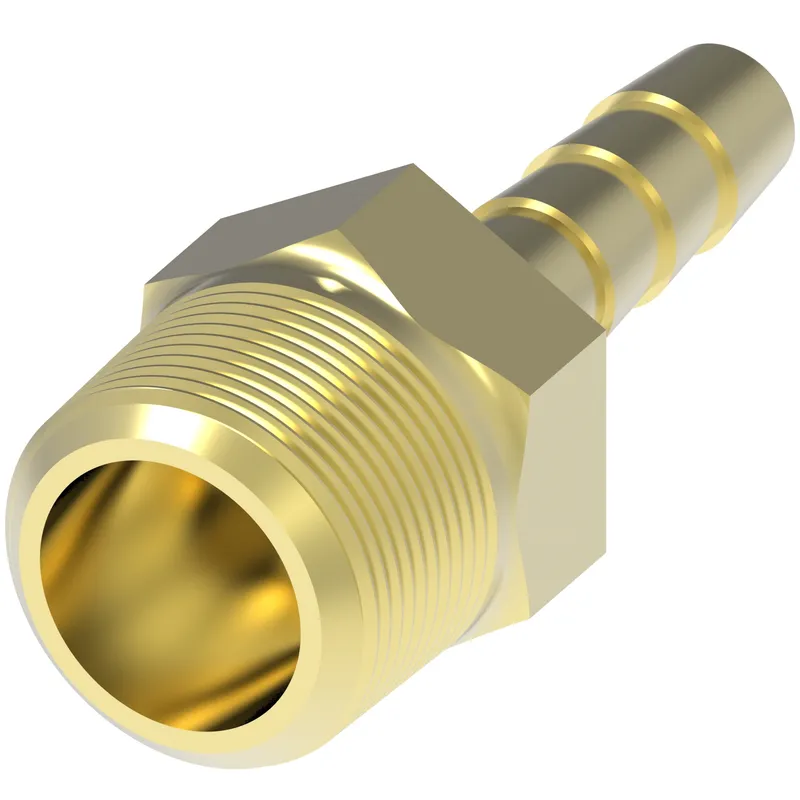

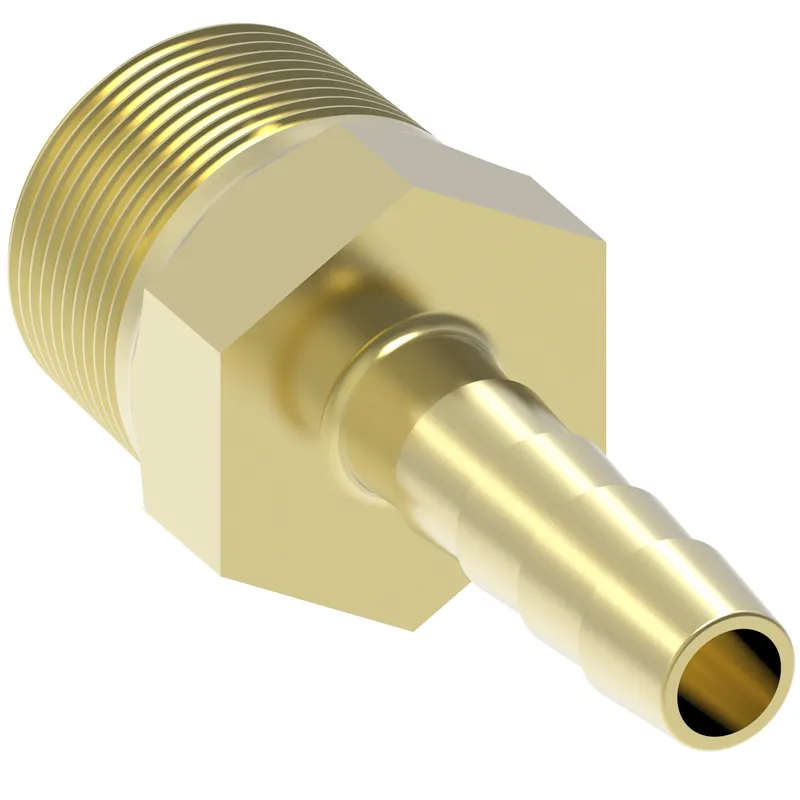

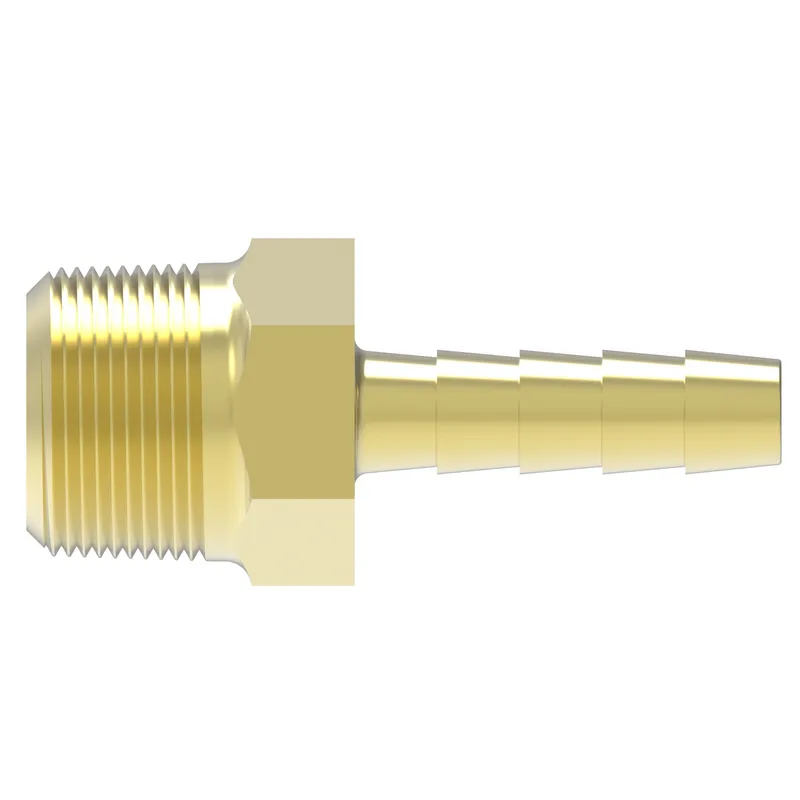

HOSE INSERT ASSY,B1/08,NPTF-M/06,B,STR

MPN: 10506B-106-BG
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10506B-106-BG?

Danfoss HOSE INSERT ASSY,B1/08,NPTF-M/06,B,STR, manufacturer part number 10506B-106-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.720
A dimension MM	43.690
Angle shape	Straight
Construction Style	Reusable
End type 1	Male pipe (NPTF)
Hose cut off factor IN	0.970
Hose cut off factor MM	24.790
Hose size	-6
Inside diameter IN	0.270
Inside diameter MM	7.230
Product height in	0.690
Product height mm	17.526
Product length in	1.720
Product length mm	43.688
Product material	Brass
Product width in	0.690
Product width mm	17.526 mm
Series	105 B
Thread size 1	3/8-18 NPTF
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
