Danfoss 10504B-106

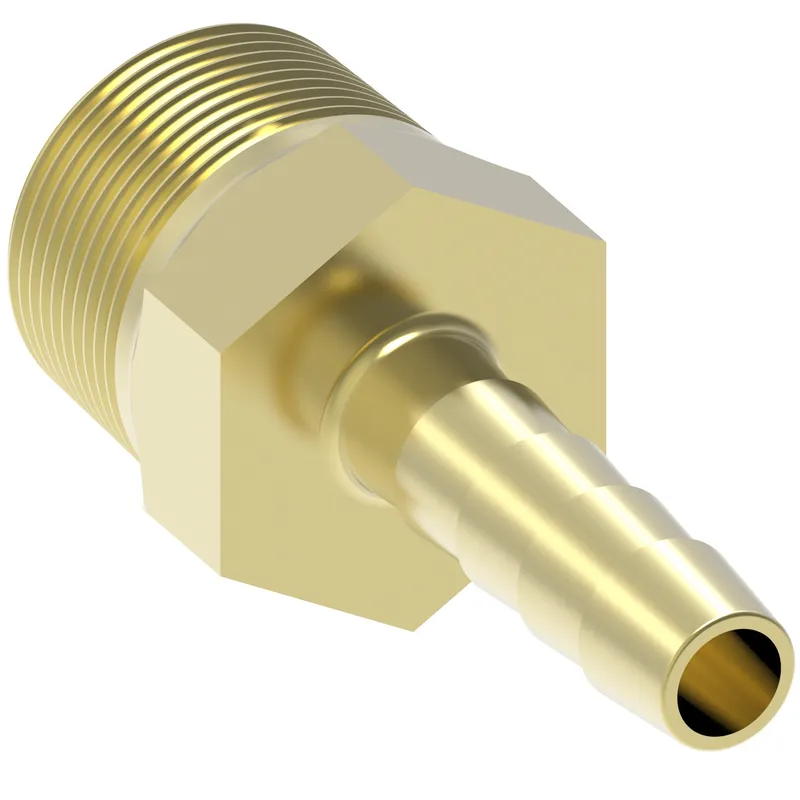

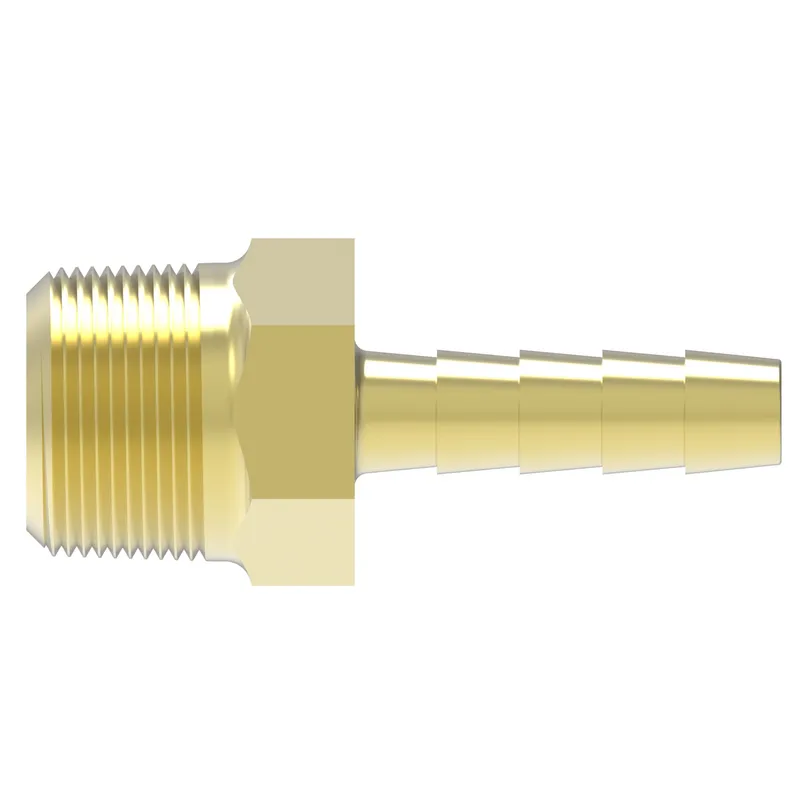

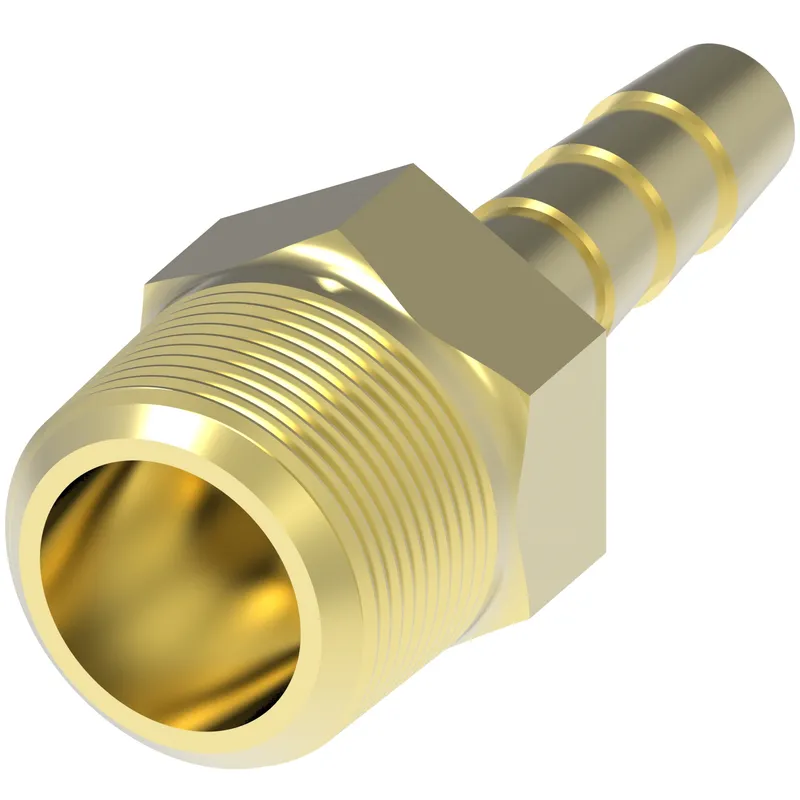

HOSE INSERT ASSY,B1/04,NPTF-M/06,B,STR

MPN: 10504B-106
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10504B-106?

Danfoss HOSE INSERT ASSY,B1/04,NPTF-M/06,B,STR, manufacturer part number 10504B-106. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975733592
A dimension IN	1.720
A dimension MM	43.820
Angle shape	Straight
Construction Style	Reusable
End type 1	Male pipe (NPTF)
Hose cut off factor IN	0.970
Hose cut off factor MM	24.760
Hose size	-6
Inside diameter IN	0.1800
Inside diameter MM	4.5800
Product height in	0.690
Product height mm	17.526
Product length in	1.730
Product length mm	43.942
Product material	Brass
Product width in	0.690
Product width mm	17.526 mm
Series	105 B
Thread size 1	3/8-18 NPTF
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
