Danfoss 10506B-108

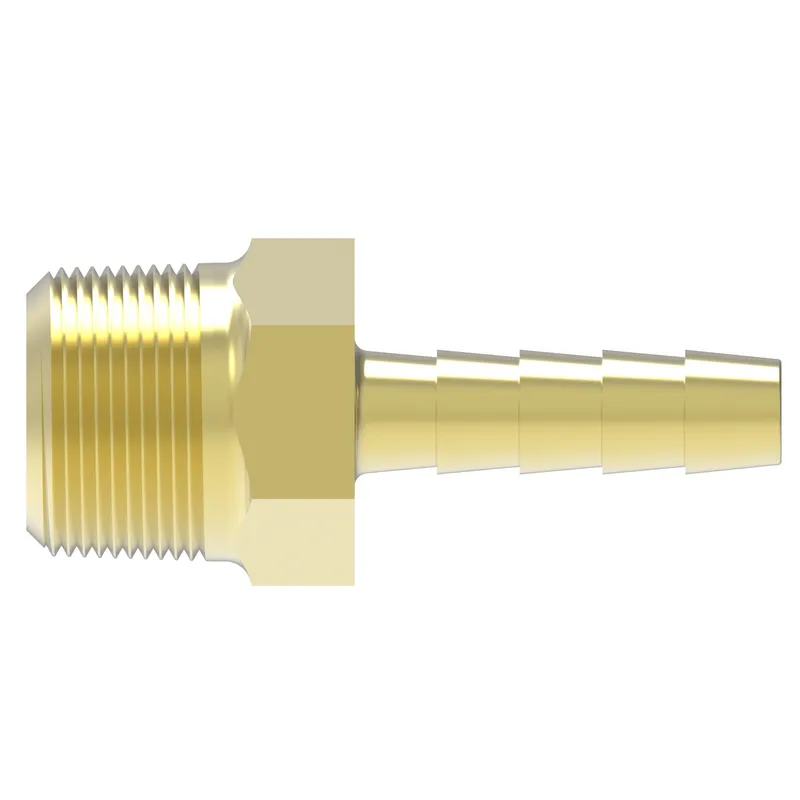

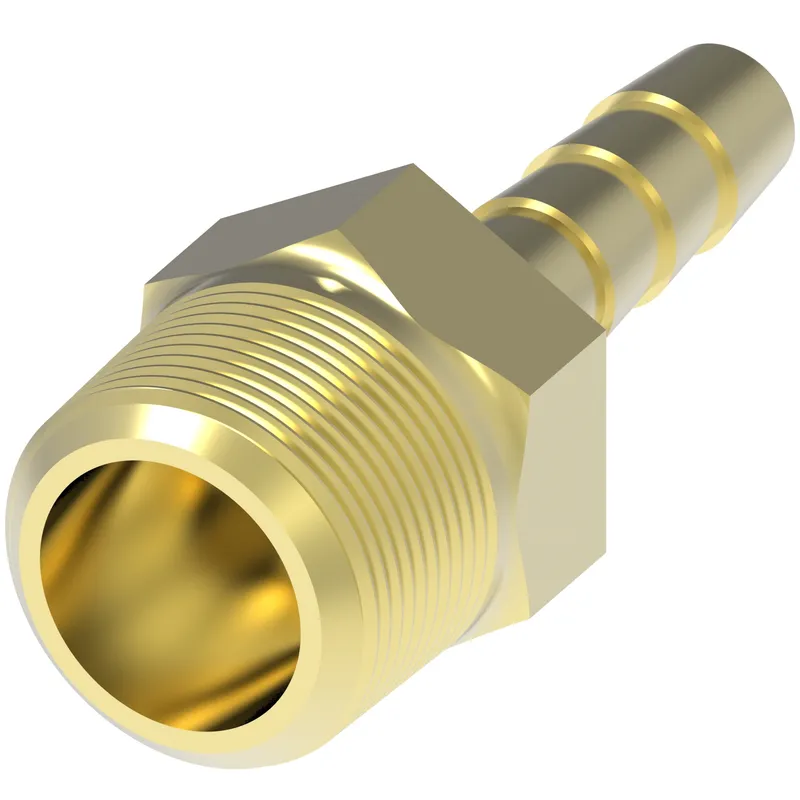

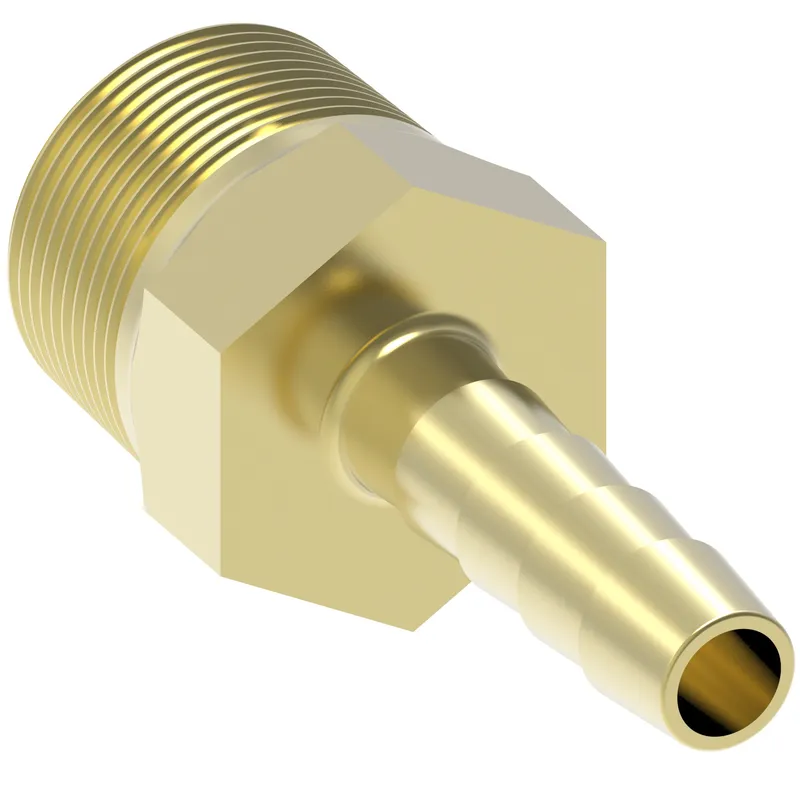

HOSE INSERT ASSY,B1/06,NPTF-M/08,B,STR

MPN: 10506B-108
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10506B-108?

Danfoss HOSE INSERT ASSY,B1/06,NPTF-M/08,B,STR, manufacturer part number 10506B-108. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975714249
A dimension IN	1.950
A dimension MM	49.530
Angle shape	Straight
Construction Style	Reusable
End type 1	Male pipe (NPTF)
Hose cut off factor IN	0.970
Hose cut off factor MM	24.790
Hose size	-8
Inside diameter IN	0.270
Inside diameter MM	7.230
Product height in	0.880
Product height mm	22.352
Product length in	1.950
Product length mm	49.530
Product material	Brass
Product width in	0.880
Product width mm	22.352 mm
Series	105 B
Thread size 1	1/2-14 NPTF
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

10506B-108: frequently asked questions

When can 10506B-108 be shipped?

10506B-108 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 10506B-108 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 10506B-108 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10506B-108, subject to availability and destination.
