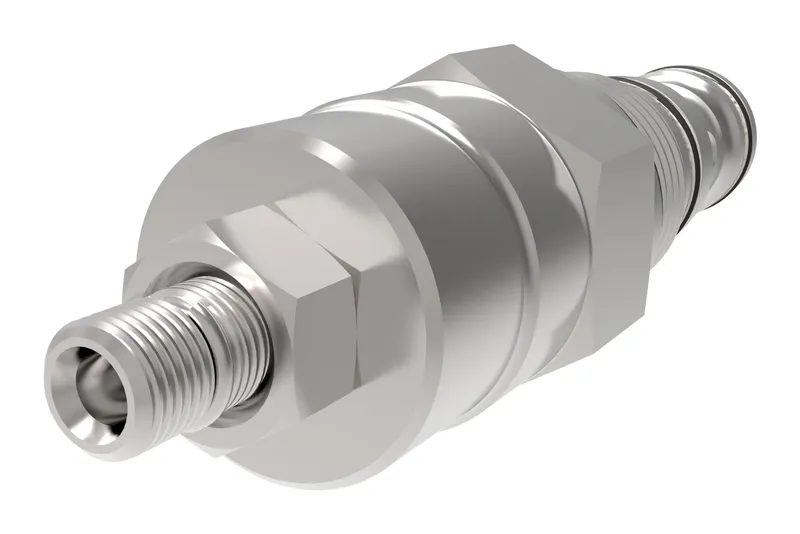

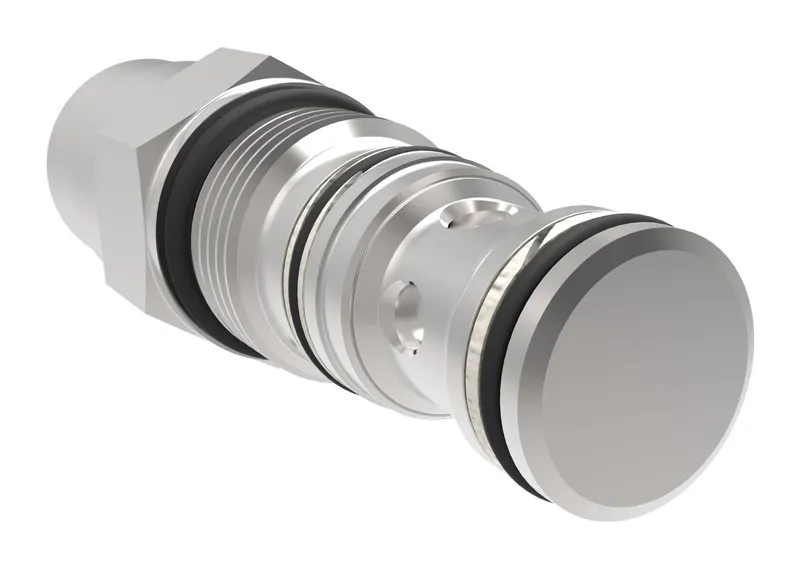

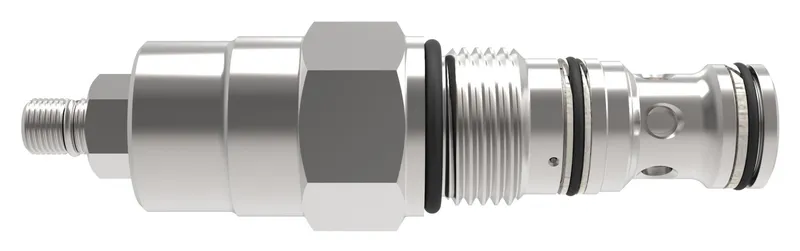

F3-CB-25-F-200-10-B40, F3CB25F20010B40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-413607 be shipped?
02-413607 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-413607 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-413607 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-413607, subject to availability and destination.
Danfoss F3-CB-25-F-200-10-B40, F3CB25F20010B40, manufacturer part number 02-413607. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Manually operated |
| Brand | Vickers by Danfoss |
| Cracking pressure bar | 2.0 |
| Cracking pressure PSI | 29 |
| Design Series | 10 Series |
| Drain | Internal |
| Electrical connection | None |
| Flow rate lpm | 320.0 |
| Flow rate USGPM | 84.0 |
| Fluid Cleanliness | 20/18/15 Micron |
| Fluid compatibility | Phosphate ester fluids |
| Gauge port thread | G 1/4 BSP |
| Leakage | Standard |
| Maximum pressure BAR | 315 |
| Maximum pressure PSI | 4500 |
| Model Code 1 | F3CB25F20010B40 |
| Performance | Standard |
| Product height in | 3.930 |
| Product height mm | 99.822 |
| Product length in | 10.820 |
| Product length mm | 274.828 |
| Product width in | 3.930 |
| Product width mm | 99.822 |
| Remote control | Yes |
| Seal material | Fluorocarbon |
| Size | Size 25 |
| Special feature | None |
| Stage | Single stage |
| Valve Mount Type | SAE flange mounting |
| Valve type | Counterbalance valve |
| Working temperature max C | 80 |
| Working temperature max F | 176 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
