What is the Danfoss 02-413614?

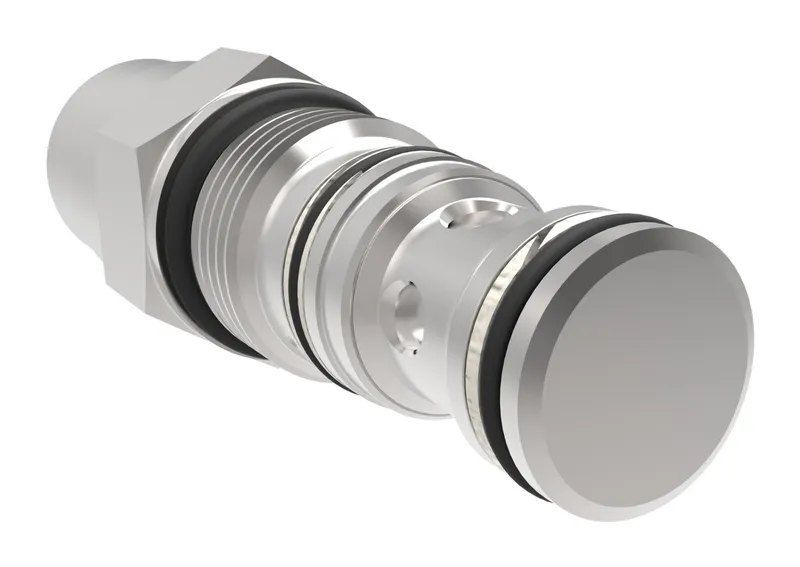

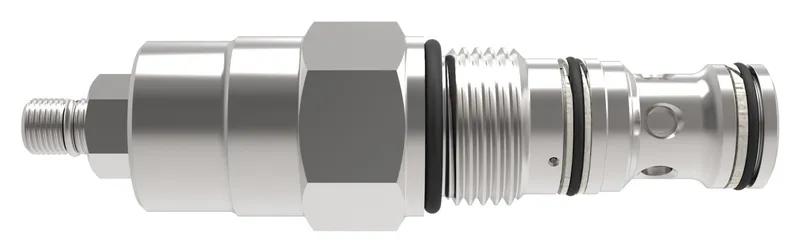

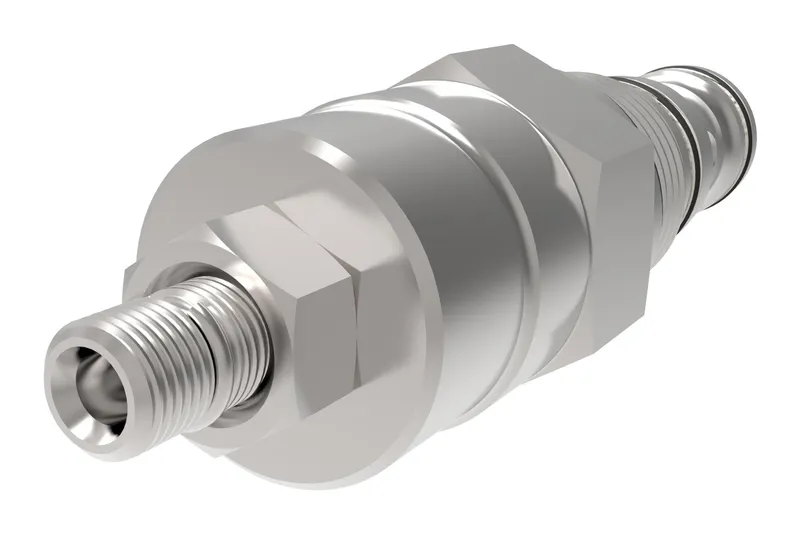

Danfoss F3-CB-32-K-A-10-B60, F3CB32KA10B60, manufacturer part number 02-413614. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Manually operated
Brand	Vickers by Danfoss
Cracking pressure bar	2.0
Cracking pressure PSI	29
Design Series	10 Series
Drain	Internal
Electrical connection	None
Flow rate lpm	560.0
Flow rate USGPM	147.0
Fluid Cleanliness	20/18/15 Micron
Fluid compatibility	Phosphate ester fluids
Leakage	Standard
Maximum pressure BAR	315
Maximum pressure PSI	4500
Model Code 1	F3CB32KA10B60
Performance	Standard
Product height in	11.370
Product height mm	288.798
Product length in	3.740
Product length mm	94.996
Product width in	3.740
Product width mm	94.996
Remote control	Yes
Seal material	Fluorocarbon
Size	Size 32
Special feature	None
Stage	Single stage
Valve Mount Type	Cartridge valve
Valve type	Counterbalance valve
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4
