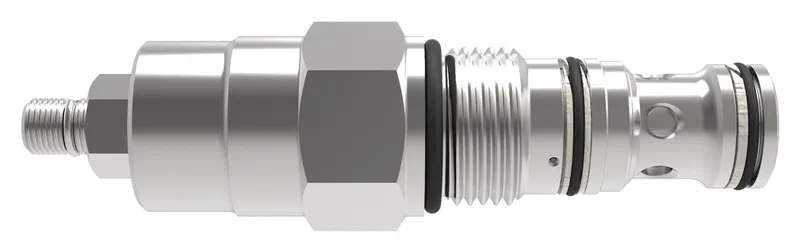

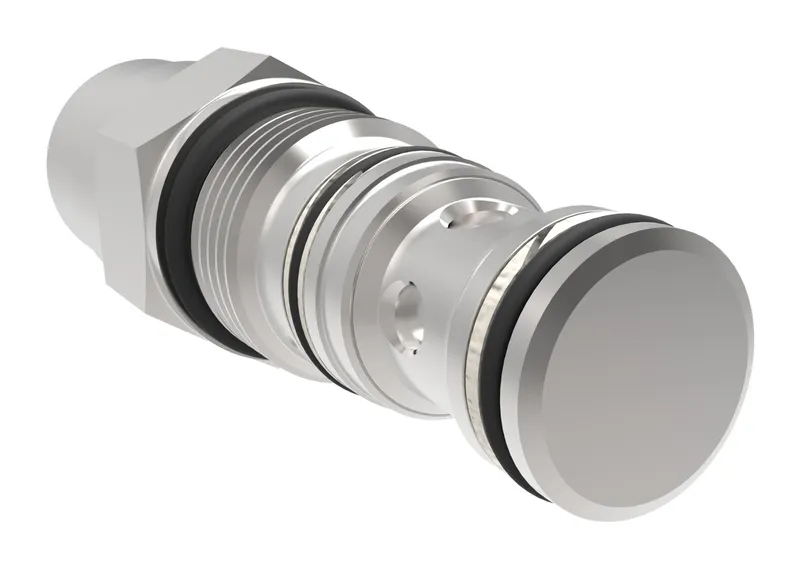

F3-CB-16-K-A-10-B30, F3CB16KA10B30
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-413604 be shipped?
02-413604 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-413604 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-413604 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-413604, subject to availability and destination.
Danfoss F3-CB-16-K-A-10-B30, F3CB16KA10B30, manufacturer part number 02-413604. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Manually operated |
| Brand | Vickers by Danfoss |
| Cracking pressure bar | 2.0 |
| Cracking pressure PSI | 29 |
| Design Series | 10 Series |
| Drain | Internal |
| Electrical connection | None |
| Flow rate lpm | 200.0 |
| Flow rate USGPM | 53.0 |
| Fluid Cleanliness | 20/18/15 Micron |
| Fluid compatibility | Phosphate ester fluids |
| Leakage | Standard |
| Maximum pressure BAR | 315 |
| Maximum pressure PSI | 4500 |
| Model Code 1 | F3CB16KA10B30 |
| Performance | Standard |
| Product height in | 4.680 |
| Product height mm | 118.872 |
| Product length in | 2.750 |
| Product length mm | 69.850 |
| Product width in | 2.750 |
| Product width mm | 69.85 |
| Remote control | Yes |
| Seal material | Fluorocarbon |
| Size | Size 16 |
| Special feature | None |
| Stage | Single stage |
| Valve Mount Type | Cartridge valve |
| Valve type | Counterbalance valve |
| Working temperature max C | 80 |
| Working temperature max F | 176 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
