Danfoss 02-400261

Industrial valve

MPN
02-400261
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-400261?

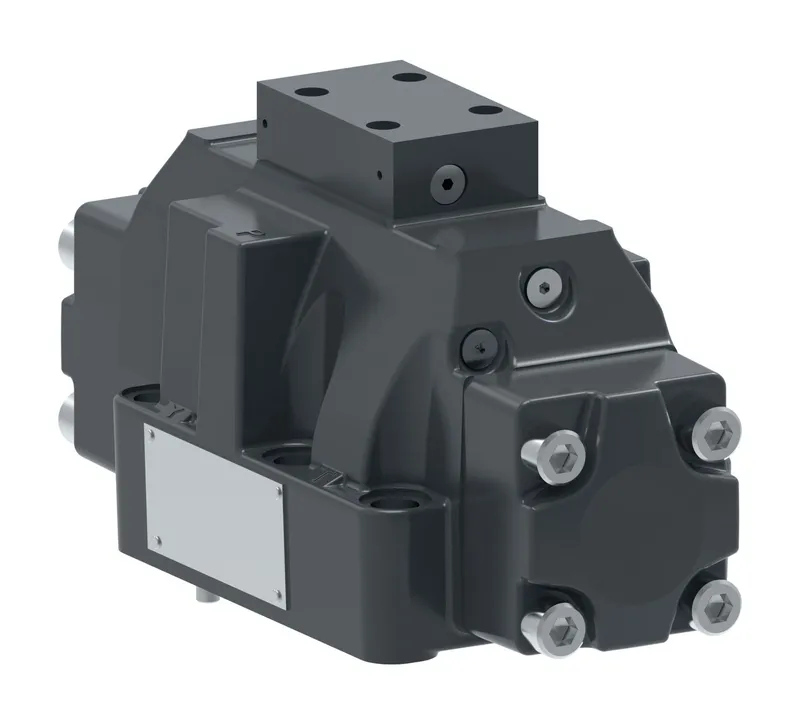

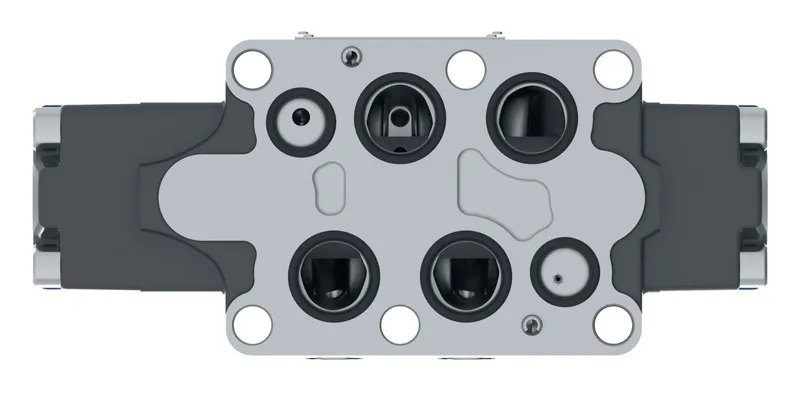

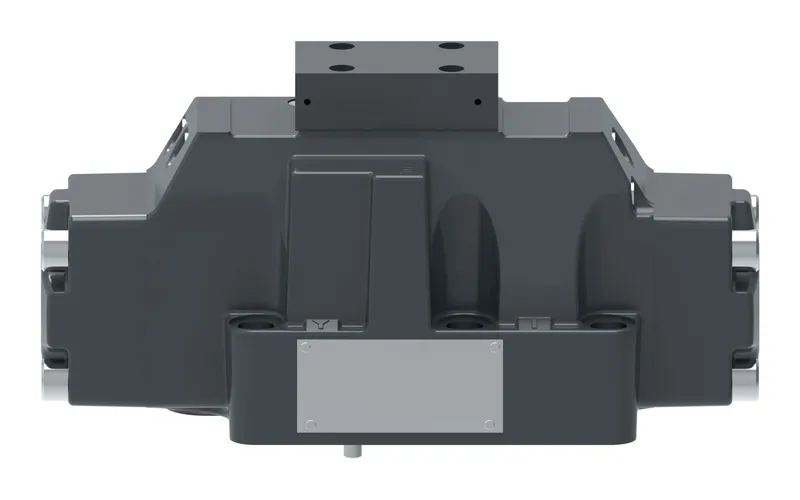

Danfoss DG3V-8-33C-10-EN521, DG3V833C10EN521, manufacturer part number 02-400261. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeHydraulic operated
BrandVickers by Danfoss
Coil RatingNone
Design Series10 Series
Electrical ConnectionNone
Ext pilot pressureExternal
Flow rate upto GPM185.0
Flow rate upto LPM700.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightNo
Int pilot drainInternal
InterfaceISO4401-08
Manual overrideNone
Model Code 1DG3V833C10EN521
PerformanceHigh performance
Pressure rating BAR350
Pressure rating PSI5000
Product height in6.810
Product length in16.370
Product length mm415.798
Product width in4.600
Product width mm116.84
Seal typeBuna-N
Solenoid Energising IDNone
Special featuresP-A & B-T crossover plate
Spool Position MonitorNo
Spool TypeSpool 33
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-400261: frequently asked questions

When can 02-400261 be shipped?

02-400261 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-400261 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-400261 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-400261, subject to availability and destination.
