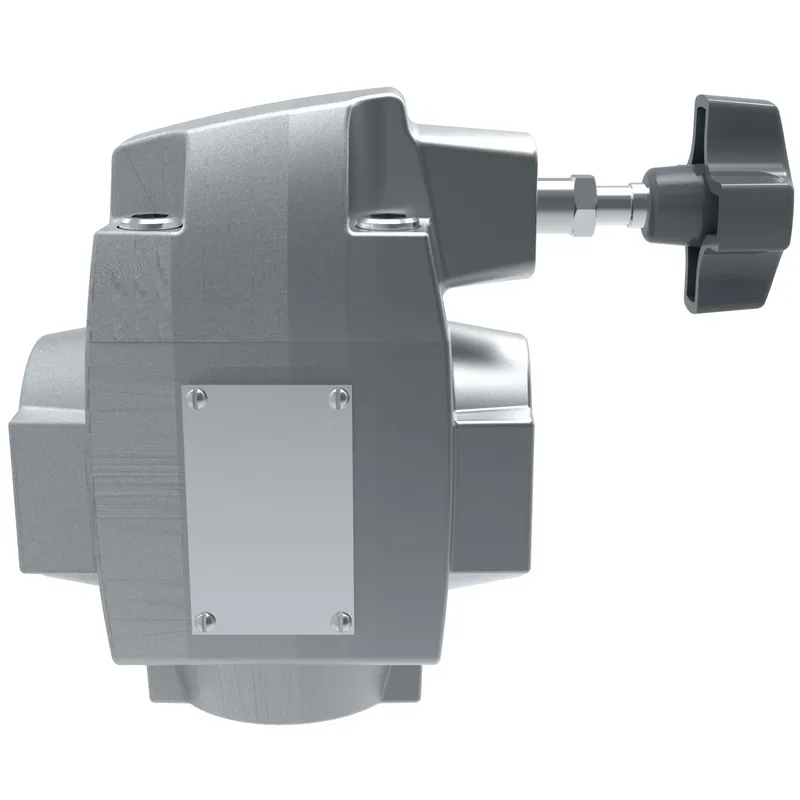

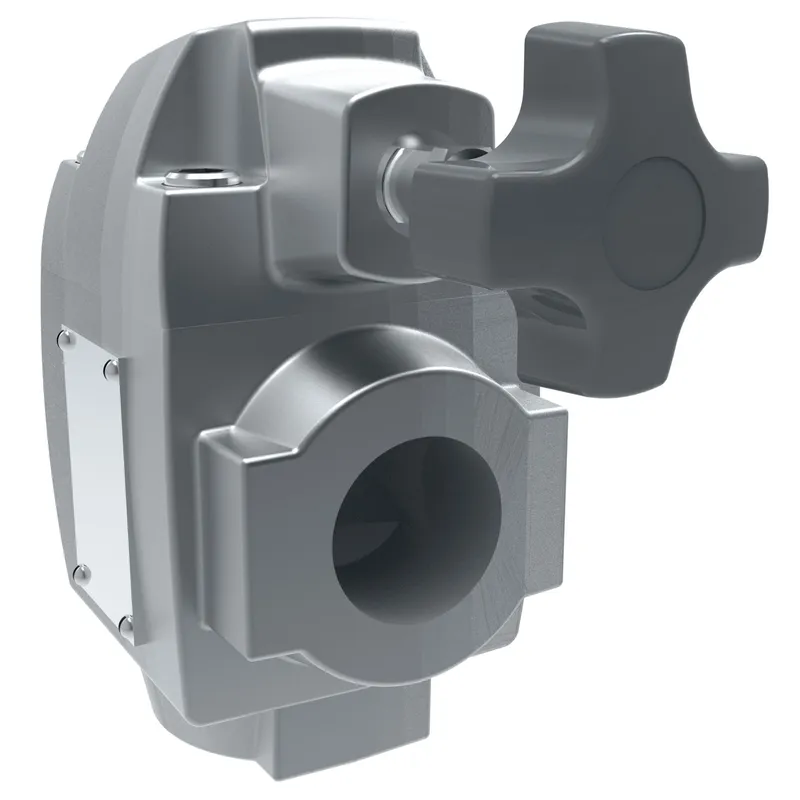

What is the Danfoss 02-400238?

Danfoss CG-06-BB-DG-0A-M-U-D6-50, CG06BBDG0AMUD650, manufacturer part number 02-400238. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
Adjustment range8.5-70 Bar & 100-210 Bar
Adjustment range head 18.5-70 bar (125-1000 psi)
Adjustment range head 38.5-70 bar (125-1000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Coil voltage220 VAC 50Hz/240 VAC 60Hz
Design Series50 Series
Electrical connectionISO 4400 (DIN 43650) connector
Flow rate lpm227.0
Flow rate USGPM60.0
Fluid Cleanliness19/17/14 Micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Manual overrideNone
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1CG06BBDG0AMUD650
PerformanceStandard
Product height in10.750
Product height mm273.050
Product length in5.540
Product length mm140.716
Product width in5.030
Product width mm127.762
Seal materialNitrile
SizeSize 06
Special featureNone
StageTwo stage
Valve Mount TypeSubplate/manifold mounted
Valve typeRelief valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4
