Danfoss 02-395017

DGMC-3-PT-AH-41-EN411, DGMC3PTAH41EN411

MPN
02-395017
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

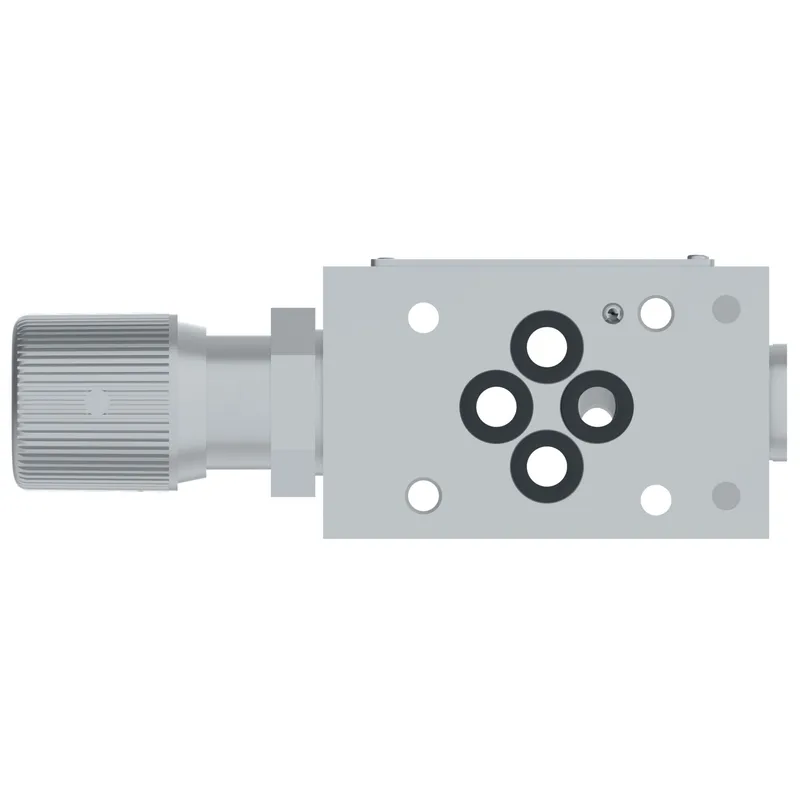

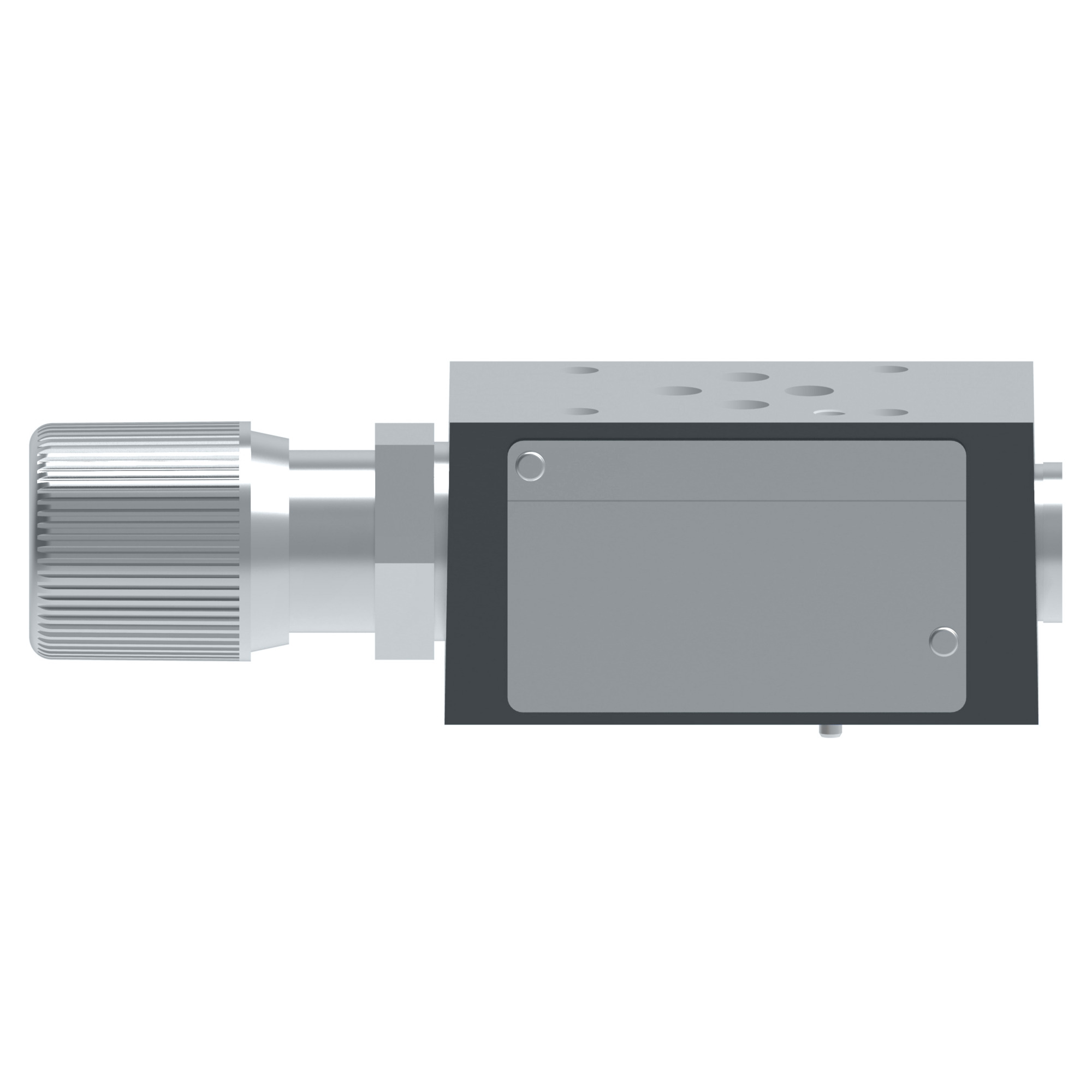

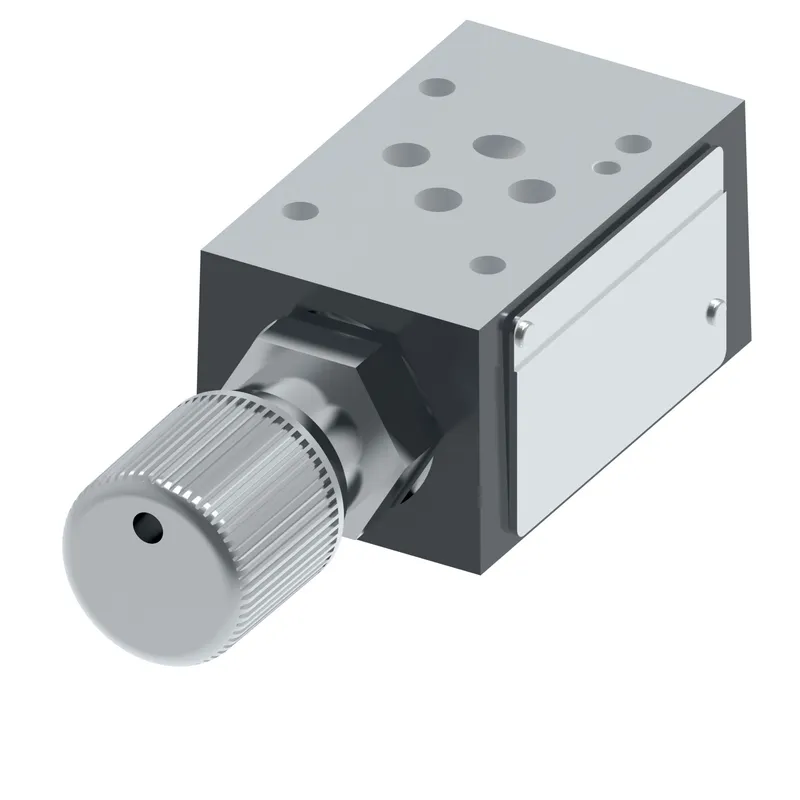

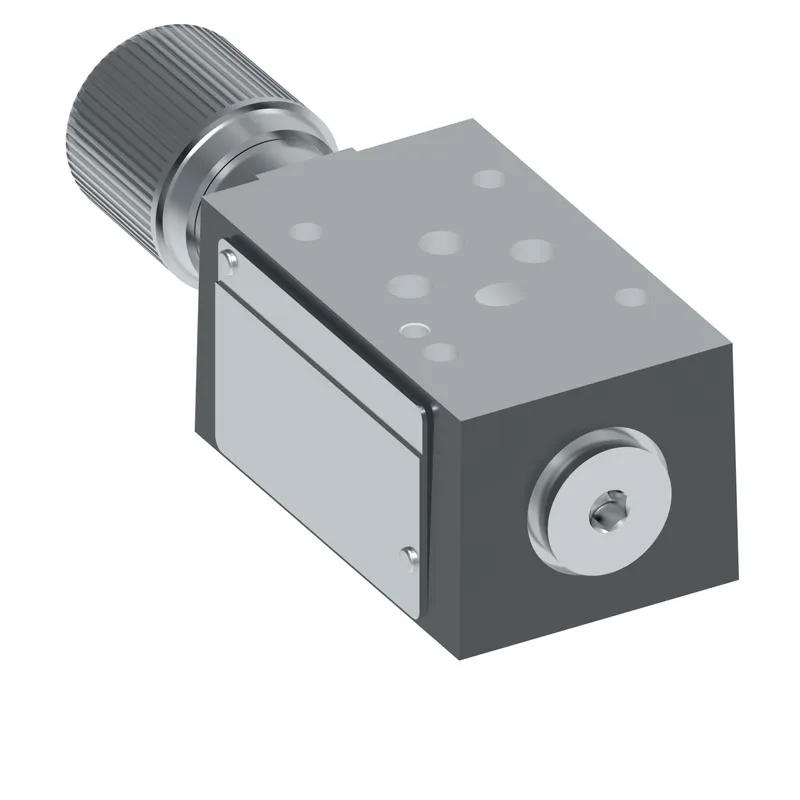

What is the Danfoss 02-395017?

Danfoss DGMC-3-PT-AH-41-EN411, DGMC3PTAH41EN411, manufacturer part number 02-395017. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePressure operated
Adjustment typeHandknob
BrandVickers by Danfoss
Design Series41 Series
Discharge 1Discharge into T
First functionPressure limited in P
Flow rate upto LPM60
Flow rate upto USGPM16.0
Fluid Cleanliness17/15/12 micron
Fluid compatibilityPetroleum oils
InterfaceISO4401-03
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model Code 1DGMC3PTAH41EN411
PerformanceStandard
Pressure adjustment range3-50 bar (45-725 psi)
Product height in1.570
Product height mm39.878
Product length in6.500
Product length mm165.100
Product width in1.870
Product width mm47.498
Seal typeViton
Special featuresWithout top interface
Valve Mount TypeSubplate/manifold mounted
Valve typeSingle relief valve
Working temp max C80
Working temp max F176
Working temp min C-20
Working temp min F-4

02-395017: frequently asked questions

When can 02-395017 be shipped?

02-395017 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-395017 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-395017 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-395017, subject to availability and destination.
