Danfoss 02-394994

DG5V-8-H-6C-T-M-FPA5WL-B 10, DG5V8H6CTMFPA5WLB10

MPN
02-394994
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

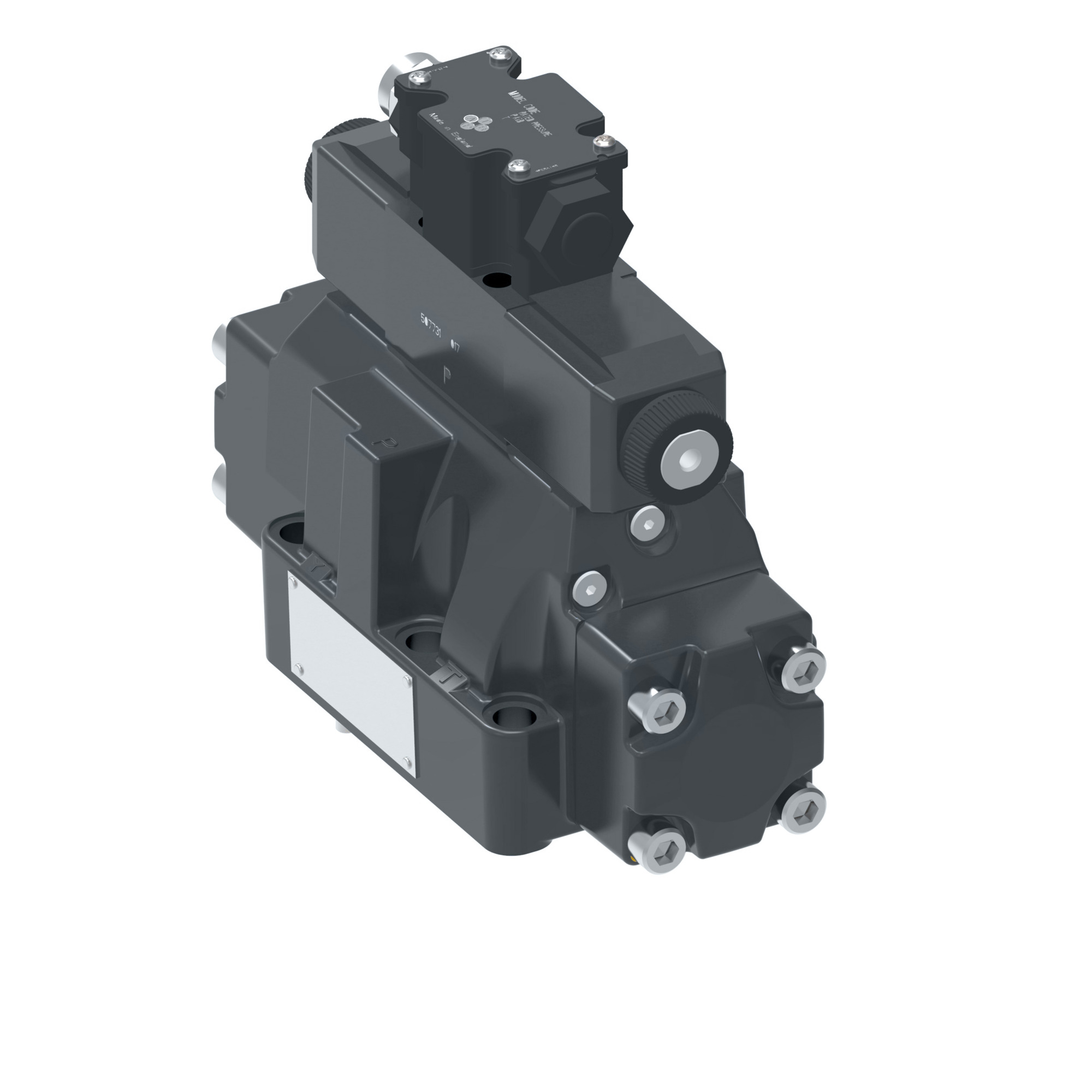

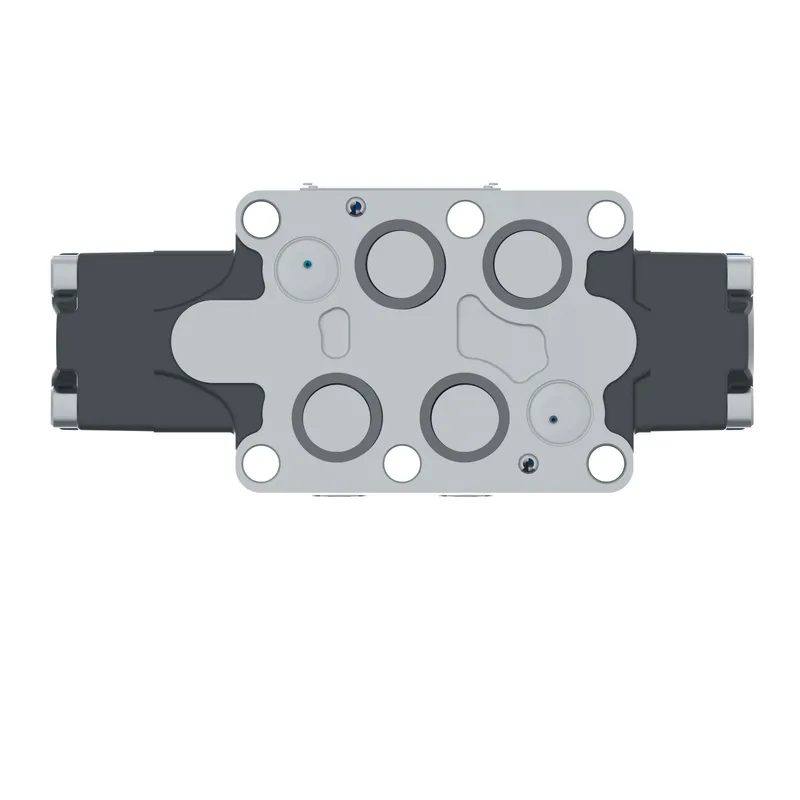

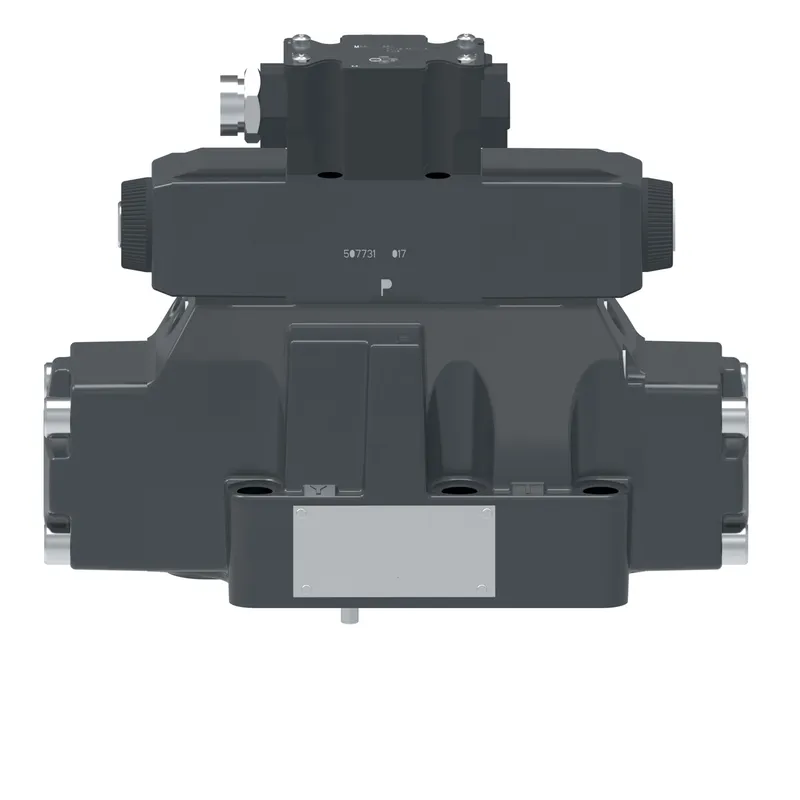

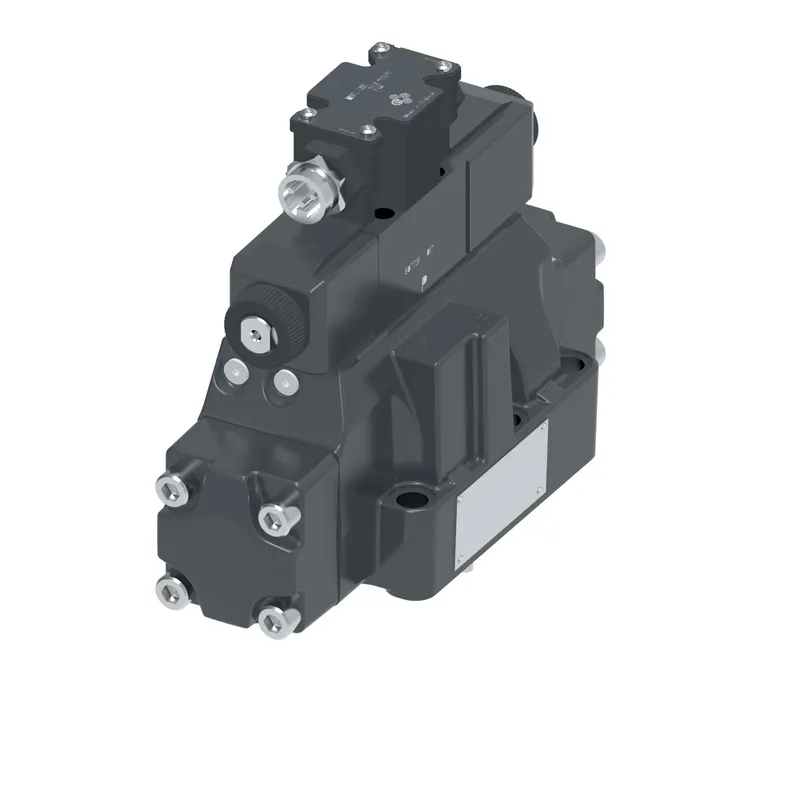

What is the Danfoss 02-394994?

Danfoss DG5V-8-H-6C-T-M-FPA5WL-B 10, DG5V8H6CTMFPA5WLB10, manufacturer part number 02-394994. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypePilot operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series10 Series
Electrical Connection5-Pin connector
Ext pilot pressureInternal
Flow rate upto GPM185.0
Flow rate upto LPM700.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Gauge Port Thread Type0.4375 - 20 UNF, SAE Thread
Indicator LightYes
Int pilot drainInternal
InterfaceISO4401-08
Manual overridePlain
Model Code 1DG5V8H6CTMFPA5WLB10
PerformanceHigh performance
Power Consumption49VA 50HZ - 48VA 60HZ
Pressure rating BAR350
Pressure rating PSI5000
Product height in8.000
Product height mm203.200
Product length in10.440
Product length mm265.176
Product width in4.670
Product width mm118.618
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresNone
Spool Position MonitorNo
Spool TypeSpool 6
Spring ArrangementSpring centred
StageTwo stage
Surge Suppr DamperNo
Tank port rating BAR210.0
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C65
Working temp max F150
Working temp min C-20
Working temp min F-4
