What is the Danfoss 02-394986?

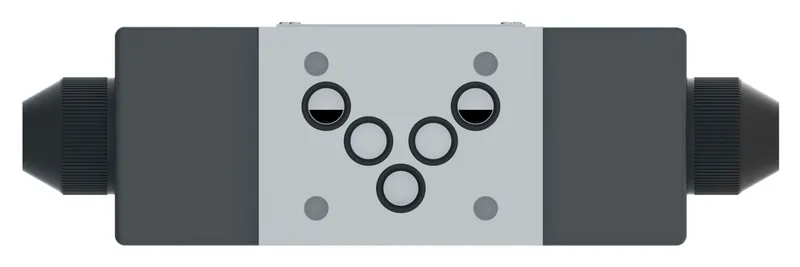

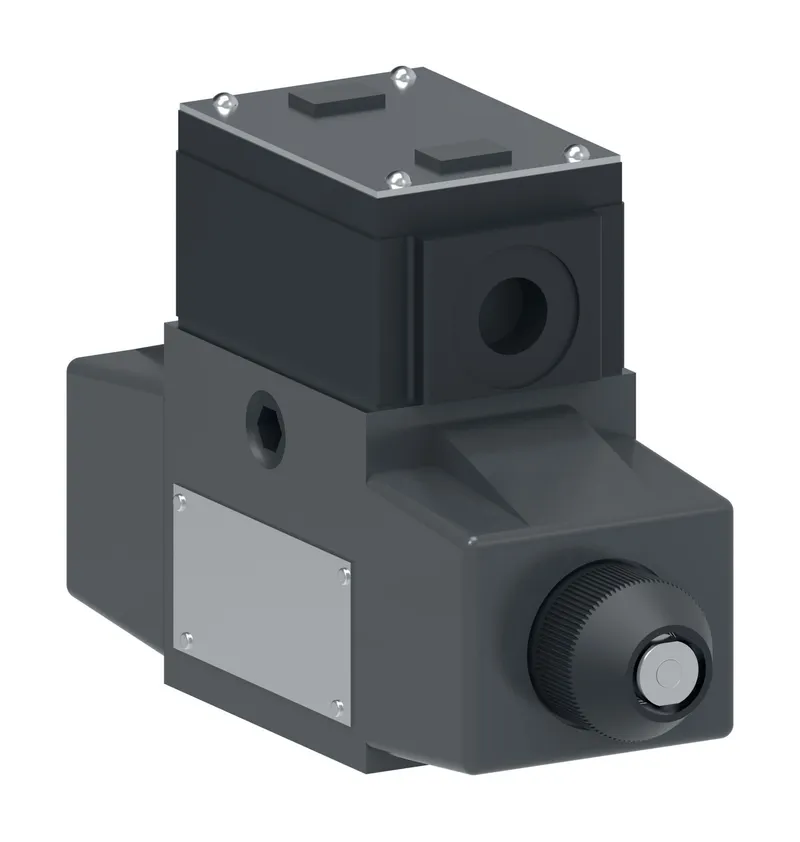

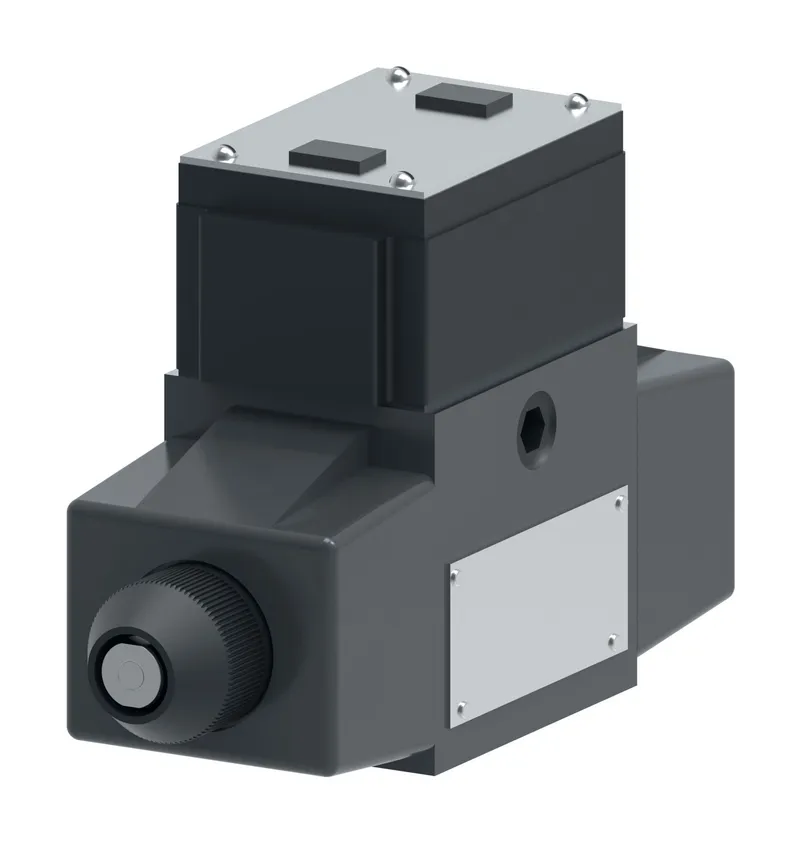

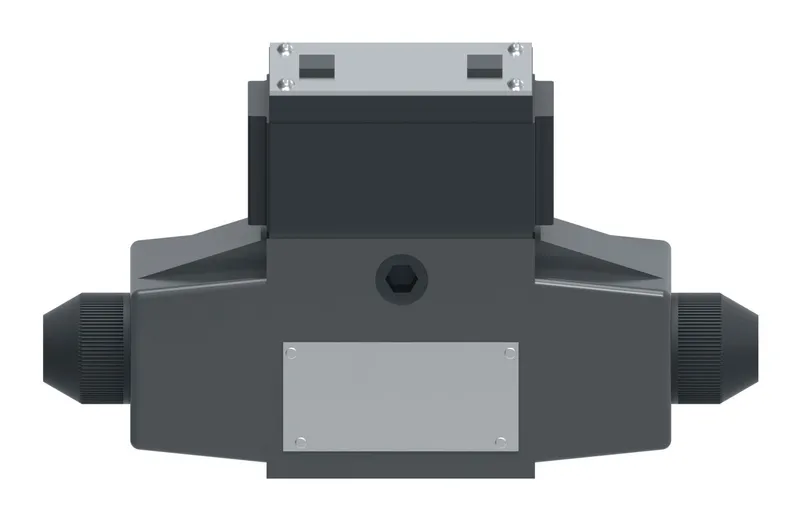

Danfoss DG4S4LW-018C-H-60-S324, DG4S4LW018CH60S324, manufacturer part number 02-394986. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series60 Series
Electrical ConnectionFlying lead coil wire housing
Energ Time50-80 ms
Flow rate upto GPM25.0
Flow rate upto LPM95.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightYes
InterfaceISO4401-05
Manual overrideNone
Model Code 1DG4S4LW018CH60S324
PerformanceStandard performance
Pressure rating BAR250
Pressure rating PSI3600
Product height in5.080
Product length in12.540
Product length mm318.516
Product width in2.580
Product width mm65.532
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresCSA approved
Spool Position MonitorNo
Spool TypeSpool 8
Spring ArrangementSpring centred, three position
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
