What is the Danfoss 02-393677?

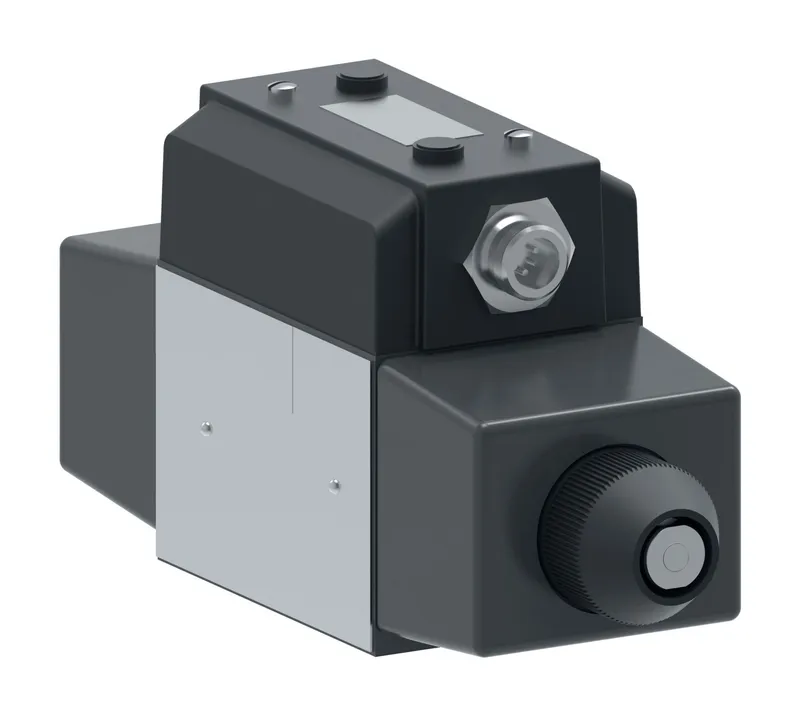

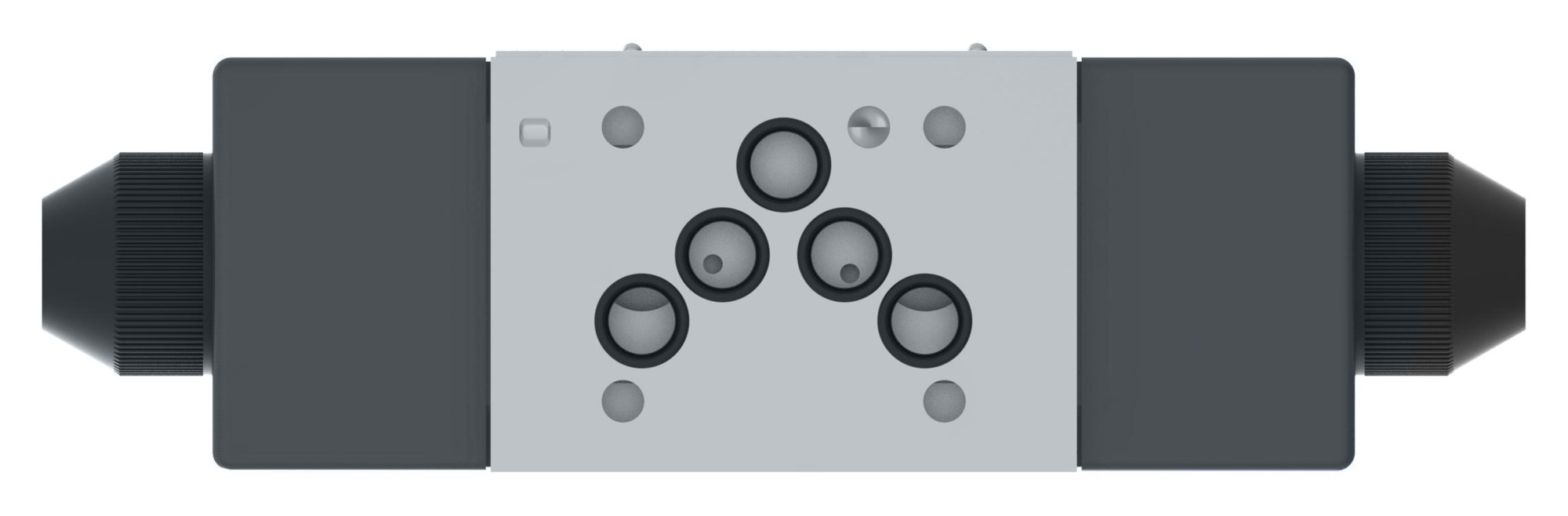

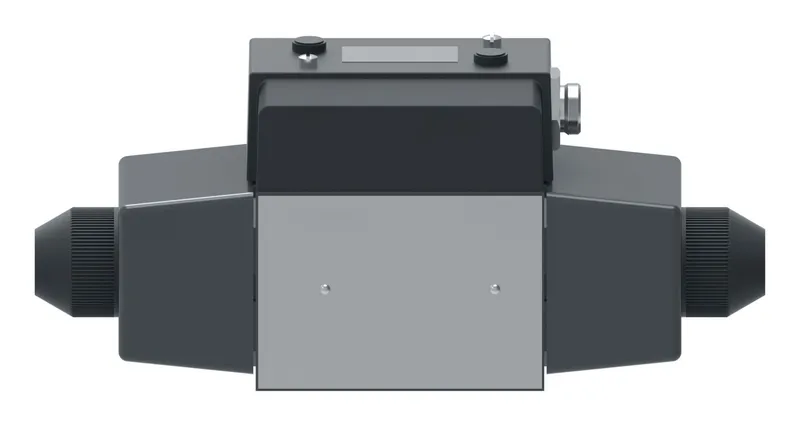

Danfoss PM4DG4S4LW-012N-H-61-S60 7, PM4DG4S4LW012NH61S607, manufacturer part number 02-393677. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design Series61 Series
Electrical Connection4-pin connector
Energ Time60 ms
Flow rate upto GPM25.0
Flow rate upto LPM95.0
Fluid Cleanliness20/18/15 micron
Fluid compatibilityPetroleum oils
Indicator LightYes
InterfaceISO4401-05
Manual overrideNone
Model Code 1PM4DG4S4LW012NH61S607
PerformanceStandard performance
Pressure rating BAR250
Pressure rating PSI3600
Product height in5.080
Product length in6.840
Product length mm173.736
Product width in2.580
Product width mm65.532
Seal typeBuna-N
Solenoid Energising IDStandard as per ANSI B93 9
Special featuresWired to automotive standard wiring scheme, terminal strip and push in lights
Spool Position MonitorNo
Spool TypeSpool 2
Spring ArrangementNo spring detented
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR70.0
Tank port rating PSI1000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C50
Working temp max F122
Working temp min C20
Working temp min F70
