Danfoss 02-393658

Industrial valve

MPN
02-393658
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-393658?

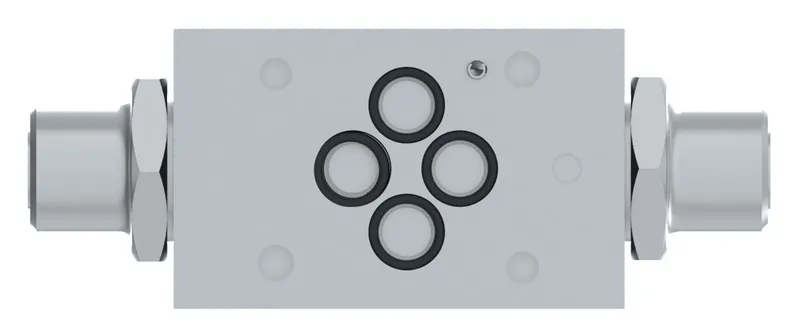

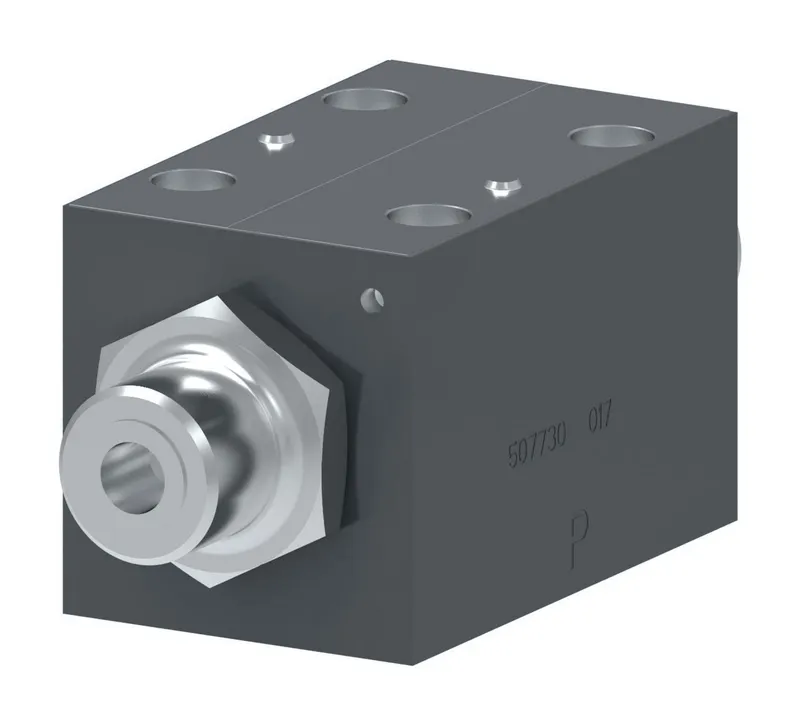

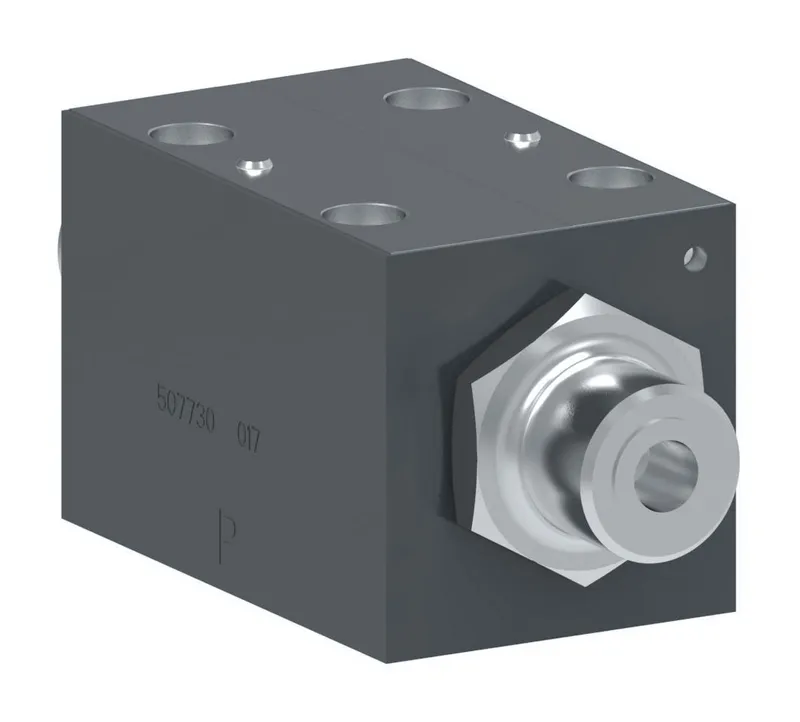

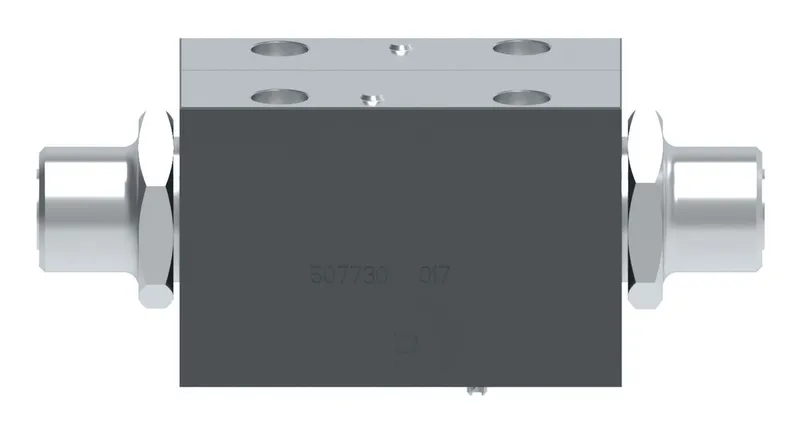

Danfoss DG3V-3-7C-7-S-60, DG3V37C7S60, manufacturer part number 02-393658. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeHydraulic operated
BrandVickers by Danfoss
Design Series60 Series
Flow rate upto GPM10.0
Flow rate upto LPM38.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
InterfaceISO4401-03
Model Code 1DG3V37C7S60
Pressure rating BAR350
Pressure rating PSI5000
Seal typeBuna-N
Spool TypeSpool 7
Spring ArrangementSpring centred
StageSingle stage
Tank port rating BAR210.0
Tank port rating PSI3000
Valve Mount TypeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4

02-393658: frequently asked questions

When can 02-393658 be shipped?

02-393658 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-393658 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-393658 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-393658, subject to availability and destination.
