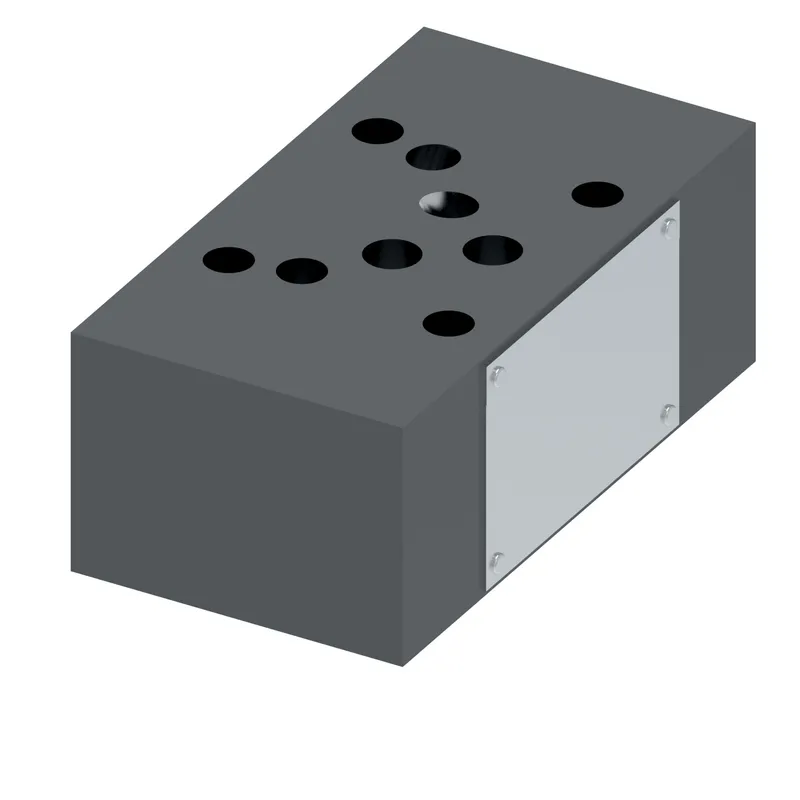

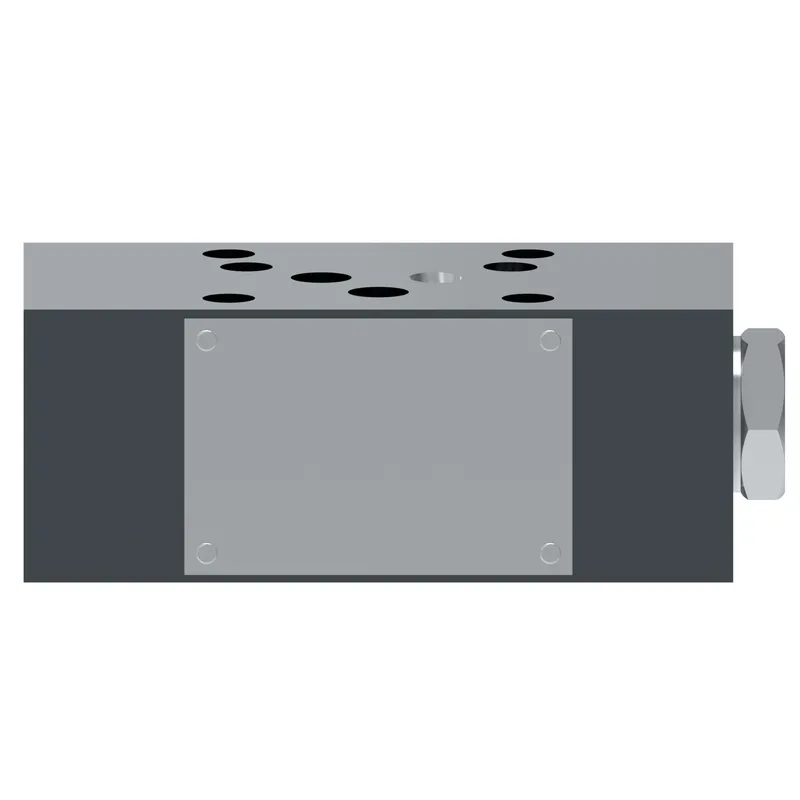

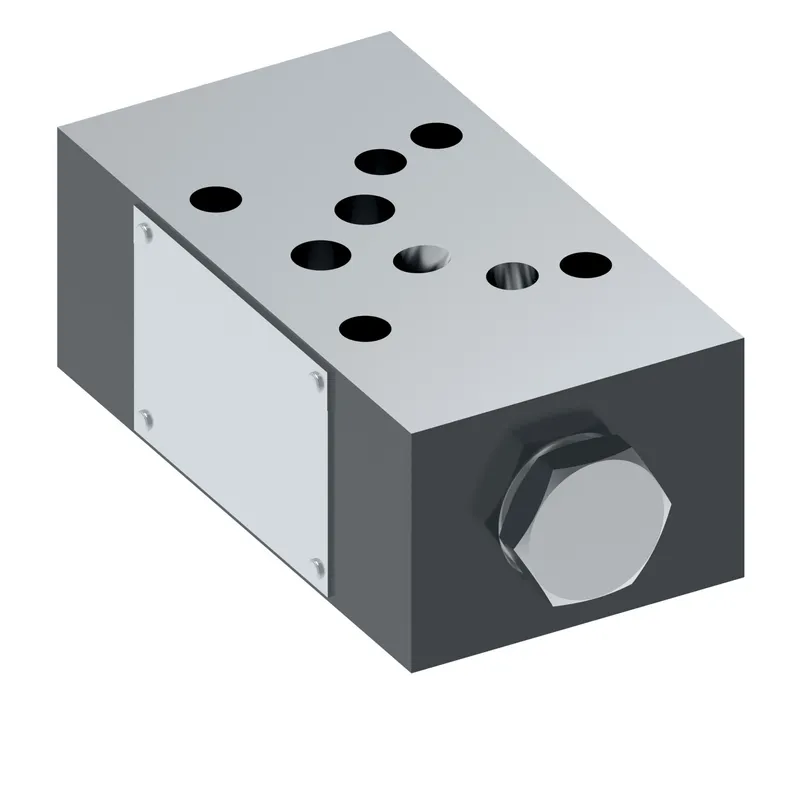

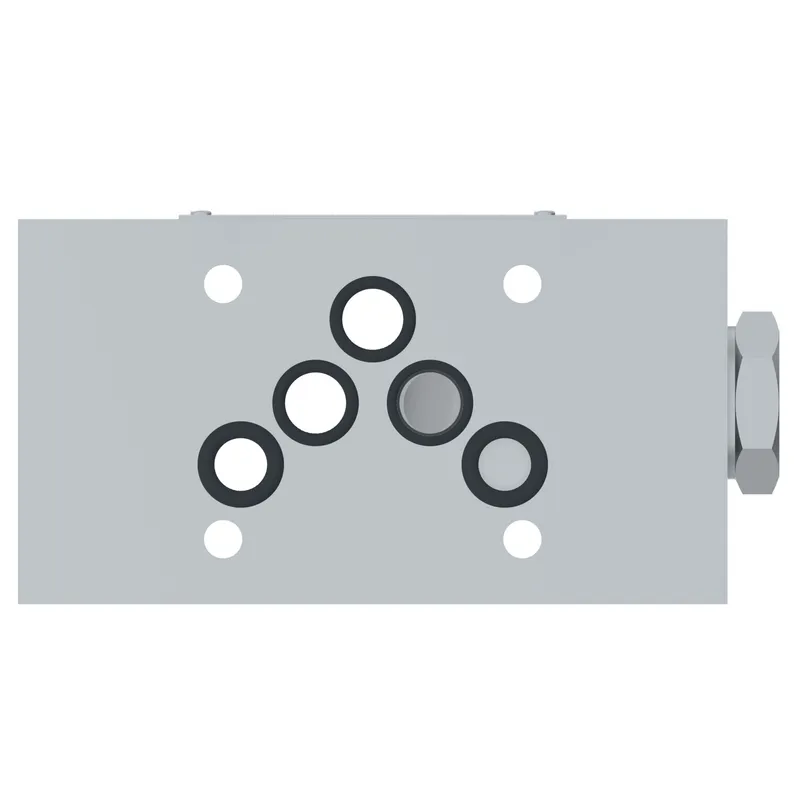

Danfoss 02-316282

DGMDC 5 Y BM 30, DGMDC5YBM30

MPN: 02-316282
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-316282?

Danfoss DGMDC 5 Y BM 30, DGMDC5YBM30, manufacturer part number 02-316282. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pressure operated
Brand	Vickers by Danfoss
Check location	Line B
Cracking pressure bar	2.50
Cracking pressure psi	35
Design Series	30 Series
Direction of flow	Towards actuator
Flow rate upto LPM	120
Flow rate upto USGPM	32.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Interface	ISO4401-05
Maximum pressure upto bar	315
Maximum pressure upto psi	4500
Model Code 1	DGMDC5YBM30
Performance	Standard
Port operated upon	B cylinder port
Product height in	1.970
Product height mm	50.038
Product length in	5.430
Product length mm	137.922
Product width in	2.820
Product width mm	71.628
Seal type	Viton
Special features	None
Valve Mount Type	Subplate/manifold mounted
Valve type	Direct check valve
Working temp max C	50
Working temp max F	120
Working temp min C	20
Working temp min F	70
