Danfoss 02-315631-4
Industrial vane pump
- MPN
- 02-315631-4
- Category
- Industrial vane pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 02-315631-4?

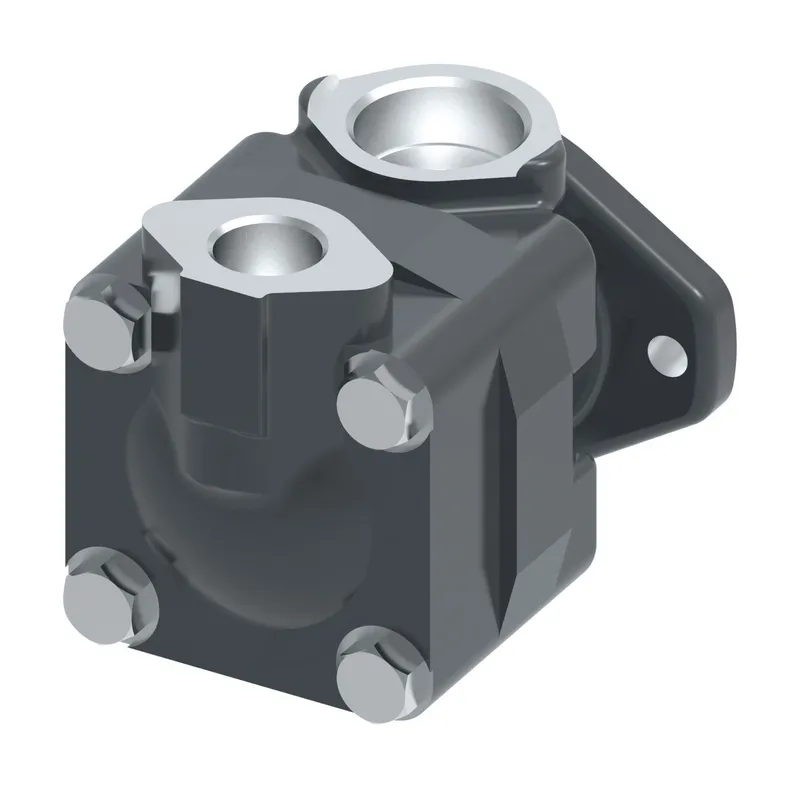

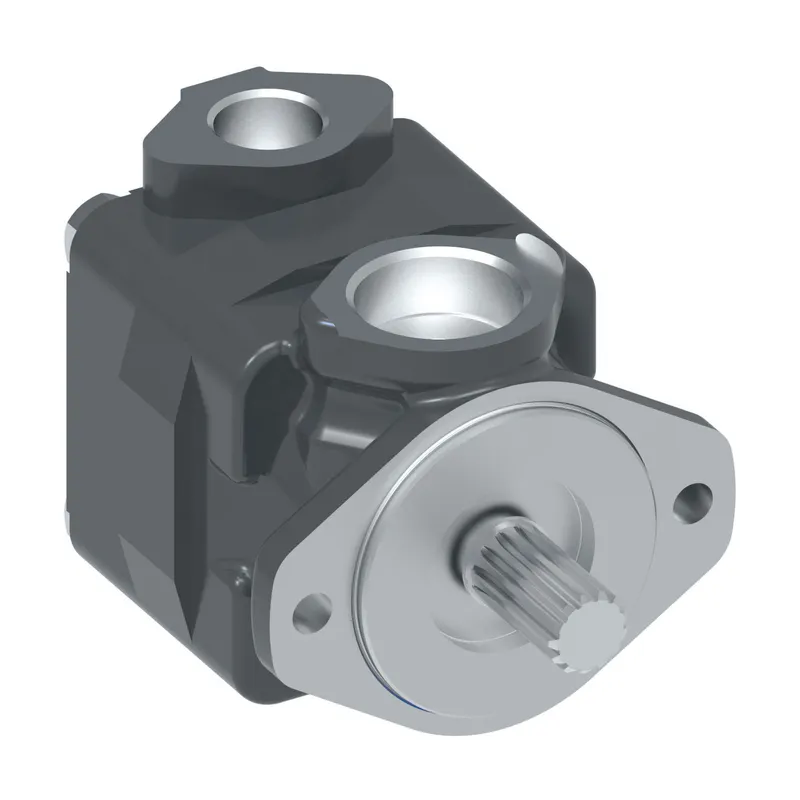

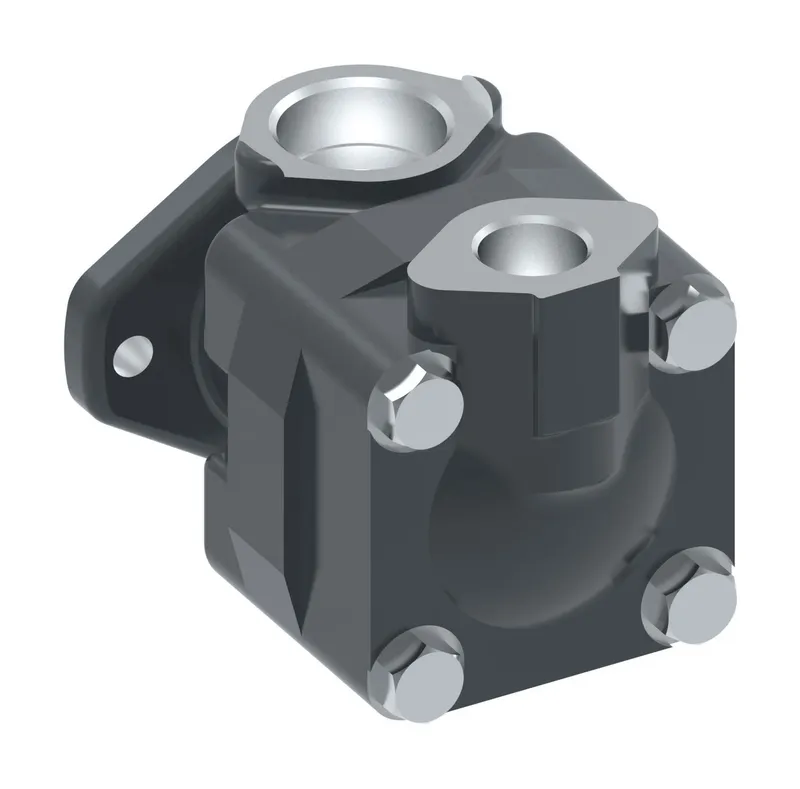

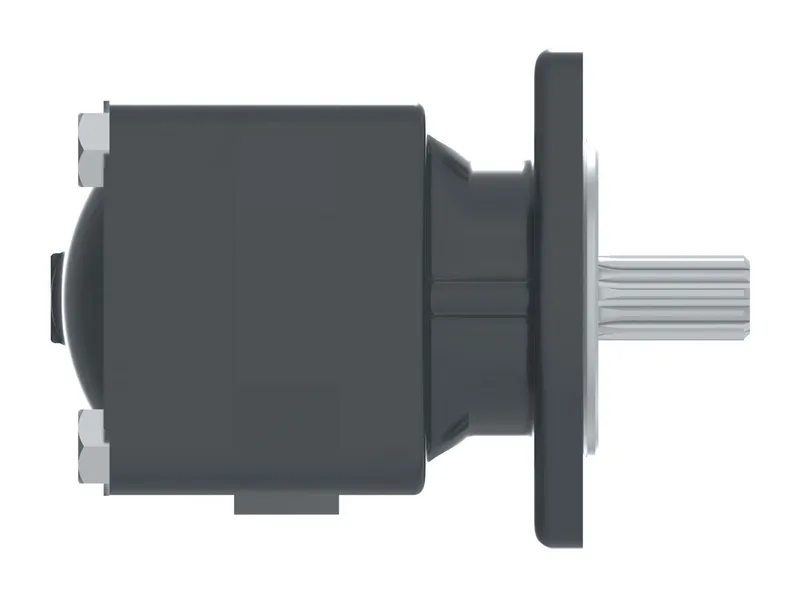

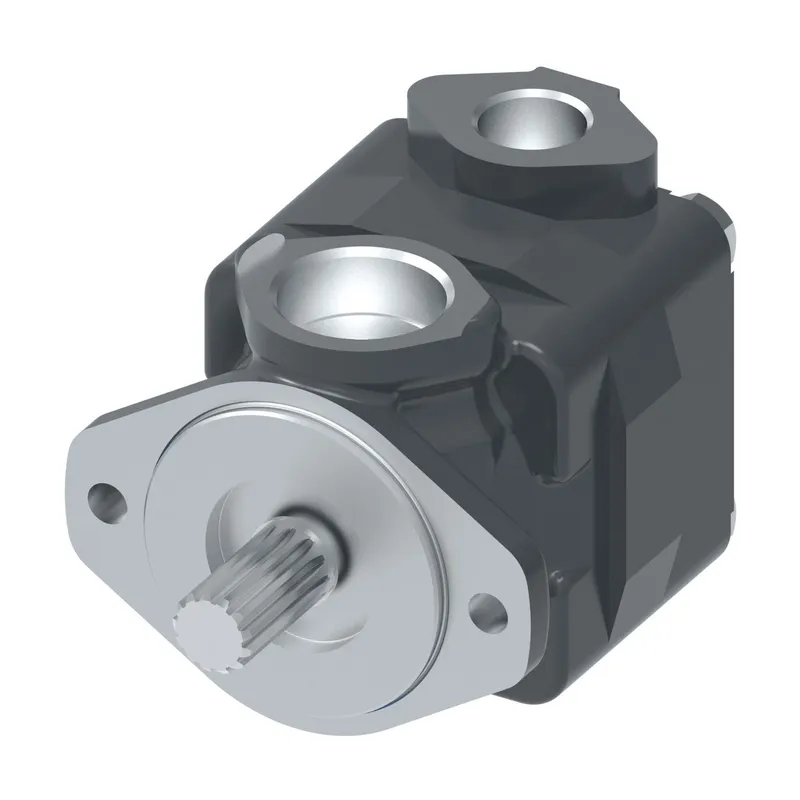

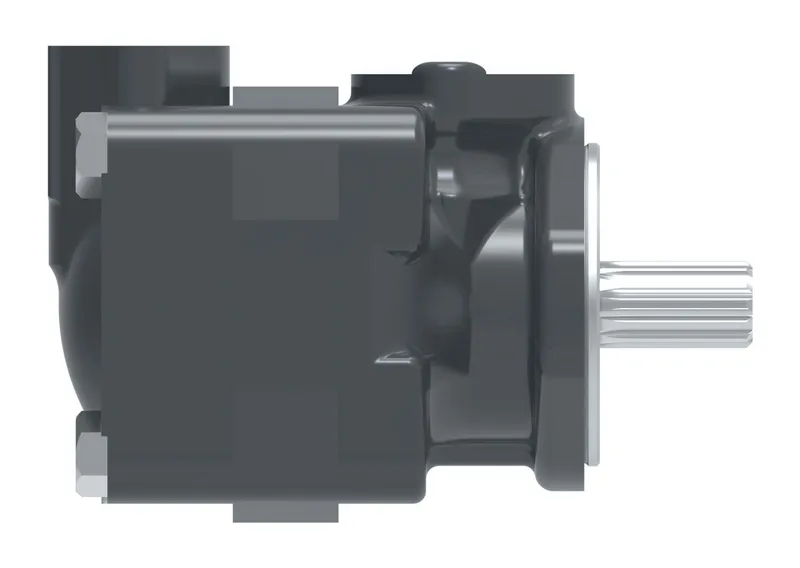

Danfoss V20F 1S7S 38D6K 22, V20F 1S7S 38D6K 22, manufacturer part number 02-315631-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| SEALS TYPE | STANDARD SEAL |
| PUMP TYPE | VANE PUMP |
| Series | SERIES DESIGNATION |
| Cover type | FLOW CONTROL VALVE COVER |
| Mounting type | 2 BOLT FLANGE SAE-A SIZE |
| INLET PORT TYPE | 1.625-12UN-2B THREAD |
| RING CAPACITY | 7 GPM |
| OUTLET PORT TYPE | COVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD |
| SHAFT SEAL AND BEARING | SINGLE LIP SEAL&SEALED BEARING |
| Shaft type | 11TEETH 16/32 FLAT ROOT SIDE FIT |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | V20 Single Pump |
| Model Code 1 | V20F 1S7S 38D6K 22 |
02-315631-4: frequently asked questions
When can 02-315631-4 be shipped?
02-315631-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-315631-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-315631-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-315631-4, subject to availability and destination.
