Danfoss 02-316317

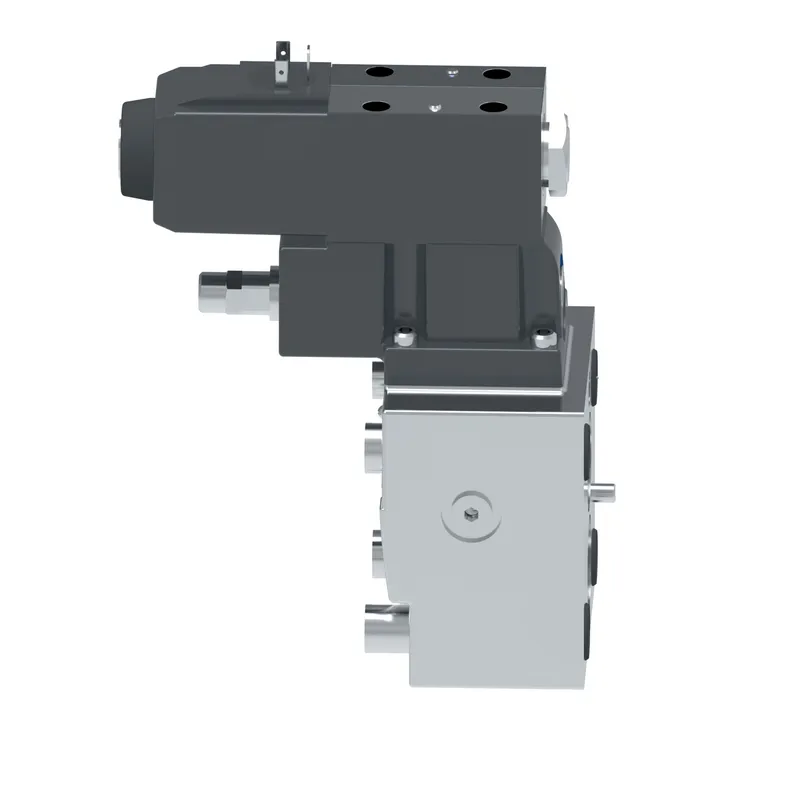

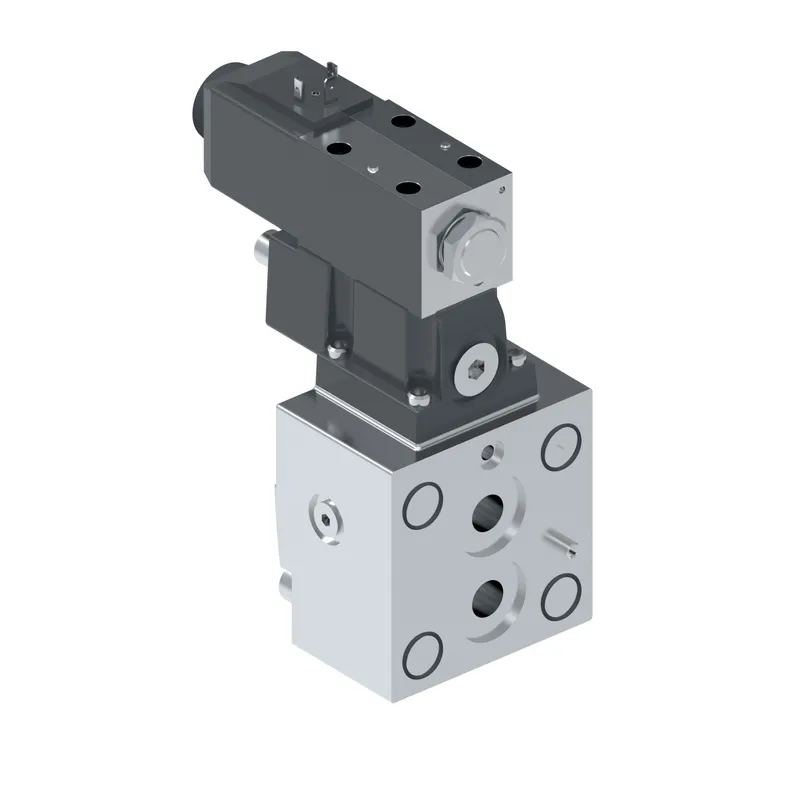

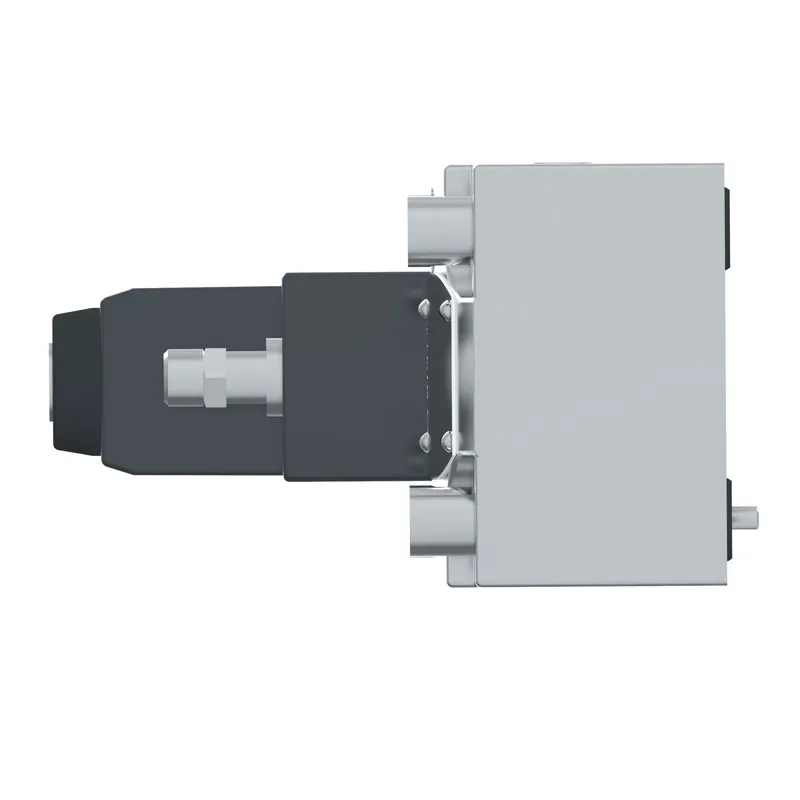

CG5 H060A FV M U H5 100, CG5H060AFVMUH5100

MPN: 02-316317
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-316317?

Danfoss CG5 H060A FV M U H5 100, CG5H060AFVMUH5100, manufacturer part number 02-316317. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	100-210 bar (1500-3000 psi)
Adjustment type	Wrench
Brand	Vickers by Danfoss
Coil voltage	24 VDC
Design Series	100 Series
Drain	Internal
Electrical connection	ISO4400 (Din 43650) Connector
Flow rate lpm	340.0
Flow rate USGPM	90.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Gauge port thread	0.4375-20 UNF-2B
Interface	1.0625-12 UF-2B
Leakage	Standard
Manual override	Plain
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code	CG5H060AFVMUH5100
Performance	Standard
Product height in	9.650
Product height mm	245.110
Product length in	6.160
Product length mm	156.464
Product width in	2.810
Product width mm	71.374
Remote control	Yes
Seal material	Nitrile
Size	Size 06
Special feature	None
Spring Arrangement	Spring offset
Stage	Two stage
Tank pressure bar	100
Tank pressure PSI	1450
Valve Mount Type	Subplate mounted
Valve type	Pilot operated relief valve
Working temperature max C	68
Working temperature max F	155
Working temperature min C	-20
Working temperature min F	-4
