Home / Danfoss (Drives) / Cartridge valves / Danfoss 02-201367
Danfoss (Drives)

Danfoss 02-201367

MPN
02-201367
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-201367?

Danfoss CV6-10N-P-000-003-048-12, CV6-10-N-P-0-003-048-12, manufacturer part number 02-201367. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

BrandVickers by Danfoss
CavityC-10-2
Flow rate GPM11.80
Flow rate LPM45.000
Fluid compatibilityMIL-H-5606, SAE10, SAE20, etc
FunctionCheck Valve
HousingNo
Installation typeScrew-in Cartridge
Leakage0.3 cc/min
Model Code 1CV6-10-N-P-0-003-048-12
Number of housing ports2
Number of valve ports2
Operating temperature-40 C to 120 C (-40 to 248 F)
OperationDirect acting
Orifice size INCH0.030
Orifice size MM0.762
Pilot piston sealNo
Port typeCartridge Only
Pressure rating BAR210.00
Pressure rating PSI3000.00
Product height in1.000
Product height mm25.400
Product length in1.560
Product length mm39.624
Product width in1.000
Product width mm25.400 mm
Recommended filtration level18/13
Seal typeBuna-N
StylePoppet

02-201367: frequently asked questions

When can 02-201367 be shipped?

02-201367 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-201367 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-201367 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-201367, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 02-201331 – DPS2-20V-P-F-0-40 DIFF PRESS SENSING CRT, DPS2-20-V-P-F-0-040
Danfoss
02-201331

DPS2-20V-P-F-0-40 DIFF PRESS SENSING CRT, DPS2-20-V-P-F-0-040

Danfoss 02-201365 – FAR1-10-S-0-1.00, FAR1-10-S-0-1.0
Danfoss
02-201365

FAR1-10-S-0-1.00, FAR1-10-S-0-1.0

Danfoss 02-201367M – CV610NP00000304802 CHECKCART POPPET TYPE, CV6-10-N-P-0-003-048-12
Danfoss
02-201367M

CV610NP00000304802 CHECKCART POPPET TYPE, CV6-10-N-P-0-003-048-12

Danfoss 02-201368M – CV610NP00000308002 CHECKCART POPPET TYPE, CV6-10-N-P-0-003-080-02
Danfoss
02-201368M

CV610NP00000308002 CHECKCART POPPET TYPE, CV6-10-N-P-0-003-080-02

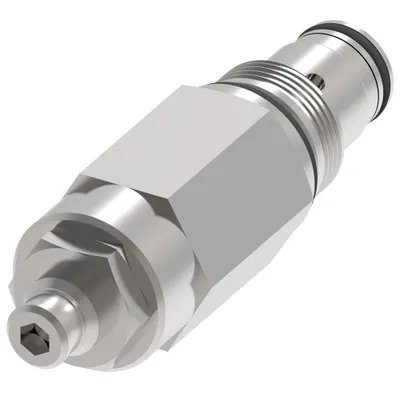

Danfoss 02-201369 – FAR1-12-S-0-9, FAR1-12-S-0-9.0
