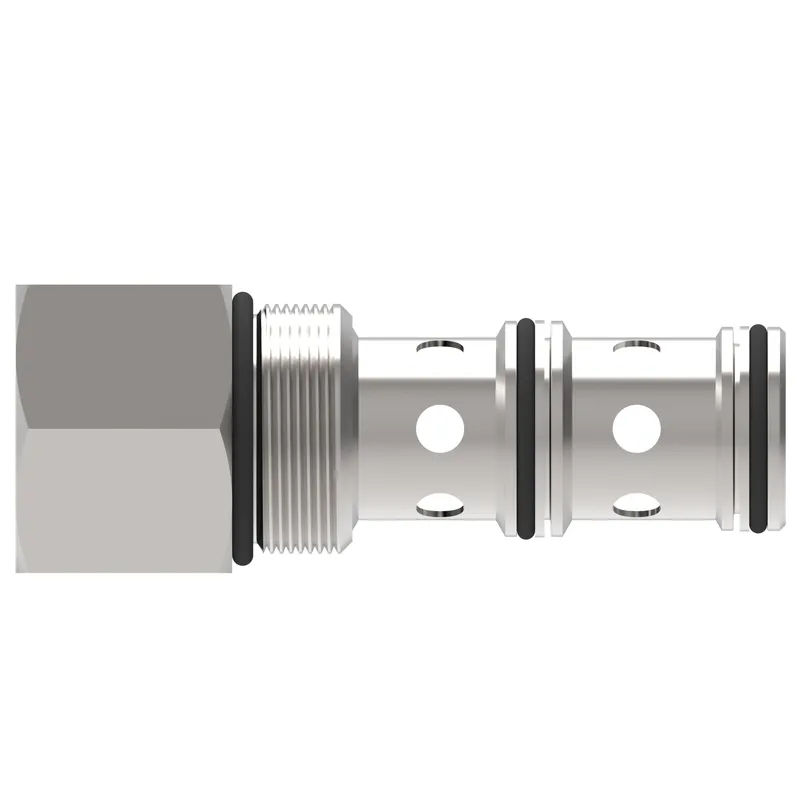

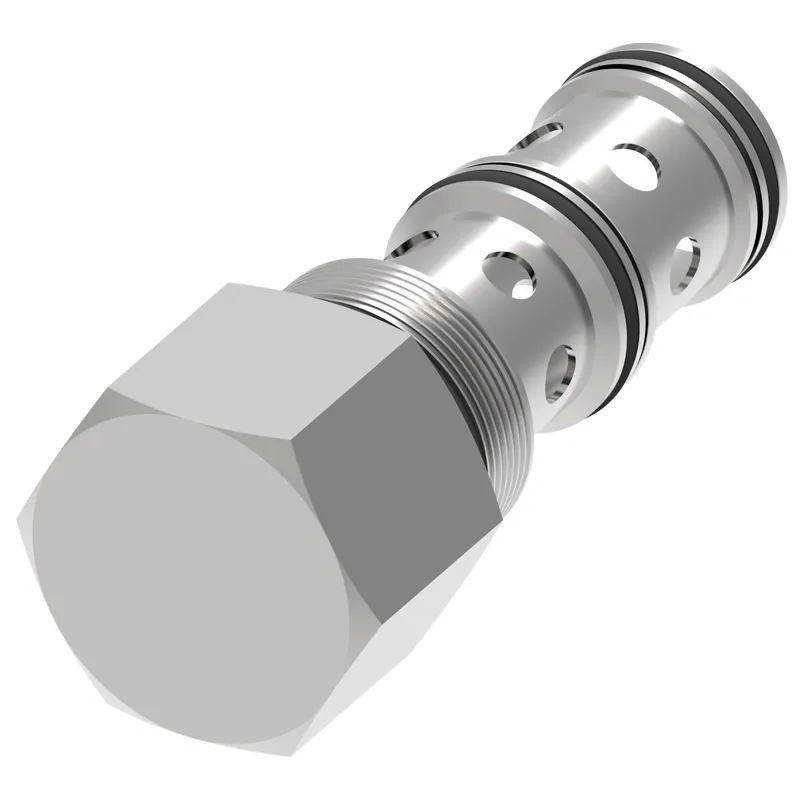

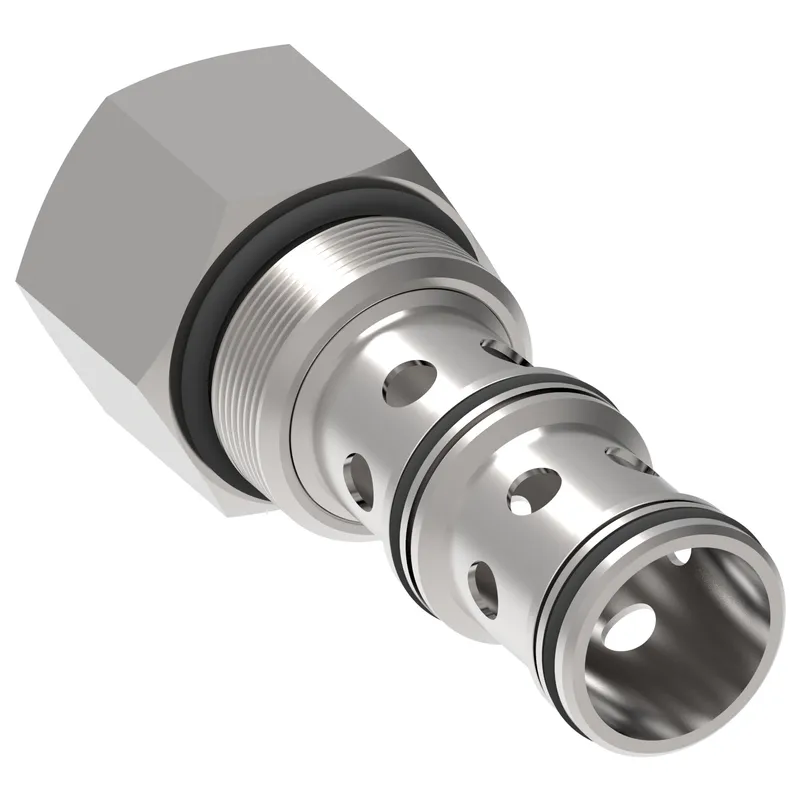

Danfoss 02-165485

PFR1-16-F-0-/6.00, PFR1-16-F-0-6.0

MPN: 02-165485
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165485?

Danfoss PFR1-16-F-0-/6.00, PFR1-16-F-0-6.0, manufacturer part number 02-165485. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-16-3
Factory set flow rate GPM	6.000
Factory set flow rate LPM	23.00
Flow rate GPM	40.000
Flow rate LPM	151.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Priority Flow Regulator Fixed type
Housing	No
Installation type	Screw-in Cartridge
Maximum flow rate LPM	114.00
Minimum flow rate GPM	3.000
Minimum flow rate LPM	11.00
Model Code 1	PFR1-16-F-0-6.0
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port type	Cartridge Only
Pressure rating BAR	210.00
Pressure rating PSI	3000.00
Product height in	1.500
Product height mm	38.100
Product length in	3.870
Product length mm	98.298
Product width in	1.500
Product width mm	38.100 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	108-122 Nm
Torque steel cavity	139-149 Nm
