Danfoss 02-165489

Cartridge valve

MPN: 02-165489
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-165489?

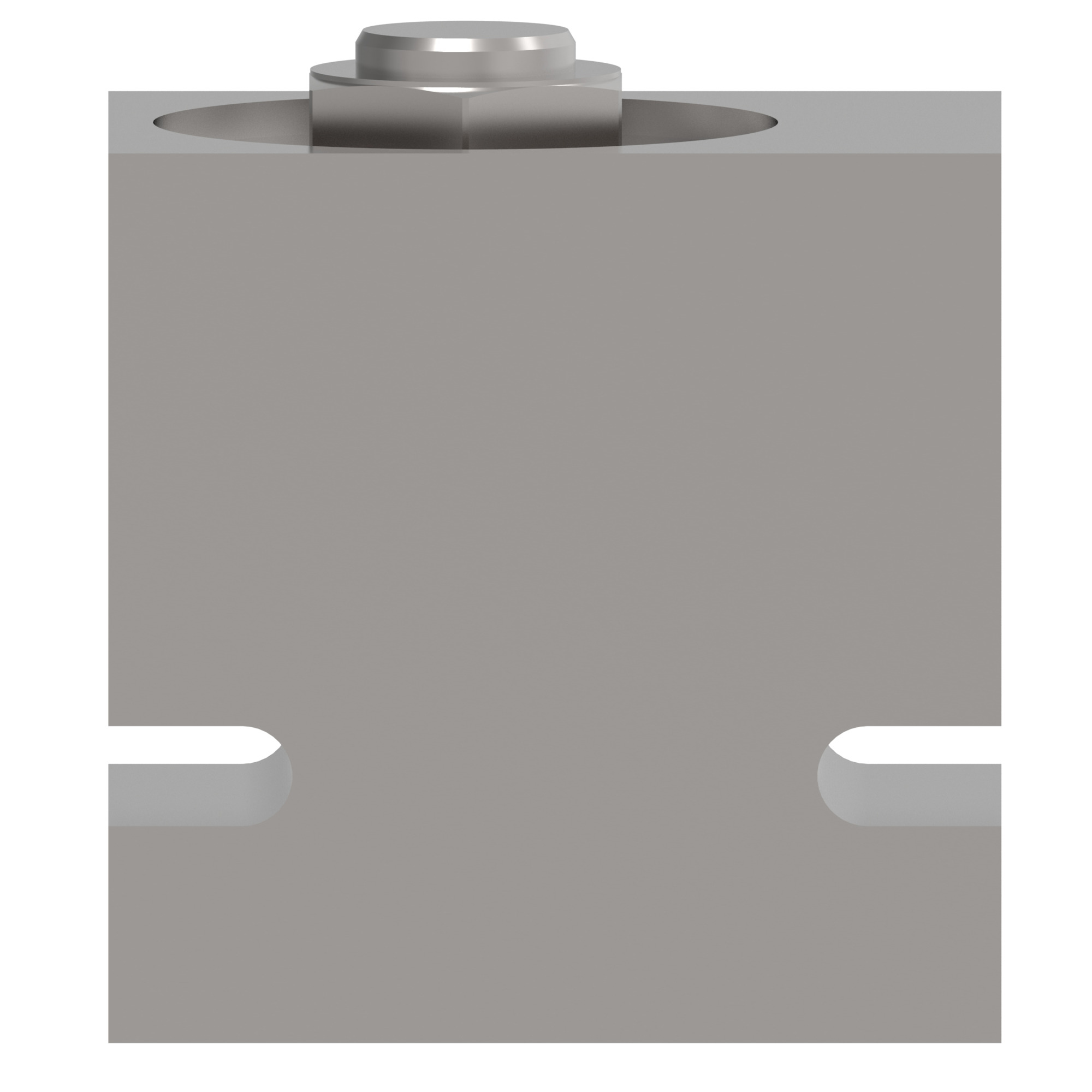

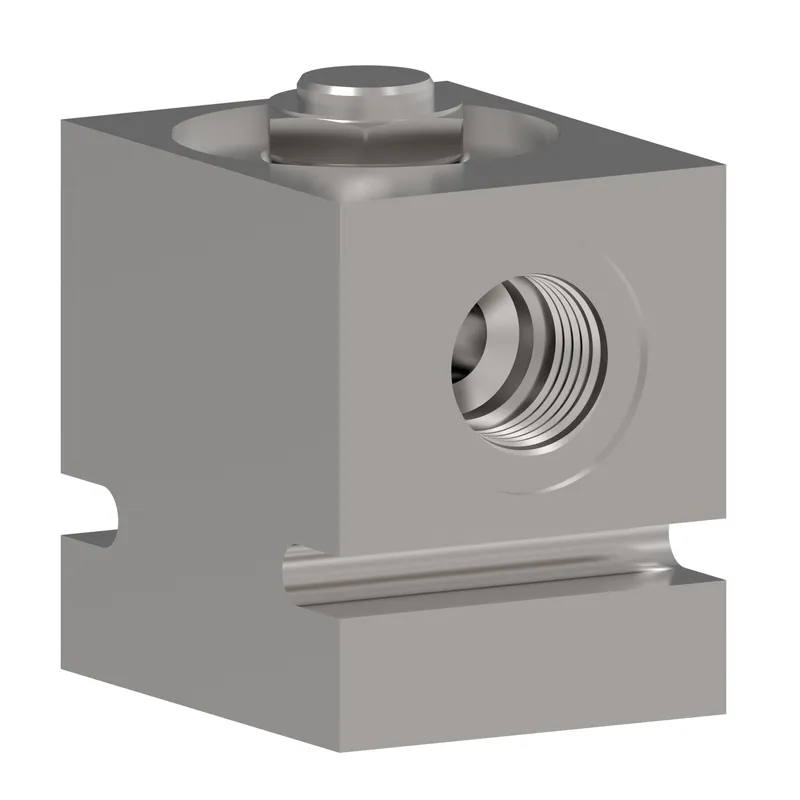

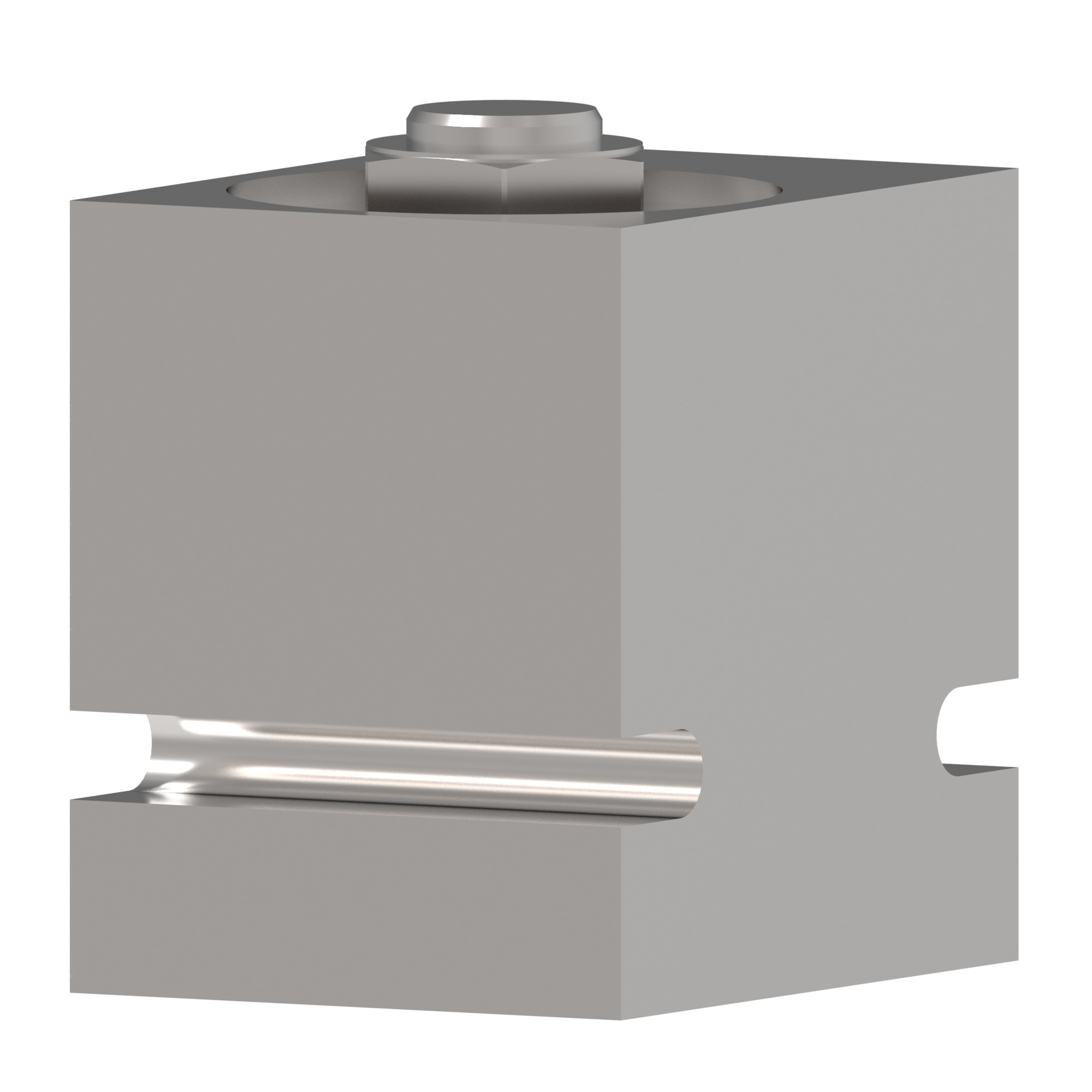

Danfoss VF11-10N-F-A6T-3.00-00-A, VF11-10-F-A-6T-3.0, manufacturer part number 02-165489. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Fixed Orifice
Brand	Vickers by Danfoss
Cavity	C-10-2
Factory set flow rate GPM	3.000
Factory set flow rate LPM	11.00
Flow rate GPM	6.000
Flow rate LPM	23.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Flow Control
Housing	Yes
Housing material	Aluminum
Installation type	Line Mounted
Leakage	164 cc/min
Maximum flow rate LPM	23.00
Minimum flow rate GPM	1.000
Minimum flow rate LPM	2.00
Model Code 1	VF11-10-F-A-6T-3.0
Number of housing ports	2
Number of valve ports	2
Operating temperature	-40 C to 120 C (-40 to 248 F)
Port size	3/8"
Port type	SAE
Pressure rating BAR	350.00
Pressure rating PSI	5000.00
Product height in	4.130
Product height mm	104.902
Product length in	2.500
Product length mm	63.500
Product width in	1.750
Product width mm	44.450 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spool seal	No
Style	Spool
Torque alu cavity	47-54 Nm
Torque steel cavity	68-75 Nm

02-165489: frequently asked questions

When can 02-165489 be shipped?

02-165489 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-165489 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-165489 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-165489, subject to availability and destination.
